EC80D Volvo excavator specs & Dimensions (2012 - 2014)

Volvo EC80D is a Crawler Excavator manufactured from 2012 to 2014, with a weight of 8.3 tons. It features a track width of 450 mm,…

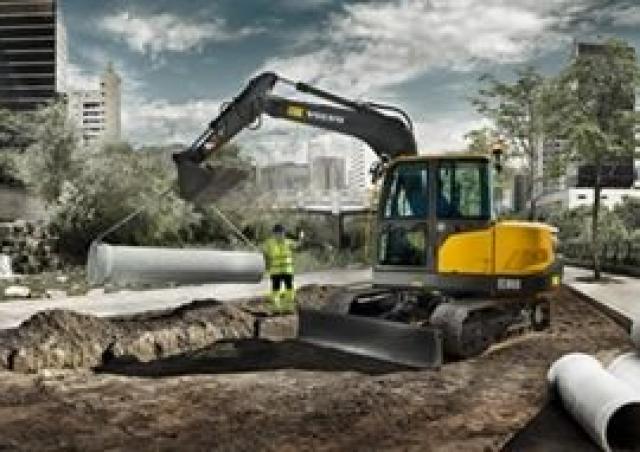

Volvo EC80D is a Crawler Excavator manufactured from 2012 to 2014, with a weight of 8.3 tons. It features a track width of 450 mm, a transport length of 6.165 meters, a transport width of 2.3 meters, and a transport height of 2.655 meters. The excavator has a tear-out force of 55 kN, a dredging depth of 4.1 meters, and a maximum horizontal reach of 6.42 meters. The bucket width is 0.83 meters, with a capacity ranging from 0.31 to 0.34 cubic meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, and both hydraulic and mechanical quick hitches.

Crawler Excavators Volvo EC80D

Visit Volvo live at

Technical specs - EC80D Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.3 t
Transport length
6.165 m
Transport width
2.3 m
Transport height
2.655 m
Bucket capacity
0.34 m³
Bucket capacity min.
0.31 m³
Bucket capacity max.
0.34 m³
Track width
450 mm
Max. Reach horizontal
6.42 m
Dredging depth
4.1 m
Tear-out force
55 kN
Bucket width
0.83 m
Engine manuf.
Volvo
Engine type
D3.4A
Engine power
44.4 kW
Displacement
3.3 l
Revolutions at max torque
1000 rpm
Max. torque
243 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
Stage II

More technical details, like: undercarriage, boom, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Volvo EC80D FAQ

When was the Volvo EC80D manufactured?

The Volvo EC80D was manufactured from 2012 to 2014.

How much does the Volvo EC80D weigh?

The Volvo EC80D weighs 8.3 tons.

What are the transport dimensions of the Volvo EC80D crawler excavator?

The Volvo EC80D has a transport length of 6.17 meters, a transport width of 2.3 meters, and a transport height of 2.66 meters.

What is the track width of the Volvo EC80D's undercarriage?

The Volvo EC80D has a track width of 450 mm.

What are the excavation performance specifications of the Volvo EC80D?

The Volvo EC80D has a dredging depth of 4.1 meters and a maximum horizontal reach of 6.42 meters.

What is the power rating of the Volvo EC80D?

The source data does not provide power rating information for the Volvo EC80D.

What are the specifications of the bucket on the Volvo EC80D crawler excavator?

The bucket of the Volvo EC80D has a capacity ranging from 0.31 to 0.34 cubic meters, with a width of 0.83 meters.

How much is a Volvo EC80D Crawler excavator (2012u20132014) worth?

The residual value of the Volvo EC80D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
