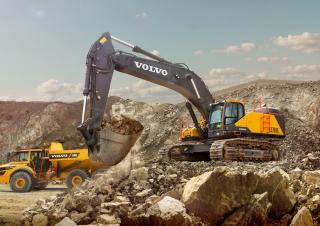

EC750E Volvo excavator specs & Dimensions (2016 - 2018)

Superior digging performance

Get the job done in even the most demanding conditions with the EC750E’s outstanding digging force. Powered by Volvo’s advanced electro-hydraulic technology, the EC750E digs, swings and loads more materials in any application.

The right mode for the job

Achieve optimum fuel efficiency and machine performance with Volvo’s unique, integrated work mode system. Maximizing efficiency, the system allows operators to choose the best work mode for the task at hand - select from I (Idle), F (Fine), G (General) and H (Heavy).

Designed for distance

Delivering more power, better productivity and ease of moving around your jobsite, the machine’s high system pressure and durable track ensure impressive tractive force when climbing gradients and travelling over unstable ground. Experience superior access to hard-to-reach areas of your job site.

Built to work for you

Always available and ready for any application, the durable EC750E is designed for maximum uptime. The machine’s heavy-duty design, reliable and wear-resistant components, and easy service access ensure you will get the job done quickly and without delay.

Proven reliability

Count on a solid, reliable EC750E with Volvo’s high-quality components, designed to work in perfect harmony with the machine. Volvo’s commitment to rigorous testing in its development process ensures the production of well-engineered components, purpose-built for the job, and proven to be reliable in the toughest applications.

Durable by design

Achieve non-stop production with the durable and reliable EC750E. Built with protected components, including a strong frame structure, the machine can be relied on for longevity and sustained uptime in demanding applications. A built-in, heavy-duty plate is featured for additional protection to the underside of the machine.

Boom and Arm

Maximize machine uptime and performance for any job application with the reinforced heavy duty boom and arm built from high strength tensile steel. Designed for maximum reliability in even the most severe conditions, steel strips are welded under the arm for added protection and various boom and arm configurations are available to suit any bucket size or application.

Genuinely Volvo

Volvo’s attachments have been purpose-built to work in perfect coordination with Volvo machines, forming one solid, reliable unit. With functions and properties ideally matched, Volvo attachments are an integrated part of the excavator for which they’re intended – delivering maximum productivity.

Robust attachments to match

With a Volvo excavator crawler and a Volvo attachment you simply get more done. Thanks to Volvo’s wide range of attachments, including the durable and hardworking general purpose, heavy duty and extreme-duty buckets, you can get the most out of your machine. Easily tailor the EC750E exactly for the applications and the conditions of your worksite.

Hydraulic breaker

The EC750E can be equipped with a Volvo hydraulic breaker built to break even most demanding materials. With consistent power and high breaking force you’ll benefit from maximum impact and durability. Set your Volvo breaker at the right frequency to suit your application needs.

Total control

For a more productive and fuel efficient operation, the new electro-hydraulic system puts superior control in the operator’s hands. Utilizing intelligent technology, the easy-to-use system controls on-demand flow and reduces internal losses in the hydraulic circuit.

Outstanding fuel efficiency

Achieve outstanding fuel efficiency with Volvo’s unique ECO Mode. ECO Mode optimizes the hydraulic system to reduce loss of flow and pressure – resulting in improved fuel efficiency without any loss of performance in most operating conditions.

Get more done in less time

Cut cycle times to a minimum and increase profitability with the newly developed fully electro-hydraulic system. The Volvo hydraulic system in combination with the high power and massive torque from the Volvo D16 engine gets more done in less time. Offering faster cycle times, the EC750E ensures greater control, reduces operation costs and maximizes uptime.

Engine

The latest generation Volvo engine Tier 4f (Stage IV) emissions compliant, designed fully meets the demands of the latest emissions regulations. Featuring Volvo Advanced Combustion Technology (V-ACT), it is designed to deliver superior performance and fuel efficiency. The engine uses precise, high-pressure fuel injectors, turbo charger and air-to-air intercooler, and electronic engine controls to optimize machine performance. Air Filter: 3-stage with precleaner. Automatic Idling System: Reduces engine speed to idle when the levers and pedals are not activated resulting in less fuel consumption and low cab noise levels.

Equipment

Turbocharged, 4 stroke diesel engine with water cooling, direct injection and charged air cooler that meets Tier 4f (EU Stage IV) requirements. Air filter with indicator. Air intake heater. Cyclone pre-cleaner. Electric engine shut-off. Fuel filter and water separator. Alternator, 80 A. Fuel filter pump, 100 lpm (26.4gpm) with automatic shut-off.

Advanced features

Advanced mode control system. Self-diagnostic system. Electric system. Machine status indication. Engine speed sensing power control. Emergency engine stop switch. Automatic idling system. Short cut switch. Safety stop/start function. Adjustable 8inch LCD color monitor. Master electrical disconnect switch. Engine restart prevention circuit. High-capacity halogen lights. Cab-mounted 2. Frame-mounted 2. Boom-mounted 4. Batteries, 2 x 12 V / 210 Ah. Battery disconnect switch. Travel alarm.

Optional Equipment

Block heater: 120 V, 240 V. Dual stage oil bath pre-cleaner. Diesel coolant heater, 10 kW, 12kW. Water separator with heater. Auto engine shutdown. Extra work lights: Halogen/LED. Cab-mounted 3 (front 2, rear 1). Boom-mounted 4. Frame-mounted 2. Counterweight-mounted 1. Anti-theft system. Rotating warning beacon.

Attachment management system

The password protected attachment management system allows storage for up to 20 different attachments. The system allows the operator to pre-set hydraulic flow and pressure inside the cab through the monitor, which ensures the use of various attachments, for increased versatility.

Swing system

The swing system uses an axial piston motors, driving a planetary gearbox for maximum torque. An automatic holding brake and anti-rebound valve are standard.

Travel System

Each track is powered by an automatic two-speed shift travel motor. The track brakes are multi-disc, spring-applied and hydraulic released. The travel motor, brake and planetary gears are well protected within the track frame.

Hydraulic Features

Overload warning device. Automatic sensing hydraulic system. Summation system. Boom priority. Arm priority. Swing priority. ECO mode fuel saving technology. Boom and arm regeneration valves. Swing anti-rebound valves. Boom and arm holding valves. Multi-stage filtering system. Cylinder cushioning. Cylinder contamination seals. Auxiliary hydraulic valve. Automatic two-speed travel motors. Hydraulic oil, ISO VG 46. Boom float function without HRV.

Hydraulic Components

Hose rupture valve: boom. Hose rupture valve: arm. Straight travel pedal. Bucket conflux. Boom float function with HRV. Hydraulic piping: Work tool management system (up to 20 programmable memories). Hammer & shear, 1 and 2 pump flow. Hammer & shear: variable flow and pressure pre-setting. Additional return filter. Slope & rotator. Grapple. Quick coupler piping. Hydraulic oil, ISO VG 32, 68. Hydraulic oil, biodegradable 46. Hydraulic hose for FOG. Volvo hydraulic quick coupler ECO FPL Eye 75t_C.

Maintenance Tools

Tool kit, daily maintenance. Tool kit, full scale. Special tool for retractable frame. Automatic lubrication system. Fire Suppression System.

Solid stability

Operators can work with confidence in challenging environments with outstanding stability in the EC750E. Operate adverse terrains in the well-balanced and solid machine, which features a wide track gauge, long track length, a retractable undercarriage, and an optimized counterweight.

Operator’s choice

Take on the most demanding working environments from the comfort of Volvo’s industry-leading cab. The low noise cab provides ample storage and leg room, 12 air-conditioner vents and adjustable seat, keeping the operator fresh, alert and focused – longer. Ergonomically positioned interfaces – including the joysticks, keypad and LCD monitor – and clear all-around visibility helps you share the strong, work-all-day feeling your machine has.

Cab

The operator’s cab has easy access via a wide door opening. The cab is supported on hydraulic dampening mounts to reduce shock and vibration levels. These along with sound absorbing material provide low noise levels. The cab has excellent all-round visibility. The front windshield can easily slide up into the ceiling, and the lower front glass can be removed and stored in the side door. Integrated air-conditioning and heating system: The pressurized and filtered cab air is supplied by an automatically-controlled fan. The air is distributed throughout the cab from 14 vents. Ergonomic operator’s seat: The adjustable seat and joystick console move independently to accommodate the operator. The seat has 12 different adjustments plus a seat belt for the operator’s comfort and safety.

Additional Features

Smoker kit (ashtray and lighter). Safety net for front window. Sunlight protection, roof (steel). Lower wiper with intermittent control. Cleaning air gun. Side view camera. Anti-vandalism kit. Specific key.

Robust protection

For added safety and durability, optional FOG (Falling Object Guard) and FOPS (Falling Object Protective Structure) certified cabs provide peace-of-mind for working in tough applications. The EC750E can also be fitted with a full length track guard for added protection.
