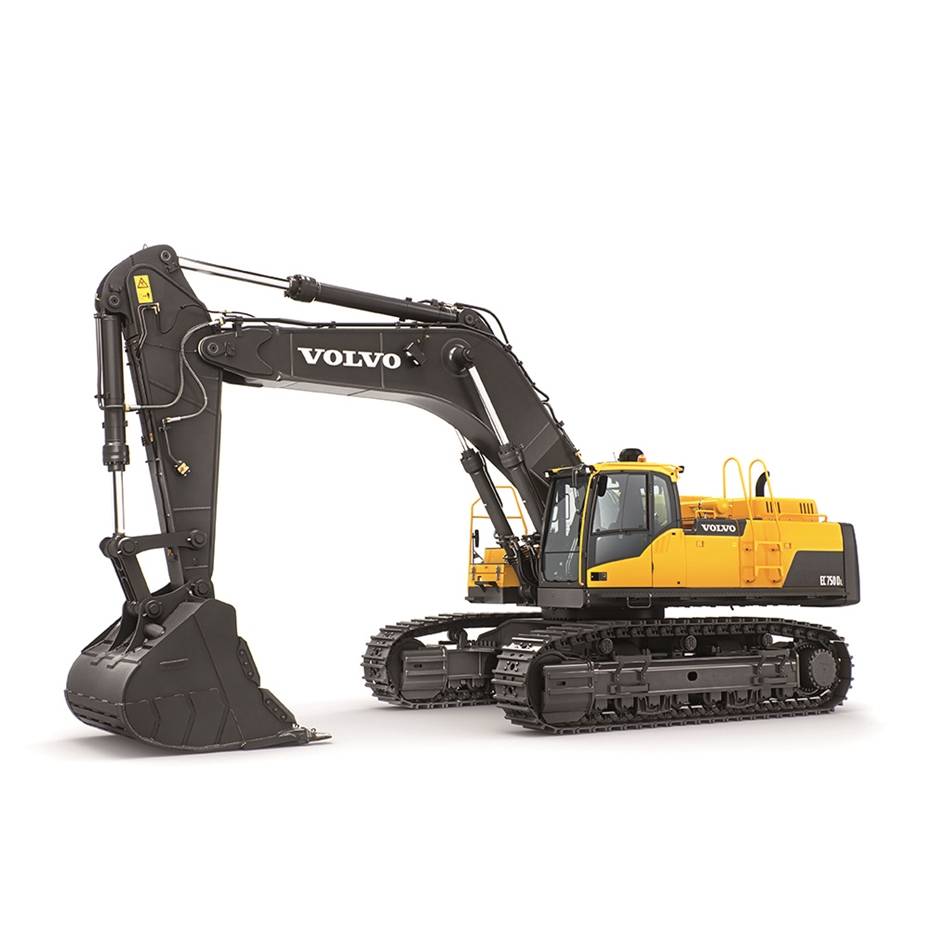

EC750D Volvo excavator specs & Dimensions (2019 - 2026)

Volvo EC750D is a crawler excavator manufactured since 2019, with a weight of 74.7 tons. It features a track width of 650 mm, a tr…

Volvo EC750D is a crawler excavator manufactured since 2019, with a weight of 74.7 tons. It features a track width of 650 mm, a transport length of 12.2 meters, a transport width of 4.29 meters, and a transport height of 4.8 meters. The excavator has a tear-out force of 314 kN, a dredging depth of 7.2 meters, and a maximum horizontal reach of 11.4 meters. Its bucket capacity is 5.16 cubic meters.

Crawler Excavators Volvo EC750D

Visit Volvo live at

Technical specs - EC750D Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
74.7 t
Transport length
12.2 m
Transport width
4.29 m
Transport height
4.8 m
Bucket capacity
5.16 m³
Track width
650 mm
Max. Reach horizontal
11.4 m
Dredging depth
7.2 m
Tear-out force
314 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D16E
Engine power
374 kW
Displacement
16.1 l
Revolutions at max torque
1800 rpm
Max. torque
2500/1340 Nm
No. of cylinders
6
Cylinder bore x stroke
144x165 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC750D FAQ

When was the Volvo EC750D manufactured?

The Volvo EC750D was first produced in 2019.

How much does the Volvo EC750D weigh?

The Volvo EC750D weighs 74.7 tonnes.

What are the transport dimensions of the Volvo EC750D crawler excavator?

The Volvo EC750D has a transport length of 12.2 meters, a transport width of 4.29 meters, and a transport height of 4.8 meters.

What is the track width of the Volvo EC750D's undercarriage?

The Volvo EC750D has a track width of 650 mm on its undercarriage.

What are the excavation performance specifications of the Volvo EC750D?

The Volvo EC750D has a dredging depth of 7.2 meters and a maximum horizontal reach of 11.4 meters.

What is the tear-out force of the Volvo EC750D?

The Volvo EC750D has a tear-out force of 314 kN.

What is the bucket capacity of the Volvo EC750D excavator?

The bucket capacity of the Volvo EC750D excavator is 5.16 cubic meters.

How much is a Volvo EC750D Crawler excavator (2019u20132025) worth?

The residual value of the Volvo EC750D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
