EC480EL Volvo excavator specs & Dimensions (2019 - 2023)

Volvo EC480EL is a crawler excavator manufactured since 2019, with a weight of 47.96 tons. It features a track width of 600 mm, a …

Volvo EC480EL is a crawler excavator manufactured since 2019, with a weight of 47.96 tons. It features a track width of 600 mm, a transport length of 11.69 meters, a transport width of 3.44 meters, and a transport height of 3.74 meters. The machine has a tear-out force of 285 kN, a dredging depth of 6.59 meters, and a maximum horizontal reach of 10.93 meters. It is equipped with air conditioning and a blade.

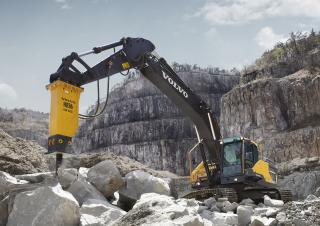

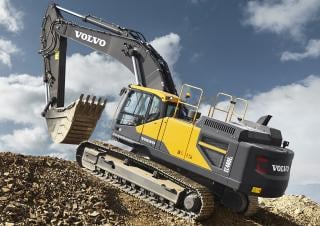

Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL
Crawler Excavators Volvo EC480EL

Visit Volvo live at

Technical specs - EC480EL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
47.96 t
Transport length
11.69 m
Transport width
3.44 m
Transport height
3.74 m
Track width
600 mm
Max. Reach horizontal
10.93 m
Dredging depth
6.59 m
Tear-out force
285 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D13J
Engine power
283 kW
Displacement
12.8 l
Revolutions at max torque
1800 rpm
Max. torque
1928/1350 Nm
No. of cylinders
6
Cylinder bore x stroke
131x158 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC480EL FAQ

When was the Volvo EC480EL manufactured?

The Volvo EC480EL was manufactured from 2019 to 2023.

How much does the Volvo EC480EL weigh?

The Volvo EC480EL weighs 47.96 tons.

What are the transport dimensions of the Volvo EC480EL?

The Volvo EC480EL has a transport length of 11.69 meters, a transport width of 3.44 meters, and a transport height of 3.74 meters.

What is the fuel consumption range of the Volvo EC480EL crawler excavator?

The fuel consumption range of the Volvo EC480EL crawler excavator is 26 to 52 liters per hour.

What is the track width of the Volvo EC480EL's undercarriage?

The Volvo EC480EL has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Volvo EC480EL?

The Volvo EC480EL has a dredging depth of 6.59 meters and a maximum horizontal reach of 10.93 meters.

What is the power rating of the Volvo EC480EL?

The source data does not provide power rating information for the Volvo EC480EL.

How much is a Volvo EC480EL Crawler excavator (2019u20132023) worth?

The residual value of the Volvo EC480EL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
