EC450 Volvo excavator specs & Dimensions (1998 - 1999)

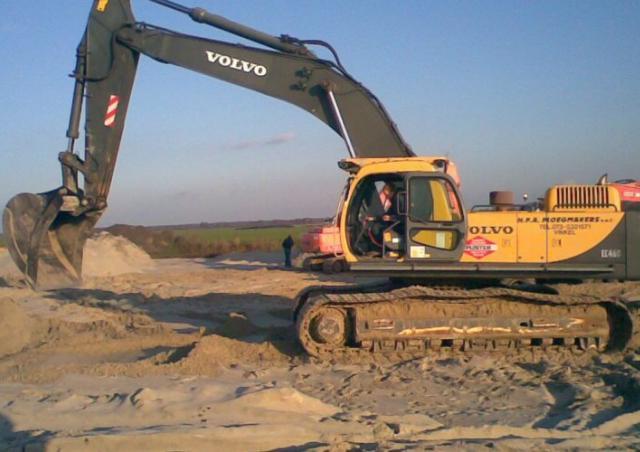

Volvo EC450 is a Crawler Excavator manufactured from 1998 to 1999. It has a weight of 46 tons and a track width of 700 mm. The tra…

Volvo EC450 is a Crawler Excavator manufactured from 1998 to 1999. It has a weight of 46 tons and a track width of 700 mm. The transport dimensions are 12.65 meters in length, 3.8 meters in width, and 3.55 meters in height. The machine features a tear-out force of 230 kN, a dredging depth of 8.4 meters, and a maximum horizontal reach of 13.1 meters. The bucket capacity is 3.36 cubic meters.

Crawler Excavators Volvo EC450

Visit Volvo live at

Technical specs - EC450 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
46 t
Transport length
12.65 m
Transport width
3.8 m
Transport height
3.55 m
Bucket capacity
3.36 m³
Track width
700 mm
Max. Reach horizontal
13.1 m
Dredging depth
8.4 m
Tear-out force
230 kN
Engine manuf.
Volvo
Engine type
TD 122 KAE
Engine power
237 kW
Displacement
11.98 l
Revolutions at max torque
1700 rpm
No. of cylinders
6
Cylinder bore x stroke
130.17x150 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC450 FAQ

When was the Volvo EC450 manufactured?

The Volvo EC450 was manufactured from 1998 to 1999.

How much does the Volvo EC450 weigh?

The Volvo EC450 weighs 46 tons.

What are the transport dimensions of the Volvo EC450 crawler excavator?

The Volvo EC450 has a transport length of 12.65 meters, a transport width of 3.8 meters, and a transport height of 3.55 meters.

What is the track width of the Volvo EC450's undercarriage?

The Volvo EC450 has a track width of 700 mm in its undercarriage.

What is the excavation performance of the Volvo EC450?

The Volvo EC450 has a dredging depth of 8.4 meters and a maximum horizontal reach of 13.1 meters.

What is the tear-out force of the Volvo EC450, and are there any power ratings available?

The Volvo EC450 has a tear-out force of 230 kN. The source data does not provide any power ratings for this machine.

What is the bucket capacity of the Volvo EC450 excavator?

The Volvo EC450 excavator has a bucket capacity of 3.36 cubic meters.

How much is a Volvo EC450 Crawler excavator (1998u20131999) worth?

The residual value of the Volvo EC450 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
