EC400F L Volvo excavator specs & Dimensions (2024 - 2026)

Weight: 41.55t – Transport length: 11.27m – Transport width: 3.64m – Transport height: 3.84m – Bucket capacity min.: 0.87m³ – Buck…

Weight: 41.55t – Transport length: 11.27m – Transport width: 3.64m – Transport height: 3.84m – Bucket capacity min.: 0.87m³ – Bucket capacity max.: 2.9m³

Check out detailed specifications, information and technical data for Volvo EC400F L excavator manufactured between 2024 - 2026. Get more in-depth insight with Volvo EC400F L digger specifications. See information, like: Weight: 41.55t – Transport length: 11.27m – Transport width: 3.64m – Transport height: 3.84m – Bucket capacity min.: 0.87m³ – Bucket capacity max.: 2.9m³ and more.

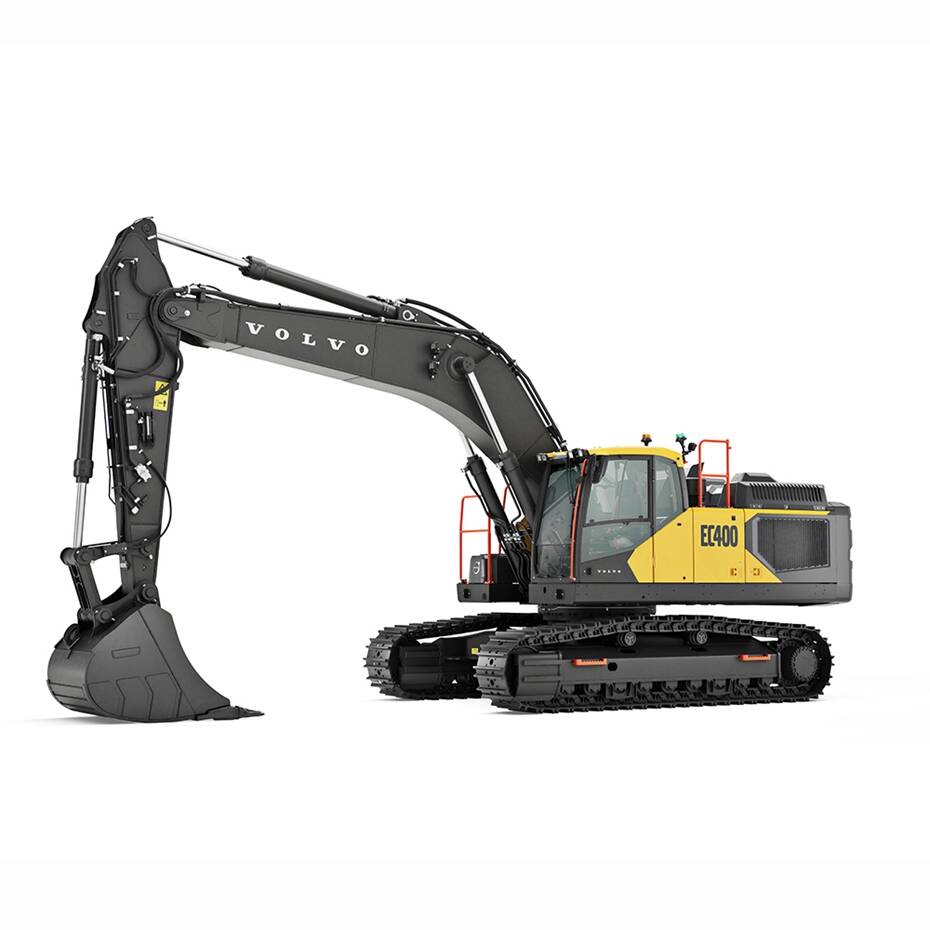

Crawler Excavators Volvo EC400F L
Crawler Excavators Volvo EC400F L
Crawler Excavators Volvo EC400F L
Crawler Excavators Volvo EC400F L

Visit Volvo live at

Technical specs - EC400F L Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
41.55 t
Transport length
11.27 m
Transport width
3.64 m
Transport height
3.84 m
Bucket capacity min.
0.87 m³
Bucket capacity max.
2.9 m³
Track width
900 mm
Boom
MB
Max. Reach horizontal
11.855 m
Dredging depth
8.29 m
Tear-out force
198 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D13J
Engine power
252 kW
Displacement
12.8 l
Revolutions at max torque
1600 rpm
Max. torque
1975/1200 Nm
No. of cylinders
6
Cylinder bore x stroke
131x158 mm
Emission level
V

More technical details, like: bucket capacity, undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC400F L FAQ

When was the Volvo EC400F L manufactured?

The Volvo EC400F L was first produced in 2024.

How much does the Volvo EC400F L weigh?

The Volvo EC400F L weighs 41.55 tons.

What are the transport dimensions of the Volvo EC400F L crawler excavator?

The Volvo EC400F L crawler excavator has a transport length of 11.27 meters, a transport width of 3.64 meters, and a transport height of 3.84 meters.

What is the track width of the Volvo EC400F L's undercarriage?

The Volvo EC400F L has a track width of 900 mm.

What are the excavation performance specifications of the Volvo EC400F L?

The Volvo EC400F L has a dredging depth of 8.29 meters, a maximum horizontal reach of 11.855 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Volvo EC400F L?

The Volvo EC400F L has a tear-out force of 198 kN.

What are the bucket capacity specifications of the Volvo EC400F L excavator?

The Volvo EC400F L excavator has a bucket capacity ranging from 0.87 to 2.9 cubic meters.

How much is a Volvo EC400F L Crawler excavator (2024u20132025) worth?

The residual value of the Volvo EC400F L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
