EC380ENL Volvo excavator specs & Dimensions (2019 - 2026)

Volvo EC380ENL is a crawler excavator manufactured since 2019, with a weight of 38.86 tons. It features a track width of 600 mm, a…

Volvo EC380ENL is a crawler excavator manufactured since 2019, with a weight of 38.86 tons. It features a track width of 600 mm, a transport length of 11.06 meters, a transport width of 2.99 meters, and a transport height of 3.68 meters. The machine has a tear-out force of 243.4 kN, a dredging depth of 6.75 meters, and a maximum horizontal reach of 10.45 meters.

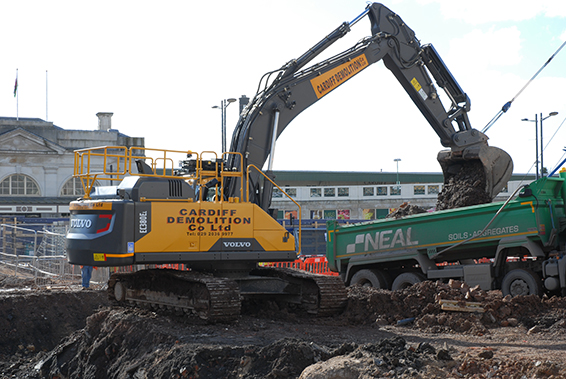

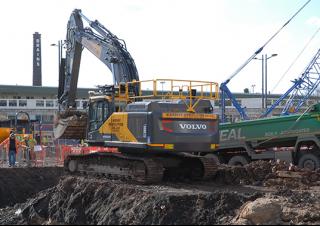

Crawler Excavators Volvo EC380ENL
Crawler Excavators Volvo EC380ENL
Crawler Excavators Volvo EC380ENL
Crawler Excavators Volvo EC380ENL

Visit Volvo live at

Technical specs - EC380ENL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38.86 t
Transport length
11.06 m
Transport width
2.99 m
Transport height
3.68 m
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.45 m
Dredging depth
6.75 m
Tear-out force
243.4 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D13J
Engine power
311 kW
Displacement
12.8 l
Revolutions at max torque
1600 rpm
Max. torque
2070/1300 Nm
No. of cylinders
6
Cylinder bore x stroke
131x158 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC380ENL FAQ

When was the Volvo EC380ENL manufactured?

The Volvo EC380ENL was first produced in 2019.

How much does the Volvo EC380ENL weigh?

The Volvo EC380ENL weighs 38.86 tons.

What are the transport dimensions of the Volvo EC380ENL crawler excavator?

The Volvo EC380ENL has a transport length of 11.06 meters, a transport width of 2.99 meters, and a transport height of 3.68 meters.

What is the fuel consumption range of the Volvo EC380ENL?

The fuel consumption range of the Volvo EC380ENL is 23 to 45 liters per hour.

What are the undercarriage specifications of the Volvo EC380ENL?

The Volvo EC380ENL has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Volvo EC380ENL?

The Volvo EC380ENL has a dredging depth of 6.75 meters, a maximum horizontal reach of 10.45 meters, and features a monobloc boom.

What is the tear-out force of the Volvo EC380ENL?

The source data does not provide power ratings for the Volvo EC380ENL. However, its tear-out force is 243.4 kN.

How much is a Volvo EC380ENL Crawler excavator (2019u20132025) worth?

The residual value of the Volvo EC380ENL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
