EC350EL Volvo excavator specs & Dimensions (2021 - 2026)

Volvo EC350EL is a Crawler Excavator manufactured since 2021, with a weight of 36.28 tons. It features a track width of 600 mm, a …

Volvo EC350EL is a Crawler Excavator manufactured since 2021, with a weight of 36.28 tons. It features a track width of 600 mm, a transport length of 11.295 meters, a transport width of 3.19 meters, and a transport height of 3.165 meters. The excavator has a tear-out force of 187 kN, a dredging depth of 6.89 meters, and a maximum horizontal reach of 10.6 meters. The bucket width is 1.5 meters, with a bucket capacity ranging from 0.87 m³ to 2.33 m³. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, a quick hitch hydraulic system, and track adjustment.

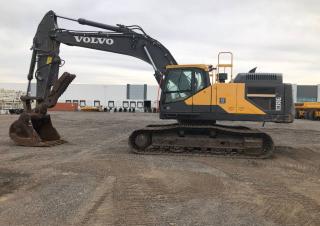

Crawler Excavators Volvo EC350EL
Crawler Excavators Volvo EC350EL
Crawler Excavators Volvo EC350EL
Crawler Excavators Volvo EC350EL

Visit Volvo live at

Technical specs - EC350EL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.28 t
Transport length
11.295 m
Transport width
3.19 m
Transport height
3.165 m
Bucket capacity
2.33 m³
Bucket capacity min.
0.87 m³
Bucket capacity max.
2.33 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.6 m
Dredging depth
6.89 m
Tear-out force
187 kN
Bucket width
1.5 m
Model series
EC
Engine manuf.
Volvo
Engine type
D8M
Engine power
220 kW
Displacement
7.7 l
Revolutions at max torque
1400 rpm
Max. torque
1400/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
110x135 mm
Emission level
V

More technical details, like: undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC350EL FAQ

When was the Volvo EC350EL manufactured?

The Volvo EC350EL was first produced in 2021.

How much does the Volvo EC350EL weigh?

The Volvo EC350EL weighs 36.28 tons.

What are the transport dimensions of the Volvo EC350EL crawler excavator?

The Volvo EC350EL has a transport length of 11.3 meters, a transport width of 3.19 meters, and a transport height of 3.17 meters.

What is the fuel consumption range of the Volvo EC350EL?

The fuel consumption range of the Volvo EC350EL is between 18 and 35 liters per hour.

What is the track width of the Volvo EC350EL's undercarriage?

The Volvo EC350EL has a track width of 600 mm.

What are the excavation performance specifications of the Volvo EC350EL?

The Volvo EC350EL has a dredging depth of 6.89 meters, a maximum horizontal reach of 10.6 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Volvo EC350EL?

The Volvo EC350EL has a tear-out force of 187 kN.

What are the bucket specifications of the Volvo EC350EL crawler excavator?

The Volvo EC350EL crawler excavator has a bucket capacity ranging from 0.87 to 2.33 cubic meters and a bucket width of 1.5 meters.

How much is a Volvo EC350EL Crawler excavator (2021u20132025) worth?

The residual value of the Volvo EC350EL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
