EC300DLR Volvo excavator specs & Dimensions (2011 - 2015)

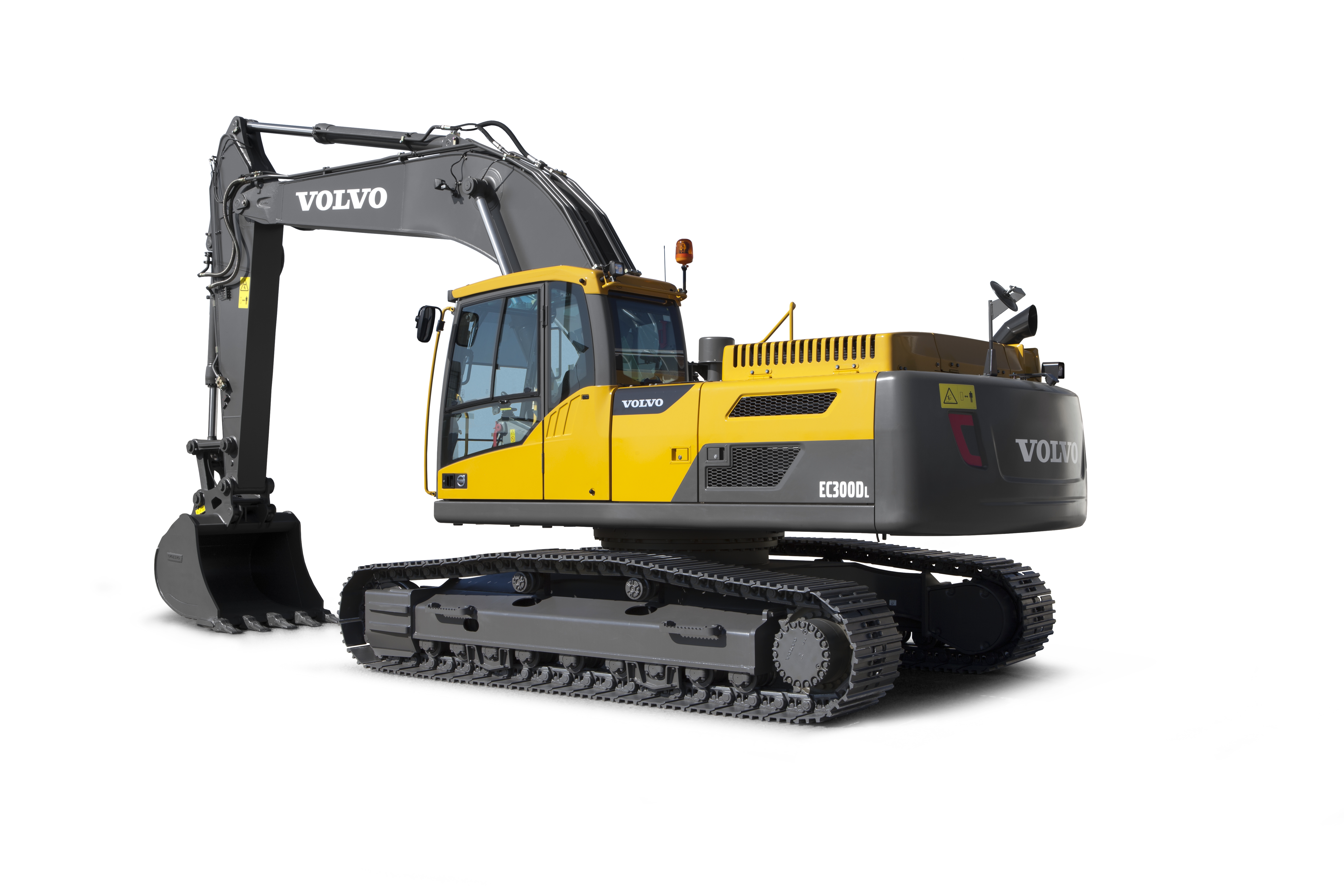

Volvo EC300DLR is a Crawler Excavator manufactured from 2011 to 2015, with a weight of 31.9 tons. It features a track width of 800…

Volvo EC300DLR is a Crawler Excavator manufactured from 2011 to 2015, with a weight of 31.9 tons. It features a track width of 800 mm, a transport length of 14.64 meters, a transport width of 3.19 meters, and a transport height of 3.24 meters. The machine has a tear-out force of 205 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Volvo EC300DLR
Crawler Excavators Volvo EC300DLR
Crawler Excavators Volvo EC300DLR
Crawler Excavators Volvo EC300DLR
Crawler Excavators Volvo EC300DLR
Crawler Excavators Volvo EC300DLR

Visit Volvo live at

Technical specs - EC300DLR Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.9 t
Transport length
14.64 m
Transport width
3.19 m
Transport height
3.24 m
Undercarriage
LC
Track width
800 mm
Max. Reach horizontal
18.4 m
Dredging depth
14.8 m
Tear-out force
205 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D 8 H
Engine power
169 kW
Displacement
7.8 l
Revolutions at max torque
1350 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC300DLR FAQ

When was the Volvo EC300DLR manufactured?

The Volvo EC300DLR was manufactured from 2011 to 2015.

How much does the Volvo EC300DLR weigh?

The Volvo EC300DLR weighs 31.9 tons.

What are the transport dimensions of the Volvo EC300DLR?

The Volvo EC300DLR has a transport length of 14.64 meters, a transport width of 3.19 meters, and a transport height of 3.24 meters.

What are the undercarriage specifications of the Volvo EC300DLR?

The Volvo EC300DLR has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Volvo EC300DLR?

The Volvo EC300DLR has a dredging depth of 14.8 meters and a maximum horizontal reach of 18.4 meters.

What is the power rating of the Volvo EC300DLR in terms of tear-out force?

The Volvo EC300DLR has a tear-out force of 205 kN, which is the power rating provided.

How much is a Volvo EC300DLR Crawler excavator (2011u20132015) worth?

The residual value of the Volvo EC300DLR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
