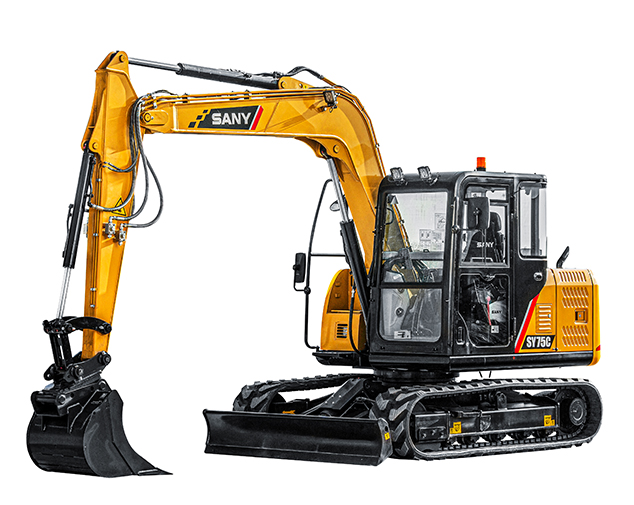

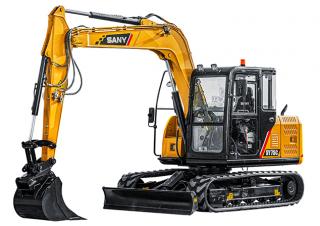

SY75C Sany excavator specs & Dimensions (2021 - 2026)

Sany SY75C is a crawler excavator manufactured since 2021. It has a weight of 7.28 tons and a track width of 450 mm. The transport…

Sany SY75C is a crawler excavator manufactured since 2021. It has a weight of 7.28 tons and a track width of 450 mm. The transport dimensions are 6.115 meters in length, 2.22 meters in width, and 2.72 meters in height. The machine offers a tear-out force of 35 kN, a dredging depth of 4.45 meters, and a maximum horizontal reach of 6.505 meters. The bucket capacity is 0.28 cubic meters.

Crawler Excavators Sany SY75C

Visit Sany live at

Technical specs - SY75C Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.28 t
Transport length
6.115 m
Transport width
2.22 m
Transport height
2.72 m
Bucket capacity
0.254 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.505 m
Dredging depth
4.45 m
Tear-out force
35 kN
Model series
SY
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
42.4 kW
Displacement
2.179 l
Revolutions at max torque
1900 rpm
Max. torque
241/1300 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Sany SY75C FAQ

When was the Sany SY75C manufactured?

The Sany SY75C was first produced in 2021.

How much does the Sany SY75C weigh?

The Sany SY75C weighs 7.28 tons.

What are the transport dimensions of the Sany SY75C crawler excavator?

The Sany SY75C crawler excavator has a transport length of 6.12 meters, a transport width of 2.22 meters, and a transport height of 2.72 meters.

What is the track width of the Sany SY75C crawler excavator?

The Sany SY75C crawler excavator has a track width of 450 mm.

What are the excavation performance specifications of the Sany SY75C crawler excavator?

The Sany SY75C crawler excavator has a dredging depth of 4.45 meters, a maximum horizontal reach of 6.505 meters, and is equipped with a monobloc boom.

What are the power ratings of the Sany SY75C crawler excavator?

There is no power rating data available for the Sany SY75C crawler excavator in the provided information.

What is the bucket capacity of the Sany SY75C crawler excavator?

The Sany SY75C crawler excavator has a bucket capacity of 0.254 cubic meters.

How much is a Sany SY75C Crawler excavator (2021u20132025) worth?

The residual value of the Sany SY75C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
