SY75C Sany excavator specs & Dimensions (2018 - 2020)

Sany SY75C is a Crawler Excavator manufactured from 2018 to 2020. It has a weight of 7.28 tons and a track width of 450 mm. The tr…

Sany SY75C is a Crawler Excavator manufactured from 2018 to 2020. It has a weight of 7.28 tons and a track width of 450 mm. The transport dimensions are 6.095 meters in length, 2.22 meters in width, and 2.76 meters in height. The excavator features a tear-out force of 56.8 kN, a dredging depth of 6.6 meters, and a maximum horizontal reach of 7.39 meters. The bucket capacity is 0.28 cubic meters.

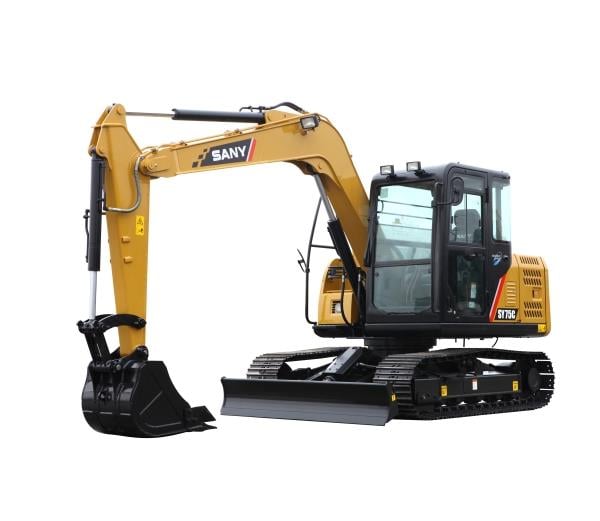

Crawler Excavators Sany SY75C

Visit Sany live at

Technical specs - SY75C Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.28 t
Transport length
6.095 m
Transport width
2.22 m
Transport height
2.76 m
Bucket capacity
0.28 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.39 m
Dredging depth
6.6 m
Tear-out force
56.8 kN
Model series
SY
Engine manuf.
Isuzu
Engine type
CP-4LE2XA-S
Engine power
43 kW
Dimension lxwxh
834x585x775 mm
Displacement
2.2 l
Revolutions at max torque
2000 rpm
Max. torque
215/1800 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sany SY75C FAQ

When was the Sany SY75C manufactured?

The Sany SY75C was manufactured from 2018 to 2020.

How much does the Sany SY75C crawler excavator weigh?

The Sany SY75C crawler excavator weighs 7.28 tons.

What are the transport dimensions of the Sany SY75C crawler excavator?

The Sany SY75C crawler excavator has a transport length of 6.1 meters, a transport width of 2.22 meters, and a transport height of 2.76 meters.

What is the track width of the Sany SY75C's undercarriage?

The Sany SY75C has a track width of 450 mm.

What are the excavation performance specifications of the Sany SY75C crawler excavator?

The Sany SY75C crawler excavator has a dredging depth of 6.6 meters, a maximum horizontal reach of 7.39 meters, and features a monobloc boom.

What is the tear-out force of the Sany SY75C?

The Sany SY75C has a tear-out force of 56.8 kN.

What is the bucket capacity of the Sany SY75C crawler excavator?

The Sany SY75C crawler excavator has a bucket capacity of 0.28 cubic meters.

How much is a Sany SY75C Crawler excavator (2018u20132020) worth?

The residual value of the Sany SY75C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
