SY205C8M Sany excavator specs & Dimensions (2008 - 2026)

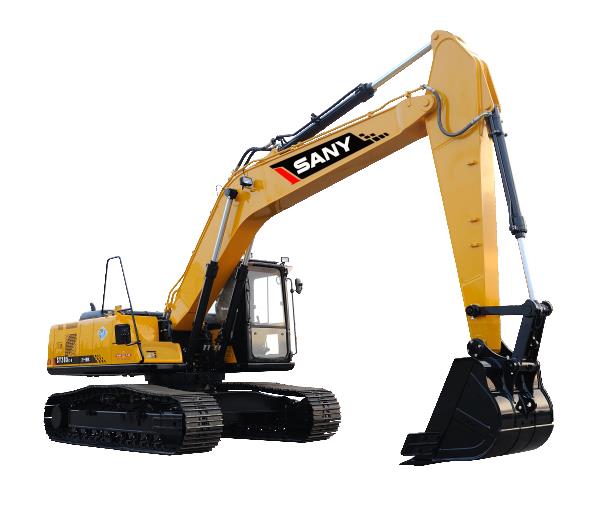

Sany SY205C8M is a Crawler Excavator manufactured since 2008. It has a weight of 20 tons and a track width of 600 mm. The transpor…

Sany SY205C8M is a Crawler Excavator manufactured since 2008. It has a weight of 20 tons and a track width of 600 mm. The transport dimensions are 9.397 meters in length, 2 meters in width, and 2.956 meters in height. The excavator features a tear-out force of 138 kN and a maximum horizontal reach of 9885 meters.

Crawler Excavators Sany SY205C8M

Visit Sany live at

Technical specs - SY205C8M Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20 t
Transport length
9.4 m
Transport width
2 m
Transport height
2.96 m
Bucket capacity
0.83 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.885 m
Dredging depth
6.63 m
Tear-out force
138 kN
Engine manuf.
N/A
Engine type
N/A
Emission level
Tier 2

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sany SY205C8M FAQ

When was the Sany SY205C8M manufactured?

The Sany SY205C8M was first produced in 2008.

How much does the Sany SY205C8M weigh?

The Sany SY205C8M weighs 20 tons.

What are the transport dimensions of the Sany SY205C8M crawler excavator?

The Sany SY205C8M has a transport length of 9.4 meters, a transport width of 2 meters, and a transport height of 2.96 meters.

What are the undercarriage specifications of the Sany SY205C8M?

The Sany SY205C8M has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Sany SY205C8M crawler excavator?

The Sany SY205C8M crawler excavator has a dredging depth of 6.63 meters, a maximum horizontal reach of 9.885 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sany SY205C8M crawler excavator?

The Sany SY205C8M crawler excavator has a tear-out force of 138 kN.

What is the bucket capacity of the Sany SY205C8M crawler excavator?

The bucket capacity of the Sany SY205C8M crawler excavator is 0.83 cubic meters.

How much is a Sany SY205C8M Crawler excavator (2008u20132025) worth?

The residual value of the Sany SY205C8M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
