SY135F Sany excavator specs & Dimensions (2018 - 2026)

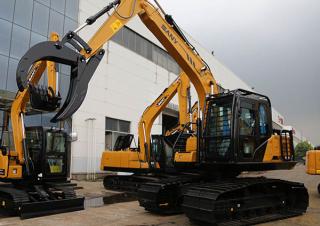

Sany SY135F is a crawler excavator manufactured since 2018. It has a weight of 16.8 tons and a track width of 600 mm. The transpor…

Sany SY135F is a crawler excavator manufactured since 2018. It has a weight of 16.8 tons and a track width of 600 mm. The transport dimensions are 7.7 meters in length, 2.65 meters in width, and 2.815 meters in height. The excavator features a tear-out force of 110 kN, a dredging depth of 5.5 meters, and a maximum horizontal reach of 8.29 meters. The bucket capacity is 0.56 cubic meters.

Crawler Excavators Sany SY135F

Visit Sany live at

Technical specs - SY135F Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.8 t
Transport length
7.7 m
Transport width
2.65 m
Transport height
2.815 m
Bucket capacity
0.56 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.29 m
Dredging depth
5.5 m
Tear-out force
110 kN
Model series
SY
Engine manuf.
Isuzu
Engine type
4JJ-FT4
Engine power
77 kW
Displacement
2.9 l
Revolutions at max torque
1800 rpm
Max. torque
375 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sany SY135F FAQ

When was the Sany SY135F manufactured?

The Sany SY135F was first produced in 2018.

How much does the Sany SY135F weigh?

The Sany SY135F weighs 16.8 tons.

What are the transport dimensions of the Sany SY135F crawler excavator?

The Sany SY135F crawler excavator has a transport length of 7.7 meters, a transport width of 2.65 meters, and a transport height of 2.82 meters.

What is the track width of the Sany SY135F's undercarriage?

The Sany SY135F has a track width of 600 mm.

What are the excavation performance specifications of the Sany SY135F crawler excavator?

The Sany SY135F crawler excavator has a dredging depth of 5.5 meters, a maximum horizontal reach of 8.29 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sany SY135F?

The Sany SY135F has a tear-out force of 110 kN.

What is the bucket capacity of the Sany SY135F crawler excavator?

The Sany SY135F crawler excavator has a bucket capacity of 0.56 cubic meters.

How much is a Sany SY135F Crawler excavator (2018u20132025) worth?

The residual value of the Sany SY135F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
