E485C EVO New Holland excavator specs & Dimensions (2022 - 2026)

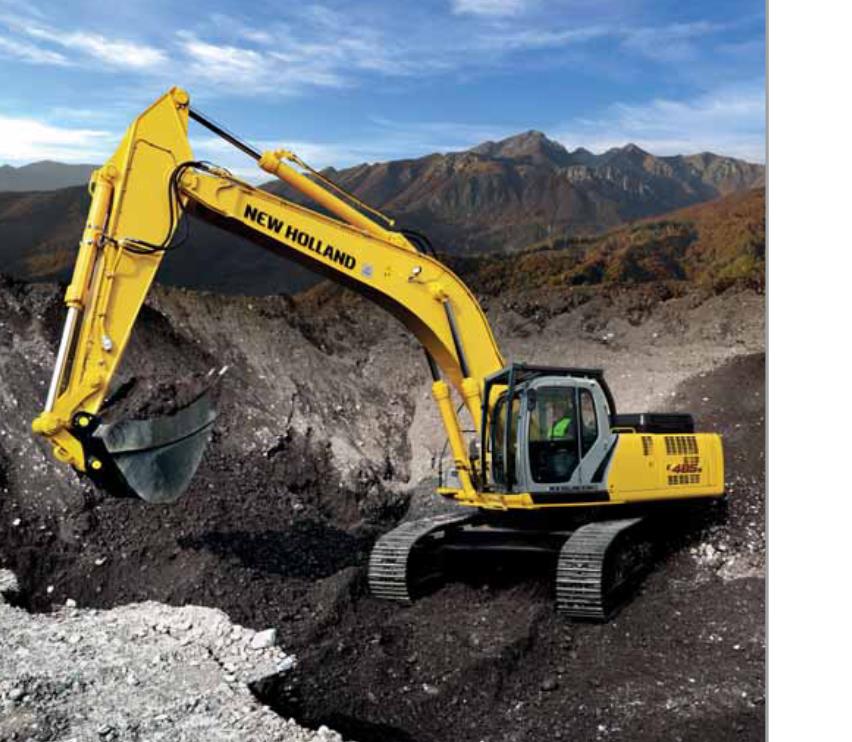

New Holland E485C EVO is a Crawler Excavator manufactured since 2022, with a weight of 48.7 tons. It features a track width of 600…

New Holland E485C EVO is a Crawler Excavator manufactured since 2022, with a weight of 48.7 tons. It features a track width of 600 mm, a transport length of 12.07 meters, a transport width of 3.59 meters, and a transport height of 3.65 meters. The excavator has a tear-out force of 339 kN, a dredging depth of 7.75 meters, and a maximum horizontal reach of 12.02 meters. It comes with a bucket capacity of 2.4 cubic meters. Special equipment includes air conditioning, cabin adjustment, and track adjustment.

Crawler Excavators New Holland E485C EVO

Technical specs - E485C EVO New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
48.7 t
Transport length
12.07 m
Transport width
3.59 m
Transport height
3.65 m
Bucket capacity
2.4 m³
Bucket capacity max.
2.4 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
12.02 m
Dredging depth
7.75 m
Tear-out force
339 kN
Engine manuf.
Isuzu
Engine type
GH-6UZ1XKSS-0D
Engine power
270 kW
Displacement
9.84 l
Revolutions at max torque
1500 rpm
Max. torque
1363 Nm
No. of cylinders
6
Cylinder bore x stroke
120 x 145 mm
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket width, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E485C EVO FAQ

When was the New Holland E485C EVO manufactured?

The New Holland E485C EVO was first produced in 2022.

How much does the New Holland E485C EVO weigh?

The New Holland E485C EVO weighs 48.7 tons.

What are the transport dimensions of the New Holland E485C EVO?

The New Holland E485C EVO has a transport length of 12.07 meters, a transport width of 3.59 meters, and a transport height of 3.65 meters.

What are the undercarriage specifications of the New Holland E485C EVO?

The New Holland E485C EVO has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E485C EVO?

The New Holland E485C EVO has a dredging depth of 7.75 meters, a maximum horizontal reach of 12.02 meters, and features a monobloc boom.

What is the power rating of the New Holland E485C EVO?

The source data does not provide power rating information for the New Holland E485C EVO.

What is the bucket capacity of the New Holland E485C EVO excavator?

The New Holland E485C EVO has a bucket capacity of 2.4 cubic meters.

How much is a New Holland E485C EVO Crawler excavator (2022u20132025) worth?

The residual value of the New Holland E485C EVO depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

New Holland E485C EVO overview

Cab

Operator's cab

Smooth and round shape design cab, fabricated by press work Safety glass for all windows Shock-less cab suspension by 4-point fluid mounting Sliding front window with auto lock Built-in type full-color LCD monitor display Membrane switch on monitor display Windshield wiper & washer AM/FM Radio with auto-tuner Floor mat Polycarbonate roof hatch & Sun shade Auto air conditioner Top guard OPG level 1 (in CAB structure) Roll-over protective structure (ROPS).


Equipment

Operator's seat

Low frequency mechanical suspension with helical springs and double acting hydraulic damper. With the following features: Manual weight adjustment Backrest angle adjustment Seat height adjustment Adjustable pivoting armrests linked to consoles Adjustable headrest Retractable seat belt Adjustable lumbar support Control consoles adjust independently of seat.
