E150 Blade Runner New Holland excavator specs & Dimensions (2006 - 2026)

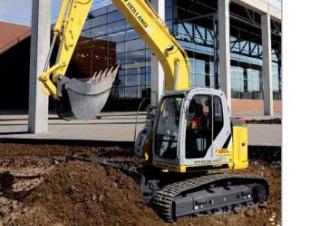

New Holland E150 Blade Runner is a crawler excavator manufactured since 2006. It has a weight of 16 tons and a track width of 500 …

New Holland E150 Blade Runner is a crawler excavator manufactured since 2006. It has a weight of 16 tons and a track width of 500 mm. The transport dimensions are 8 meters in length, 2 meters in width, and 2 meters in height. The machine features a tear-out force of 97 kN, a dredging depth of 5 meters, and a maximum horizontal reach of 8 meters. The bucket capacity is 2 cubic meters. Special equipment includes air conditioning and a blade.

Crawler Excavators New Holland E150 Blade Runner

Technical specs - E150 Blade Runner New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.2 t
Transport length
8.55 m
Transport width
2.49 m
Transport height
2.98 m
Bucket capacity
2.19 m³
Bucket capacity min.
2.19 m³
Undercarriage
HD
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.77 m
Dredging depth
5.85 m
Tear-out force
97 kN
Engine manuf.
Isuzu
Engine type
A-4BG1T
Engine power
70 kW
Displacement
4329 l
No. of cylinders
4
Cylinder bore x stroke
102 x 120 mm
Emission level
Tier 2

More technical details, like: bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E150 Blade Runner FAQ

When was the New Holland E150 Blade Runner manufactured?

The New Holland E150 Blade Runner was first produced in 2006.

How much does the New Holland E150 Blade Runner weigh?

The New Holland E150 Blade Runner weighs 16.2 tons.

What are the transport dimensions of the New Holland E150 Blade Runner?

The transport dimensions of the New Holland E150 Blade Runner are 8.55 meters in length, 2.49 meters in width, and 2.98 meters in height.

What are the undercarriage specifications of the New Holland E150 Blade Runner?

The New Holland E150 Blade Runner has a heavy duty undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the New Holland E150 Blade Runner?

The New Holland E150 Blade Runner has a dredging depth of 5.85 meters, a maximum horizontal reach of 8.77 meters, and features a monobloc boom.

What is the tear-out force of the New Holland E150 Blade Runner?

The New Holland E150 Blade Runner has a tear-out force of 97 kN.

What is the bucket capacity of the New Holland E150 Blade Runner?

The New Holland E150 Blade Runner has a bucket capacity of 2.19 cubic meters.

How much is a New Holland E150 Blade Runner Crawler excavator (2006u20132025) worth?

The residual value of the New Holland E150 Blade Runner depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
