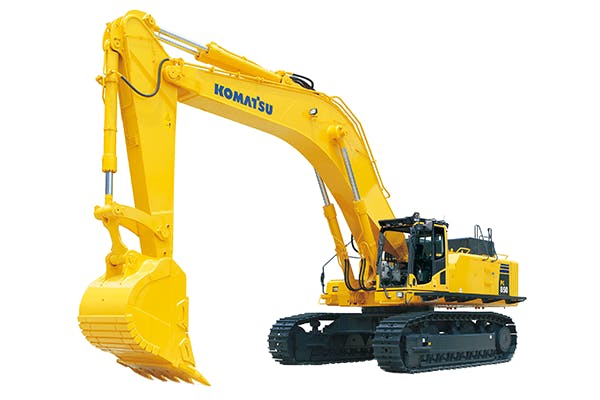

PC850SE-8E0 Komatsu excavator specs & Dimensions (2022 - 2026)

Ecology and Economy Features

Low Emission Engine A powerful, turbocharged and air-to-air aftercooled Komatsu SAA6D140E-5 provides 363 kW 487 HP. This engine is U.S. EPA Tier 3 and EU Stage 3A emissions certified, without sacrificing power or machine productivity. Economy Mode Four-level Setting Enables operator to select the appropriate Economy mode level to match production requirement with lowest fuel consumption. Reduction of Ambient Noise Electronically controlled variable speed fan drive Large hybrid fan Low-noise muffler Mode Selection Economy mode improves fuel consumption. ECO gauge for energy-saving operations Extended idling caution for fuel conservation Auto deceleration and auto idling system reduce fuel consumption.

Electronically Controlled Variable Speed Fan

The electronic control system sets the revolution speed of the cooling fan according to the coolant, hydraulic oil, and ambient temperature; effectively uses the engine output to prevent wasteful fuel consumption; and reduces noise during low-speed fan revolution.

Lower and Economical Fuel Consumption Using Economy Mode

Enables operator to set the Economy mode to four levels according to working conditions so that production requirement is achieved at lowest fuel consumption.

ECO Gauge for Energy-saving Operations

ECO gauge is equipped for environment friendly energy-saving operations. Focus on operation in the green range allows reduction of CO2 emission and fuel consumption.

Idling Caution

To prevent unnecessary fuel consumption, an idling caution is displayed on the monitor, if the engine idles for 5 minutes or more.

Auto Deceleration and Auto Idling System

Auto deceleration system is equipped to reduce fuel consumption and operating noise. Also, engine idling speed can be set at a lower speed on monitor with auto idling system.

Working Modes Selectable

P and E modes established work modes are further improved. P mode – Power or work priority mode has low fuel consumption, but fast equipment speed and maximum production and power are maintained. E mode – Economy or fuel saving mode further reduces fuel consumption, but maintains the P-mode-like working equipment speed for light duty work. You can select Power or Economy modes using a one-touch operation on the monitor panel depending on workloads.

Mode Selection

The multi-function color monitor has Power mode and Economy mode (Four levels). Additionally, it is possible to select “Heavy lift mode” or “Swing priority mode” for each Power mode and Economy mode.

Excellent Reliability and Durability

Strengthened Boom and Arm KMAX Bucket Teeth offer superior penetration and long-term sharpness. Fuel Pre-filter with water separator and High Efficiency Fuel Filter equipped as standard. O-ring Face Seals, which have excellent sealing performance, are used for the hydraulic hoses. High-pressure In-line Filtration The cool-running hydraulic system is protected with the most extensive filtration system available, including a high pressure in-line filter for each main pump. Highly Reliable Electronic Devices Exclusively designed electronic devices have passed severe testing. Controllers Sensors Connectors Heat resistant wiring Circuit breaker Boom Foot Hoses are arranged under the boom foot, improving hose life and safety. The boom foot hoses are arranged under the boom foot to reduce hose bend during operation, extending hose life and improving operator safety.

High-pressure In-line Filtration

The PC850-8E0 has the most extensive filtration system available, providing in-line filters as standard equipment. An in-line filter in the outlet port of each main hydraulic pump reduces failures caused by contamination.

O-ring Face Seal

The hydraulic hose seal method has been changed from a conventional taper seal to an O-ring seal. This provides improved sealing performance during operation.

Strengthened Quarry Bucket Provides Outstanding Wear-resistance

The PC850-8E0 has the bucket for specific use in quarry, that is strong in impact and wear, and providing high performance and long life. Komatsu KVX’s hard materials provide excellent wear resistance. Combined with adoption of long-life KMAX teeth, durability of bucket is drastically enhanced.

Sturdy Undercarriage

The undercarriage is strengthened to provide excellent reliability and durability when working on rocky ground or blasted rock. Sturdy guards shield the travel motors and pipings against damage from rocks.

Productivity Features

High Work Equipment Speed Arm quick return circuit enables loading work to be quicker than ever, by reducing hydraulic pressure loss of arm dumping. Heavy Lift Mode The heavy lift mode increases lifting force by 10%. Large Digging Force Pressing the Power Max. function button temporarily increases the digging force. Two-mode Setting for Boom Switch selection allows either powerful digging or smooth boom operation. Large Drawbar Pull and Steering Force provide excellent mobility. Swing Priority Mode The swing priority mode improves efficiency for loading dump trucks. Shockless Boom Control Switch selection reduces chassis vibration after sudden stops.

Swing Priority Mode

The swing priority mode allows the operator to use the same easy motion for 180° loading as 90° loading operations. By altering the oil flow, this setting allows you to select either boom or swing as the priority for increased production.

Work Equipment Speed

An arm quick return circuit is provided for arm dumping. This returns a portion of oil flow directly to the hydraulic tank at arm dumping to reduce the hydraulic pressure loss. Speedier loading work can be accomplished by work equipment with quicker movement.

Large Drawbar Pull and Steering Force

Since the machine has a large drawbar pull and a high steering force, it demonstrates excellent mobility even when it is on inclined sites.

Two-mode Setting for Boom

Smooth mode provides easy operation for gathering blasted rock and scraping operations. When maximum digging force is needed, switch to power mode for more effective excavating.

Shockless Boom Control

The PC850-8E0 boom circuit features a shockless valve (Double-check slow return valve) to automatically reduces the amount of vibration present when operating the boom. Operator fatigue is reduced (Which can improve safety and productivity), and spillage caused by vibration is minimized.

Strengthened Boom and Arm

Thanks to the large cross-sectional structure employing a high tensile strength steel with a thick plate, partition wall, etc., the boom and arm exhibit excellent durability and are highly resistant to bending and torsional stress.

Frame Structure

The revolving frame mount and center frame mount on the swing circle are no welding structure so that force is transmitted directly to the thick plate of the frame without passing through any welding.

Working Environment

Large Comfortable Cab Low-noise cab Low vibration with cab damper mounting Highly pressurized cab with optional air conditioner (A/C) Operator seat and console with armrest that enables operations in the appropriate operational posture. OPG top guard level 2 (ISO 10262) capable with bolt-on top guard.

Low Noise Design Cab

The newly-designed cab is highly rigid and has excellent sound absorption ability. Thorough improvement of noise source reduction and use of low noise engine, hydraulic equipment, and air conditioner allows the operator to work in quiet condition.

Wide Newly-designed Cab

Newly-designed wide spacious cab includes seat with reclining backrest. The seat height and longitudinal inclination are easily adjusted using a pull-up lever. You can set the appropriate operational posture of armrest together with the console. Reclining the seat further enables you to place it into the fully flat state with the headrest attached.

Multi-position Controls

The multi-position, Pressure Proportional Control (PPC) levers allow the operator to work in comfort while maintaining precise control. A double-slide mechanism allows the seat and control levers to move together or independently, allowing the operator to position the controls for maximum productivity and comfort.

Pressurized Cab

Optional air conditioner, air filter and a higher internal air pressure prevent external dust from entering the cab.

Low Vibration with Cab Damper Mounting

PC850-8E0 uses viscous damper mounting for cab that incorporates longer stroke and the addition of a spring. The cab damper mounting combined with high rigidity deck aids vibration reduction at operator seat.

Automatic A/C (Optional)

Enables you to easily and precisely set cab atmosphere with the instruments on the large LCD. The bi-level control function keeps the operator’s head and feet cool and warm respectively. This improved air flow function keeps the inside of the cab comfortable throughout the year. Defroster function keeps front glass clear.

Washable Cab Floormat

Cab floormat is easy to keep clean. The gently inclined surface has a flanged floormat and drainage holes to facilitate runoff.
