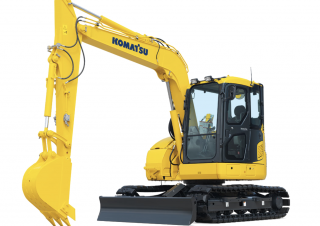

PC78US-10 Komatsu excavator specs & Dimensions (2017 - 2026)

Komatsu PC78US-10 is a Crawler Excavator manufactured since 2017, with a weight of 8.05 tons. It features a track width of 450 mm,…

Komatsu PC78US-10 is a Crawler Excavator manufactured since 2017, with a weight of 8.05 tons. It features a track width of 450 mm, a transport length of 6.27 meters, a transport width of 2.33 meters, and a transport height of 2.945 meters. The excavator has a tear-out force of 53.3 kN, a dredging depth of 4.66 meters, and a maximum horizontal reach of 6.92 meters. The bucket width is 0.65 meters with a capacity of 0.2 cubic meters. Special equipment includes a blade and a diesel particulate filter.

Crawler Excavators Komatsu PC78US-10
Crawler Excavators Komatsu PC78US-10
Crawler Excavators Komatsu PC78US-10
Crawler Excavators Komatsu PC78US-10

Visit Komatsu live at

Technical specs - PC78US-10 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.05 t
Transport length
6.27 m
Transport width
2.33 m
Transport height
2.945 m
Bucket capacity
0.2 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.92 m
Dredging depth
4.66 m
Tear-out force
53.3 kN
Bucket width
0.65 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA4D95LE-6
Engine power
50.7 kW
Displacement
3.26 l
Revolutions at max torque
1950 rpm
No. of cylinders
4
Cylinder bore x stroke
95x115 mm
Emission level
Tier 4f

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC78US-10 FAQ

When was the Komatsu PC78US-10 manufactured?

The Komatsu PC78US-10 was first produced in 2017.

How much does the Komatsu PC78US-10 weigh?

The Komatsu PC78US-10 weighs 8.05 tons.

What are the transport dimensions of the Komatsu PC78US-10?

The Komatsu PC78US-10 has a transport length of 6.27 meters, a transport width of 2.33 meters, and a transport height of 2.95 meters.

What is the track width of the Komatsu PC78US-10's undercarriage?

The Komatsu PC78US-10 has a track width of 450 mm.

What are the excavation performance specifications of the Komatsu PC78US-10?

The Komatsu PC78US-10 has a dredging depth of 4.66 meters, a maximum horizontal reach of 6.92 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC78US-10?

The Komatsu PC78US-10 has a tear-out force of 53.3 kN.

What are the bucket specifications of the Komatsu PC78US-10 excavator?

The Komatsu PC78US-10 has a bucket capacity of 0.2 cubic meters and a bucket width of 0.65 meters.

How much is a Komatsu PC78US-10 Crawler excavator (2017u20132025) worth?

The residual value of the Komatsu PC78US-10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
