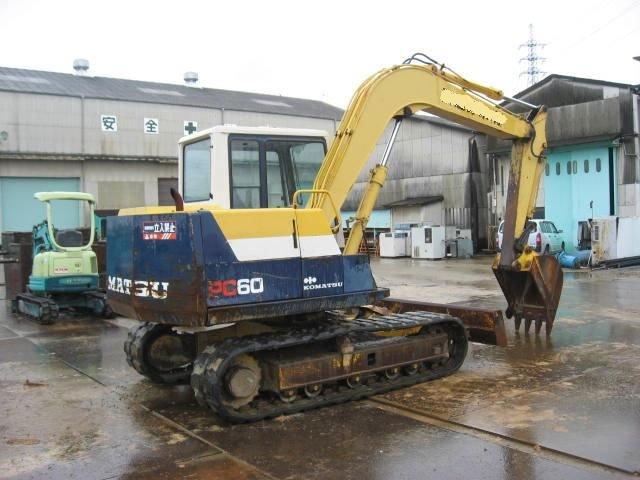

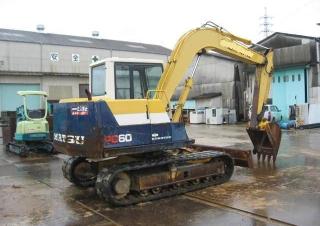

PC60L-6 Komatsu excavator specs & Dimensions (1991 - 1998)

Komatsu PC60L-6 is a crawler excavator manufactured from 1991 to 1998, with a weight of 6.98 tons. It features a track width of 60…

Komatsu PC60L-6 is a crawler excavator manufactured from 1991 to 1998, with a weight of 6.98 tons. It features a track width of 600 mm, a transport length of 6.15 meters, a transport width of 2.255 meters, and a transport height of 2.925 meters. The machine has a tear-out force of 45.1 kN, a dredging depth of 4.55 meters, and a maximum horizontal reach of 6.705 meters. The bucket width is 0.825 meters, and the bucket capacity is 0.36 cubic meters.

Crawler Excavators Komatsu PC60L-6

Visit Komatsu live at

Technical specs - PC60L-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.98 t
Transport length
6.15 m
Transport width
2.255 m
Transport height
2.925 m
Bucket capacity
0.36 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
6.705 m
Dredging depth
4.55 m
Tear-out force
45.1 kN
Bucket width
0.825 m
Model series
PC
Engine manuf.
Komatsu
Engine type
4D95L
Engine power
40 kW
Displacement
3.26 l
Revolutions at max torque
2100 rpm
No. of cylinders
4
Cylinder bore x stroke
95x115 mm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC60L-6 FAQ

When was the Komatsu PC60L-6 manufactured?

The Komatsu PC60L-6 was manufactured from 1991 to 1998.

How much does the Komatsu PC60L-6 weigh?

The Komatsu PC60L-6 weighs 6.98 tons.

What are the transport dimensions of the Komatsu PC60L-6?

The Komatsu PC60L-6 has a transport length of 6.15 meters, a transport width of 2.26 meters, and a transport height of 2.93 meters.

What are the undercarriage specifications of the Komatsu PC60L-6?

The Komatsu PC60L-6 has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC60L-6?

The Komatsu PC60L-6 has a dredging depth of 4.55 meters, a maximum horizontal reach of 6.705 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC60L-6?

The Komatsu PC60L-6 has a tear-out force of 45.1 kN.

What are the specifications of the primary work tool bucket on the Komatsu PC60L-6?

The primary work tool bucket of the Komatsu PC60L-6 has a capacity of 0.36 cubic meters and a width of 0.825 meters.

How much is a Komatsu PC60L-6 Crawler excavator (1991u20131998) worth?

The residual value of the Komatsu PC60L-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
