PC380LC-6 active Komatsu excavator specs & Dimensions (1998 - 2002)

Komatsu PC380LC-6 active is a crawler excavator manufactured from 1998 to 2002, with a weight of 39.8 tons and a track width of 60…

Komatsu PC380LC-6 active is a crawler excavator manufactured from 1998 to 2002, with a weight of 39.8 tons and a track width of 600 mm. It features track adjustment as part of its special equipment.

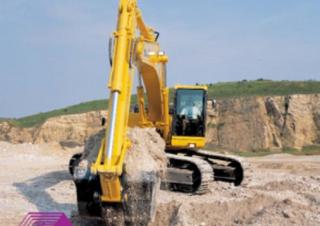

Crawler Excavators Komatsu PC380LC-6 active

Visit Komatsu live at

Technical specs - PC380LC-6 active Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
39.8 t
Bucket capacity
1.32 m³
Undercarriage
LC
Track width
600 mm
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D108E-2
Engine power
173 kW

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement...

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC380LC-6 active FAQ

When was the Komatsu PC380LC-6 active manufactured?

The Komatsu PC380LC-6 active was manufactured from 1998 to 2002.

How much does the Komatsu PC380LC-6 active weigh?

The Komatsu PC380LC-6 active weighs 39.8 tons.

What are the undercarriage specifications of the Komatsu PC380LC-6 active?

The Komatsu PC380LC-6 active has a long undercarriage with a track width of 600 mm.

What is the bucket capacity of the Komatsu PC380LC-6 active?

The Komatsu PC380LC-6 active has a bucket capacity of 1.32 cubic meters.

How much is a Komatsu PC380LC-6 active Crawler excavator (1998u20132002) worth?

The residual value of the Komatsu PC380LC-6 active depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
