PC360LC-3 Komatsu excavator specs & Dimensions (1988 - 1995)

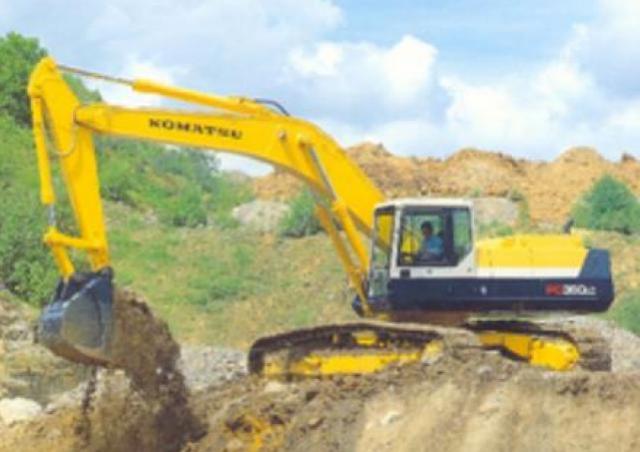

Komatsu PC360LC-3 is a crawler excavator manufactured from 1988 to 1995. It has a weight of 35.7 tons and a track width of 710 mm.…

Komatsu PC360LC-3 is a crawler excavator manufactured from 1988 to 1995. It has a weight of 35.7 tons and a track width of 710 mm. The transport dimensions are 10.81 meters in length, 3.58 meters in width, and 3.235 meters in height. The dredging depth is 7.16 meters, with a maximum horizontal reach of 11.1 meters. The bucket capacity is 1.5 cubic meters.

Crawler Excavators Komatsu PC360LC-3

Visit Komatsu live at

Technical specs - PC360LC-3 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.7 t
Transport length
10.81 m
Transport width
3.58 m
Transport height
3.235 m
Bucket capacity
1.5 m³
Undercarriage
LC
Track width
710 mm
Boom
MB
Max. Reach horizontal
11.1 m
Dredging depth
7.16 m
Model series
PC
Engine manuf.
Komatsu
Engine type
S6D125
Engine power
158 kW
Displacement
11.05 l
Revolutions at max torque
1550 rpm
No. of cylinders
6
Cylinder bore x stroke
125x150 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC360LC-3 FAQ

When was the Komatsu PC360LC-3 manufactured?

The Komatsu PC360LC-3 was manufactured from 1988 to 1995.

How much does the Komatsu PC360LC-3 weigh?

The Komatsu PC360LC-3 weighs 35.7 tons.

What are the transport dimensions of the Komatsu PC360LC-3?

The Komatsu PC360LC-3 has a transport length of 10.81 meters, a transport width of 3.58 meters, and a transport height of 3.24 meters.

What are the undercarriage specifications of the Komatsu PC360LC-3?

The Komatsu PC360LC-3 has a long undercarriage and a track width of 710 mm.

What are the excavation performance specifications of the Komatsu PC360LC-3?

The Komatsu PC360LC-3 has a dredging depth of 7.16 meters, a maximum horizontal reach of 11.1 meters, and is equipped with a monobloc boom.

What is the bucket capacity of the Komatsu PC360LC-3 excavator?

The bucket capacity of the Komatsu PC360LC-3 is 1.5 cubic meters.

How much is a Komatsu PC360LC-3 Crawler excavator (1988u20131995) worth?

The residual value of the Komatsu PC360LC-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
