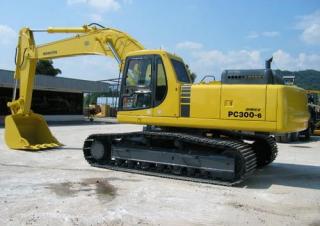

PC300LC-6 Komatsu excavator specs & Dimensions (1996 - 2007)

Komatsu PC300LC-6 is a Crawler Excavator manufactured from 1996 to 2007. It has a weight of 33.93 tons and a track width of 700 mm…

Komatsu PC300LC-6 is a Crawler Excavator manufactured from 1996 to 2007. It has a weight of 33.93 tons and a track width of 700 mm. The transport dimensions are 11.105 meters in length, 3.29 meters in width, and 3.13 meters in height. The dredging depth is 8.18 meters, with a maximum horizontal reach of 11.73 meters. The bucket width is 1.372 meters, and the bucket capacity is 1.91 cubic meters.

Crawler Excavators Komatsu PC300LC-6

Visit Komatsu live at

Technical specs - PC300LC-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.93 t
Transport length
11.105 m
Transport width
3.29 m
Transport height
3.13 m
Bucket capacity
1.91 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
11.73 m
Dredging depth
8.18 m
Bucket width
1.372 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SA6D114E-1
Engine power
171.5 kW
Displacement
8.13 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
114x135 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC300LC-6 FAQ

When was the Komatsu PC300LC-6 manufactured?

The Komatsu PC300LC-6 was manufactured from 1996 to 2007.

How much does the Komatsu PC300LC-6 weigh?

The Komatsu PC300LC-6 weighs 33.93 tons.

What are the transport dimensions of the Komatsu PC300LC-6?

The Komatsu PC300LC-6 has a transport length of 11.11 meters, a transport width of 3.29 meters, and a transport height of 3.13 meters.

What are the undercarriage specifications of the Komatsu PC300LC-6?

The Komatsu PC300LC-6 has a long undercarriage and a track width of 700 mm.

What are the excavation performance specifications of the Komatsu PC300LC-6?

The Komatsu PC300LC-6 has a dredging depth of 8.18 meters, a maximum horizontal reach of 11.73 meters, and features a Monobloc boom.

What are the specifications of the primary work tool (bucket) on the Komatsu PC300LC-6?

The Komatsu PC300LC-6 has a bucket with a capacity of 1.91 cubic meters and a width of 1.372 meters.

How much is a Komatsu PC300LC-6 Crawler excavator (1996u20132007) worth?

The residual value of the Komatsu PC300LC-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
