PC290NLC-10 Komatsu excavator specs & Dimensions (2012 - 2017)

Komatsu PC290NLC-10 is a Crawler Excavator manufactured from 2012 to 2017, with a weight of 29.8 tons. It features a track width o…

Komatsu PC290NLC-10 is a Crawler Excavator manufactured from 2012 to 2017, with a weight of 29.8 tons. It features a track width of 600 mm, a transport length of 10.185 meters, a transport width of 2.99 meters, and a transport height of 3.34 meters. The machine has a dredging depth of 6.915 meters and a maximum horizontal reach of 10.455 meters. It is equipped with a bucket capacity of 1.88 cubic meters and includes special equipment such as air conditioning, a diesel particulate filter, and an overload alert system.

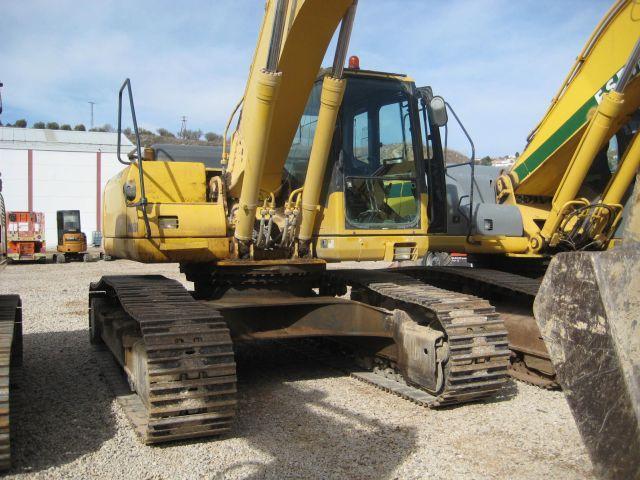

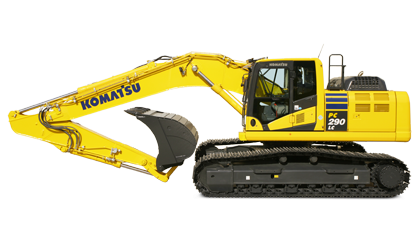

Crawler Excavators Komatsu PC290NLC-10
Crawler Excavators Komatsu PC290NLC-10
Crawler Excavators Komatsu PC290NLC-10
Crawler Excavators Komatsu PC290NLC-10

Visit Komatsu live at

Technical specs - PC290NLC-10 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.8 t
Transport length
10.185 m
Transport width
2.99 m
Transport height
3.34 m
Bucket capacity
1.88 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.455 m
Dredging depth
6.915 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D107E-2
Engine power
147 kW
Displacement
6.69 l
Revolutions at max torque
2050 rpm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
Stage IIIB

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC290NLC-10 FAQ

When was the Komatsu PC290NLC-10 manufactured?

The Komatsu PC290NLC-10 was manufactured from 2012 to 2017.

How much does the Komatsu PC290NLC-10 weigh?

The Komatsu PC290NLC-10 weighs 29.8 tons.

What are the transport dimensions of the Komatsu PC290NLC-10?

The Komatsu PC290NLC-10 has a transport length of 10.19 meters, a transport width of 2.99 meters, and a transport height of 3.34 meters.

What are the undercarriage specifications of the Komatsu PC290NLC-10?

The Komatsu PC290NLC-10 has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC290NLC-10?

The Komatsu PC290NLC-10 has a dredging depth of 6.915 meters, a maximum horizontal reach of 10.455 meters, and features a monobloc boom.

What is the bucket capacity of the Komatsu PC290NLC-10?

The Komatsu PC290NLC-10 has a bucket capacity of 1.88 cubic meters.

How much is a Komatsu PC290NLC-10 Crawler excavator (2012u20132017) worth?

The residual value of the Komatsu PC290NLC-10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
