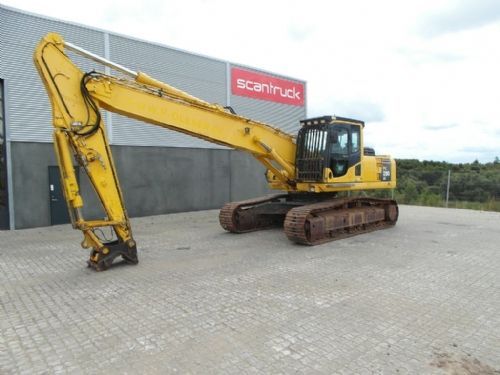

PC290LCD-8 Komatsu excavator specs & Dimensions (2012 - 2013)

Komatsu PC290LCD-8 is a crawler excavator manufactured from 2012 to 2013, with a weight of 29.3 tons. It features a track width of…

Komatsu PC290LCD-8 is a crawler excavator manufactured from 2012 to 2013, with a weight of 29.3 tons. It features a track width of 600 mm, a transport length of 10.1 meters, a transport width of 3.2 meters, and a transport height of 3.2 meters. The machine has a tear-out force of 184 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Komatsu PC290LCD-8

Visit Komatsu live at

Technical specs - PC290LCD-8 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.3 t
Transport length
10.1 m
Transport width
3.2 m
Transport height
3.2 m
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.97 m
Dredging depth
7.22 m
Tear-out force
184 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D107E-3
Engine power
149 kW
Displacement
6.69 l
Revolutions at max torque
2050 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Komatsu PC290LCD-8 FAQ

When was the Komatsu PC290LCD-8 manufactured?

The Komatsu PC290LCD-8 was manufactured from 2012 to 2013.

How much does the Komatsu PC290LCD-8 weigh?

The Komatsu PC290LCD-8 weighs 29.3 tons.

What are the transport dimensions of the Komatsu PC290LCD-8?

The Komatsu PC290LCD-8 has a transport length of 10.1 meters, a transport width of 3.2 meters, and a transport height of 3.2 meters.

What are the undercarriage specifications of the Komatsu PC290LCD-8?

The Komatsu PC290LCD-8 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC290LCD-8?

The Komatsu PC290LCD-8 has a dredging depth of 7.22 meters, a maximum horizontal reach of 10.97 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC290LCD-8, given that no power ratings are provided?

The Komatsu PC290LCD-8 has a tear-out force of 184 kN.

How much is a Komatsu PC290LCD-8 Crawler excavator (2012u20132013) worth?

The residual value of the Komatsu PC290LCD-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
