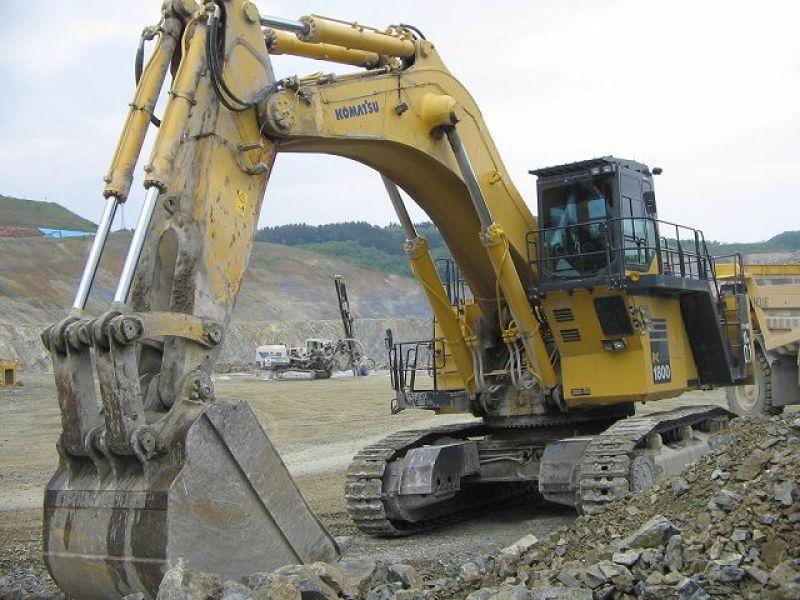

PC1800-6 Komatsu excavator specs & Dimensions (2000 - 2007)

Komatsu PC1800-6 is a crawler excavator manufactured from 2000 to 2007. It has a weight of 184.12 tons and a track width of 1010 m…

Komatsu PC1800-6 is a crawler excavator manufactured from 2000 to 2007. It has a weight of 184.12 tons and a track width of 1010 mm. The transport dimensions are 19.4 meters in length, 6.015 meters in width, and 7.705 meters in height. The machine features a tear-out force of 621 kN, a dredging depth of 10.77 meters, and a maximum horizontal reach of 19.37 meters. The bucket width is 2.77 meters, with a bucket capacity of 12 cubic meters.

Crawler Excavators Komatsu PC1800-6

Visit Komatsu live at

Technical specs - PC1800-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
184.12 t
Transport length
19.4 m
Transport width
6.015 m
Transport height
7.705 m
Bucket capacity
12 m³
Undercarriage
SL
Track width
1010 mm
Boom
MB
Max. Reach horizontal
19.37 m
Dredging depth
10.77 m
Tear-out force
621 kN
Bucket width
2.77 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D140E-2
Engine power
338 kW
Displacement
15.24 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Cylinder bore x stroke
140x165 mm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC1800-6 FAQ

When was the Komatsu PC1800-6 manufactured?

The Komatsu PC1800-6 was manufactured from 2000 to 2007.

How much does the Komatsu PC1800-6 weigh?

The Komatsu PC1800-6 weighs 184.12 tons.

What are the transport dimensions of the Komatsu PC1800-6?

The Komatsu PC1800-6 has a transport length of 19.4 meters, a transport width of 6.02 meters, and a transport height of 7.71 meters.

What are the undercarriage specifications of the Komatsu PC1800-6?

The Komatsu PC1800-6 has a standard undercarriage with a track width of 1010 mm.

What are the excavation performance specifications of the Komatsu PC1800-6?

The Komatsu PC1800-6 has a dredging depth of 10.77 meters, a maximum horizontal reach of 19.37 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC1800-6?

The Komatsu PC1800-6 has a tear-out force of 621 kN.

What are the specifications of the primary work tool bucket on the Komatsu PC1800-6?

The primary work tool bucket of the Komatsu PC1800-6 has a capacity of 12 cubic meters and a width of 2.77 meters.

How much is a Komatsu PC1800-6 Crawler excavator (2000u20132007) worth?

The residual value of the Komatsu PC1800-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
