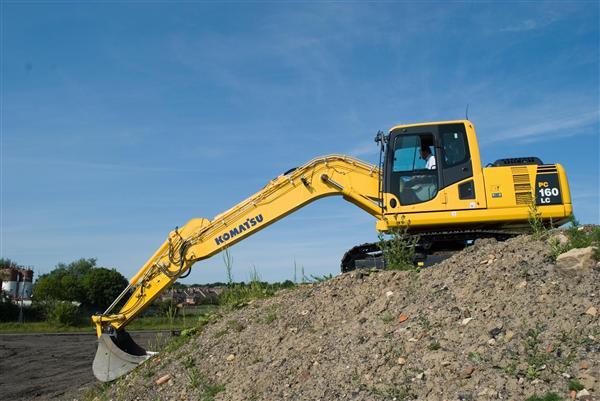

PC160LC-7 Komatsu excavator specs & Dimensions (2007 - 2010)

Komatsu PC160LC-7 is a Crawler Excavator manufactured from 2007 to 2010. It has a weight of 16.5 tons, a track width of 500 mm, a …

Komatsu PC160LC-7 is a Crawler Excavator manufactured from 2007 to 2010. It has a weight of 16.5 tons, a track width of 500 mm, a transport length of 8.6 meters, a transport width of 3.3 meters, and a transport height of 2.5 meters. The tear-out force is 95 kN. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators Komatsu PC160LC-7
Crawler Excavators Komatsu PC160LC-7
Crawler Excavators Komatsu PC160LC-7
Crawler Excavators Komatsu PC160LC-7
Crawler Excavators Komatsu PC160LC-7
Crawler Excavators Komatsu PC160LC-7
Crawler Excavators Komatsu PC160LC-7
Crawler Excavators Komatsu PC160LC-7

Visit Komatsu live at

Technical specs - PC160LC-7 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.5 t
Transport length
8.6 m
Transport width
3.3 m
Transport height
2.5 m
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
9.23 m
Dredging depth
6.25 m
Tear-out force
95 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA4D170E1
Engine power
86 kW
Displacement
4.5 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC160LC-7 FAQ

When was the Komatsu PC160LC-7 manufactured?

The Komatsu PC160LC-7 was manufactured from 2007 to 2010.

What is the weight of the Komatsu PC160LC-7 crawler excavator?

The Komatsu PC160LC-7 crawler excavator weighs 16.5 tons.

What are the transport dimensions of the Komatsu PC160LC-7?

The Komatsu PC160LC-7 has a transport length of 8.6 meters, a transport width of 3.3 meters, and a transport height of 2.5 meters.

What are the undercarriage specifications of the Komatsu PC160LC-7?

The Komatsu PC160LC-7 has a long undercarriage and a track width of 500 mm.

What are the excavation performance specifications of the Komatsu PC160LC-7?

The Komatsu PC160LC-7 has a dredging depth of 6.25 meters, a maximum horizontal reach of 9.23 meters, and features a monobloc boom.

What is the tear-out force of the Komatsu PC160LC-7?

The Komatsu PC160LC-7 has a tear-out force of 95 kN.

How much is a Komatsu PC160LC-7 Crawler excavator (2007u20132010) worth?

The residual value of the Komatsu PC160LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
