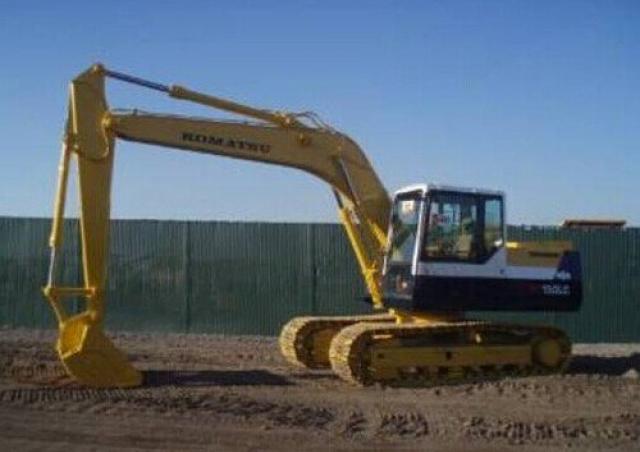

PC150LC-3 Komatsu excavator specs & Dimensions (1986 - 1993)

Komatsu PC150LC-3 is a Crawler Excavator manufactured from 1986 to 1993. It has a weight of 15.18 tons and a track width of 460 mm…

Komatsu PC150LC-3 is a Crawler Excavator manufactured from 1986 to 1993. It has a weight of 15.18 tons and a track width of 460 mm. The transport dimensions are 8.45 meters in length, 2.5 meters in width, and 2.82 meters in height. The dredging depth is 6.34 meters, with a maximum horizontal reach of 8.44 meters. The bucket width is 1.1 meters, and the bucket capacity is 0.75 cubic meters.

Crawler Excavators Komatsu PC150LC-3

Visit Komatsu live at

Technical specs - PC150LC-3 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.18 t
Transport length
8.45 m
Transport width
2.5 m
Transport height
2.82 m
Bucket capacity
0.75 m³
Undercarriage
LC
Track width
460 mm
Boom
MB
Max. Reach horizontal
8.44 m
Dredging depth
6.34 m
Bucket width
1.1 m
Model series
PC
Engine manuf.
Komatsu
Engine type
S6D95L
Engine power
74 kW
Displacement
4.89 l
Revolutions at max torque
2200 rpm
No. of cylinders
6
Cylinder bore x stroke
95x115 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC150LC-3 FAQ

When was the Komatsu PC150LC-3 manufactured?

The Komatsu PC150LC-3 was manufactured from 1986 to 1993.

How much does the Komatsu PC150LC-3 weigh?

The Komatsu PC150LC-3 weighs 15.18 tons.

What are the transport dimensions of the Komatsu PC150LC-3?

The Komatsu PC150LC-3 has a transport length of 8.45 meters, a transport width of 2.5 meters, and a transport height of 2.82 meters.

What are the undercarriage specifications of the Komatsu PC150LC-3?

The Komatsu PC150LC-3 has a long undercarriage and a track width of 460 mm.

What are the excavation performance specifications of the Komatsu PC150LC-3?

The Komatsu PC150LC-3 has a dredging depth of 6.34 meters, a maximum horizontal reach of 8.44 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool bucket on the Komatsu PC150LC-3?

The Komatsu PC150LC-3 has a bucket with a capacity of 0.75 cubic meters and a width of 1.1 meters.

How much is a Komatsu PC150LC-3 Crawler excavator (1986u20131993) worth?

The residual value of the Komatsu PC150LC-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
