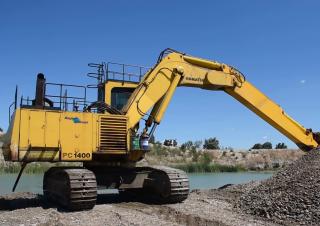

PC1400 Komatsu excavator specs & Dimensions (1999 - 2006)

Komatsu PC1400 is a Crawler Excavator manufactured from 1999 to 2006. It has a weight of 140 tons and a track width of 800 mm. The…

Komatsu PC1400 is a Crawler Excavator manufactured from 1999 to 2006. It has a weight of 140 tons and a track width of 800 mm. The transport width is 5.05 meters, and the transport height is 6.246 meters. The dredging depth is 8.2 meters, with a maximum horizontal reach of 14 meters. The bucket width is 3.56 meters, and the bucket capacity is 12 cubic meters.

Crawler Excavators Komatsu PC1400

Visit Komatsu live at

Technical specs - PC1400 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
140 t
Transport width
5.05 m
Transport height
6.246 m
Bucket capacity
12 m³
Undercarriage
SL
Track width
800 mm
Boom
MB
Max. Reach horizontal
14 m
Dredging depth
8.2 m
Bucket width
3.56 m
Model series
PC
Engine manuf.
Komatsu
Engine type
VTA28-C-800
Engine power
565 kW
Revolutions at max torque
1800 rpm
No. of cylinders
12

More technical details, like: transport length, bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC1400 FAQ

When was the Komatsu PC1400 manufactured?

The Komatsu PC1400 was manufactured from 1999 to 2006.

How much does the Komatsu PC1400 weigh?

The Komatsu PC1400 weighs 140 tons.

What are the transport dimensions of the Komatsu PC1400?

The Komatsu PC1400 has a transport width of 5.05 meters and a transport height of 6.25 meters.

What are the undercarriage specifications of the Komatsu PC1400?

The Komatsu PC1400 has a standard undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Komatsu PC1400?

The Komatsu PC1400 has a dredging depth of 8.2 meters, a maximum horizontal reach of 14 meters, and is equipped with a monobloc boom.

What are the bucket specifications of the Komatsu PC1400 crawler excavator?

The Komatsu PC1400 has a bucket capacity of 12 cubic meters and a bucket width of 3.56 meters.

How much is a Komatsu PC1400 Crawler excavator (1999u20132006) worth?

The residual value of the Komatsu PC1400 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
