PC128UU Komatsu excavator specs & Dimensions (1997 - 2004)

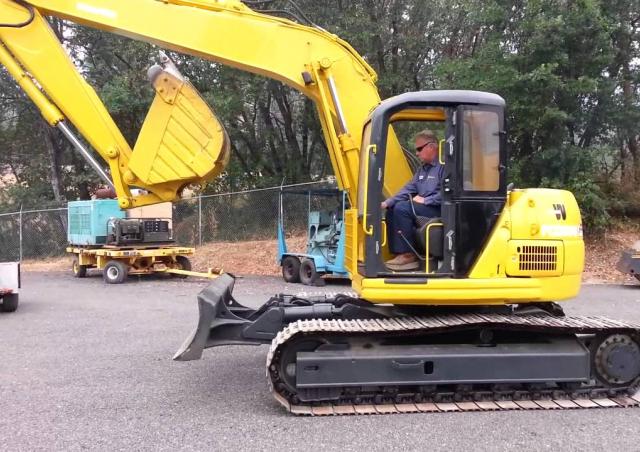

Komatsu PC128UU is a crawler excavator manufactured from 1997 to 2004. It has a weight of 13.1 tons and a track width of 500 mm. T…

Komatsu PC128UU is a crawler excavator manufactured from 1997 to 2004. It has a weight of 13.1 tons and a track width of 500 mm. The transport dimensions are 7.43 meters in length, 2.478 meters in width, and 2.775 meters in height. The dredging depth is 4.87 meters, with a maximum horizontal reach of 7.13 meters. The bucket width is 0.864 meters, and the bucket capacity is 0.6 cubic meters.

Crawler Excavators Komatsu PC128UU

Visit Komatsu live at

Technical specs - PC128UU Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.1 t
Transport length
7.43 m
Transport width
2.478 m
Transport height
2.775 m
Bucket capacity
0.6 m³
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
7.13 m
Dredging depth
4.87 m
Bucket width
0.864 m
Model series
PC
Engine manuf.
Komatsu
Engine type
S4D102E
Engine power
62.6 kW
Displacement
3.92 l
Revolutions at max torque
1900 rpm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC128UU FAQ

When was the Komatsu PC128UU manufactured?

The Komatsu PC128UU was manufactured from 1997 to 2004.

How much does the Komatsu PC128UU weigh?

The Komatsu PC128UU weighs 13.1 tons.

What are the transport dimensions of the Komatsu PC128UU?

The Komatsu PC128UU has a transport length of 7.43 meters, a transport width of 2.48 meters, and a transport height of 2.78 meters.

What are the undercarriage specifications of the Komatsu PC128UU?

The Komatsu PC128UU has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Komatsu PC128UU?

The Komatsu PC128UU has a dredging depth of 4.87 meters, a maximum horizontal reach of 7.13 meters, and is equipped with a monobloc boom.

What are the bucket specifications of the Komatsu PC128UU excavator?

The Komatsu PC128UU excavator has a bucket capacity of 0.6 cubic meters and a bucket width of 0.864 meters.

How much is a Komatsu PC128UU Crawler excavator (1997u20132004) worth?

The residual value of the Komatsu PC128UU depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
