PC1250LC-8 Komatsu excavator specs & Dimensions (2017 - 2026)

Komatsu PC1250LC-8 is a crawler excavator manufactured since 2017, with a weight of 115.25 tons. It features a track width of 700 …

Komatsu PC1250LC-8 is a crawler excavator manufactured since 2017, with a weight of 115.25 tons. It features a track width of 700 mm, a transport length of 16.02 meters, a transport width of 5.26 meters, and a transport height of 6.04 meters. The machine has a tear-out force of 479 kN, a dredging depth of 9.35 meters, and a maximum horizontal reach of 15.35 meters. The bucket width is 2.05 meters, and the bucket capacity is 5.2 cubic meters. Special equipment includes a blade and a diesel particulate filter.

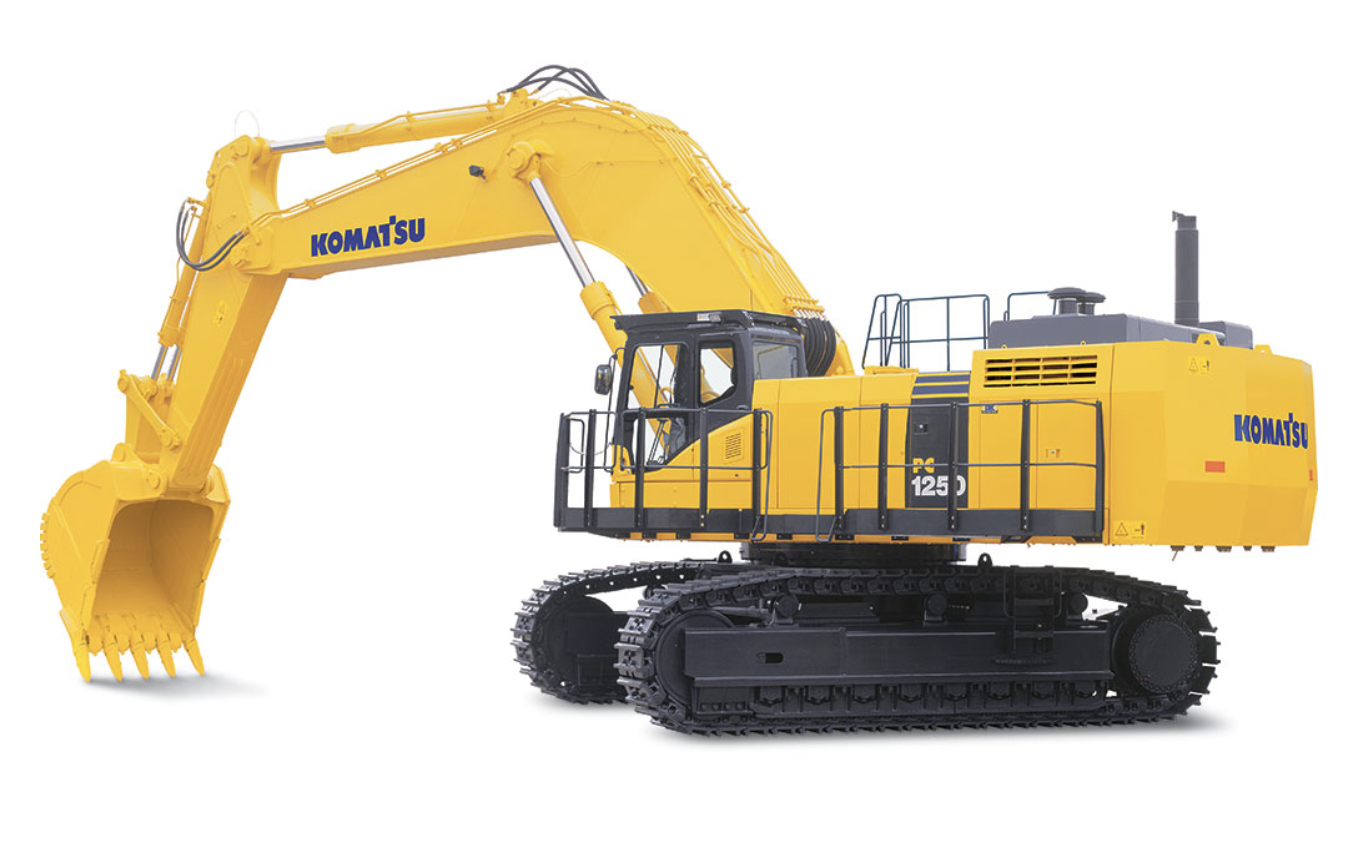

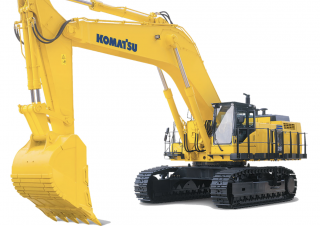

Crawler Excavators Komatsu PC1250LC-8
Crawler Excavators Komatsu PC1250LC-8
Crawler Excavators Komatsu PC1250LC-8
Crawler Excavators Komatsu PC1250LC-8

Visit Komatsu live at

Technical specs - PC1250LC-8 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
115.25 t
Transport length
16.02 m
Transport width
5.26 m
Transport height
6.04 m
Bucket capacity
5.2 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
15.35 m
Dredging depth
9.35 m
Tear-out force
479 kN
Bucket width
2.05 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D170E-5
Engine power
514 kW
Displacement
23.15 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Cylinder bore x stroke
170x170 mm
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC1250LC-8 FAQ

When was the Komatsu PC1250LC-8 manufactured?

The Komatsu PC1250LC-8 was first produced in 2017.

How much does the Komatsu PC1250LC-8 weigh?

The Komatsu PC1250LC-8 weighs 115.25 tons.

What are the transport dimensions of the Komatsu PC1250LC-8?

The Komatsu PC1250LC-8 has a transport length of 16.02 meters, a transport width of 5.26 meters, and a transport height of 6.04 meters.

What are the undercarriage specifications of the Komatsu PC1250LC-8?

The Komatsu PC1250LC-8 has a long undercarriage and a track width of 700 mm.

What are the excavation performance specifications of the Komatsu PC1250LC-8?

The Komatsu PC1250LC-8 has a dredging depth of 9.35 meters, a maximum horizontal reach of 15.35 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC1250LC-8?

The Komatsu PC1250LC-8 has a tear-out force of 479 kN.

What are the bucket specifications of the Komatsu PC1250LC-8 excavator?

The Komatsu PC1250LC-8 has a bucket capacity of 5.2 cubic meters and a bucket width of 2.05 meters.

How much is a Komatsu PC1250LC-8 Crawler excavator (2017u20132025) worth?

The residual value of the Komatsu PC1250LC-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
