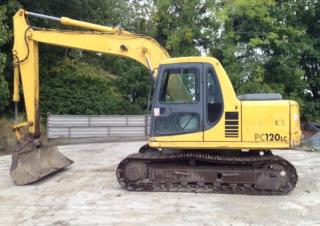

PC120LC-6 Komatsu excavator specs & Dimensions (2004 - 2011)

Komatsu PC120LC-6 is a Crawler Excavator manufactured from 2004 to 2011, with a weight of 12.871 tons. It features a track width o…

Komatsu PC120LC-6 is a Crawler Excavator manufactured from 2004 to 2011, with a weight of 12.871 tons. It features a track width of 500 mm, a transport length of 7.59 meters, a transport width of 2.49 meters, and a transport height of 2.715 meters. The machine has a dredging depth of 6.015 meters and a maximum horizontal reach of 8.665 meters. The bucket width is 1.067 meters, and the bucket capacity is 0.7 cubic meters.

Crawler Excavators Komatsu PC120LC-6

Visit Komatsu live at

Technical specs - PC120LC-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.871 t
Transport length
7.59 m
Transport width
2.49 m
Transport height
2.715 m
Bucket capacity
0.7 m³
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.665 m
Dredging depth
6.015 m
Bucket width
1.067 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA4D102E-2
Engine power
66.2 kW
Displacement
3.26 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Cylinder bore x stroke
95x115 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC120LC-6 FAQ

When was the Komatsu PC120LC-6 manufactured?

The Komatsu PC120LC-6 was manufactured from 2004 to 2011.

How much does the Komatsu PC120LC-6 weigh?

The Komatsu PC120LC-6 weighs 12.87 tons.

What are the transport dimensions of the Komatsu PC120LC-6?

The Komatsu PC120LC-6 has a transport length of 7.59 meters, a transport width of 2.49 meters, and a transport height of 2.72 meters.

What are the undercarriage specifications of the Komatsu PC120LC-6?

The Komatsu PC120LC-6 has a long undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Komatsu PC120LC-6?

The Komatsu PC120LC-6 has a dredging depth of 6.015 meters, a maximum horizontal reach of 8.665 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool on the Komatsu PC120LC-6?

The primary work tool of the Komatsu PC120LC-6 has a bucket capacity of 0.7 cubic meters and a bucket width of 1.067 meters.

How much is a Komatsu PC120LC-6 Crawler excavator (2004u20132011) worth?

The residual value of the Komatsu PC120LC-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
