HB335LC-1 Komatsu excavator specs & Dimensions (2022 - 2026)

Komatsu HB335LC-1 is a crawler excavator manufactured since 2022. It has a weight of 36.22 tons and a track width of 700 mm. The t…

Komatsu HB335LC-1 is a crawler excavator manufactured since 2022. It has a weight of 36.22 tons and a track width of 700 mm. The transport dimensions are 11.145 meters in length, 3.19 meters in width, and 3.285 meters in height. The excavator features a tear-out force of 227 kN, a dredging depth of 7.38 meters, and a maximum horizontal reach of 11.1 meters. The bucket width is 1.7 meters, with a capacity ranging from 0.48 m³ to 1.8 m³. Special equipment includes air conditioning and track adjustment.

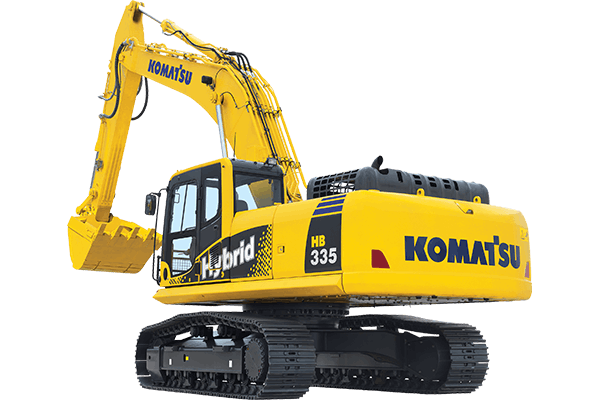

Crawler Excavators Komatsu HB335LC-1

Visit Komatsu live at

Technical specs - HB335LC-1 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.22 t
Transport length
11.145 m
Transport width
3.19 m
Transport height
3.285 m
Bucket capacity
1.8 m³
Bucket capacity min.
0.48 m³
Bucket capacity max.
1.8 m³
Track width
700 mm
Max. Reach horizontal
11.1 m
Dredging depth
7.38 m
Tear-out force
227 kN
Bucket width
1.7 m
Model series
HB
Engine manuf.
Komatsu
Engine type
SAA6D114E-5
Engine power
189 kW
Displacement
8.85 l
Revolutions at max torque
1950 rpm
No. of cylinders
6
Cylinder bore x stroke
114x145 mm
Emission level
Tier 3

More technical details, like: undercarriage, boom, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu HB335LC-1 FAQ

When was the Komatsu HB335LC-1 manufactured?

The Komatsu HB335LC-1 was first produced in 2022.

How much does the Komatsu HB335LC-1 weigh?

The Komatsu HB335LC-1 weighs 36.22 tons.

What are the transport dimensions of the Komatsu HB335LC-1?

The Komatsu HB335LC-1 has a transport length of 11.15 meters, a transport width of 3.19 meters, and a transport height of 3.29 meters.

What is the track width of the Komatsu HB335LC-1's undercarriage?

The Komatsu HB335LC-1 has a track width of 700 mm.

What are the excavation performance specifications of the Komatsu HB335LC-1?

The Komatsu HB335LC-1 has a dredging depth of 7.38 meters and a maximum horizontal reach of 11.1 meters.

What are the power ratings of the Komatsu HB335LC-1?

The source data does not provide power ratings for the Komatsu HB335LC-1.

What are the specifications of the bucket on the Komatsu HB335LC-1 crawler excavator?

The Komatsu HB335LC-1 has a bucket with a capacity ranging from 0.48 to 1.8 cubic meters and a width of 1.7 meters.

How much is a Komatsu HB335LC-1 Crawler excavator (2022u20132025) worth?

The residual value of the Komatsu HB335LC-1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu HB335LC-1 overview

Engine

Pioneering the New Era

Hybrid hydraulic excavator introduced in the 30-ton class. Komatsu has achieved hybrid technologies developed for the HB205-1MO/HB215LC-1MO in an even higher class.


Improved Fuel Efficiency by Total Vehicle Control with a Hybrid System and Fuel-efficient Engine

The HB335LC-1 incorporates the hybrid system developed for the HB205-1MO. The inverter, motor generator, electric swing motor and engine are optimally controlled to suit the work situation, reducing fuel consumption by 20%. Furthermore, Komatsu's SAA6D114E engine delivers the outstanding performance required for 30-ton class excavators. These components are coordinated through Komatsu's total vehicle control technology to make the most of the machine's full potential, resulting in a more powerful yet environment-friendly machine.


Advanced Komatsu Hybrid System

In Komatsu's unique hybrid system, the electric swing motor/generator captures and regenerates energy as the upper structure slows down and converts it into electric energy. The regenerated energy is stored in the capacitor and used by the generator/motor to assist the engine when it needs to accelerate. Thus, the hybrid system reduces fuel consumption significantly. Most components of the system are developed and manufactured by Komatsu (Except Capacitor cells).


Easy-to-understand Hybrid Operation Monitor Screen

Energy Management Screen The operation status of the hybrid system is displayed on the screen as energy flows, which include capacitor charging/discharging and engine assist by the generator/motor.


Hybrid Hydraulic Excavator Series

The HB335 Series much-awaited 30-ton class based on the hybrid technologies developed for the HB205-1MO/HB215LC-1MO. HB335LC-1 is great for civil engineering site with performance inherited from the conventional machines, and even greater with hybrid technologies.


Cab

New Equipment for Customers to Operation the Machine with Ease, Comfort and Safety

New high resolution 7" LCD monitor ECO guidance displayed in real time ECO-gauge and average fuel consumption monitor for energy saving operation Operation record, fuel consumption history, ECO guidance record are displayed ROPS cab (ISO 12117-2)
