SK 550 D LC 10 Kobelco excavator specs & Dimensions (2017 - 2020)

Kobelco SK 550 D LC 10 is a crawler excavator manufactured from 2017 to 2020. It has a weight of 62.8 tons and a track width of 60…

Kobelco SK 550 D LC 10 is a crawler excavator manufactured from 2017 to 2020. It has a weight of 62.8 tons and a track width of 600 mm. The transport dimensions are 19.89 meters in length, 2.99 meters in width, and 3.49 meters in height. The dredging depth is 6.26 meters, and the maximum horizontal reach is 27.53 meters. Special equipment includes air conditioning, cabin adjustment, a diesel particulate filter, an overload alert, a quick hitch hydraulic system, and track adjustment.

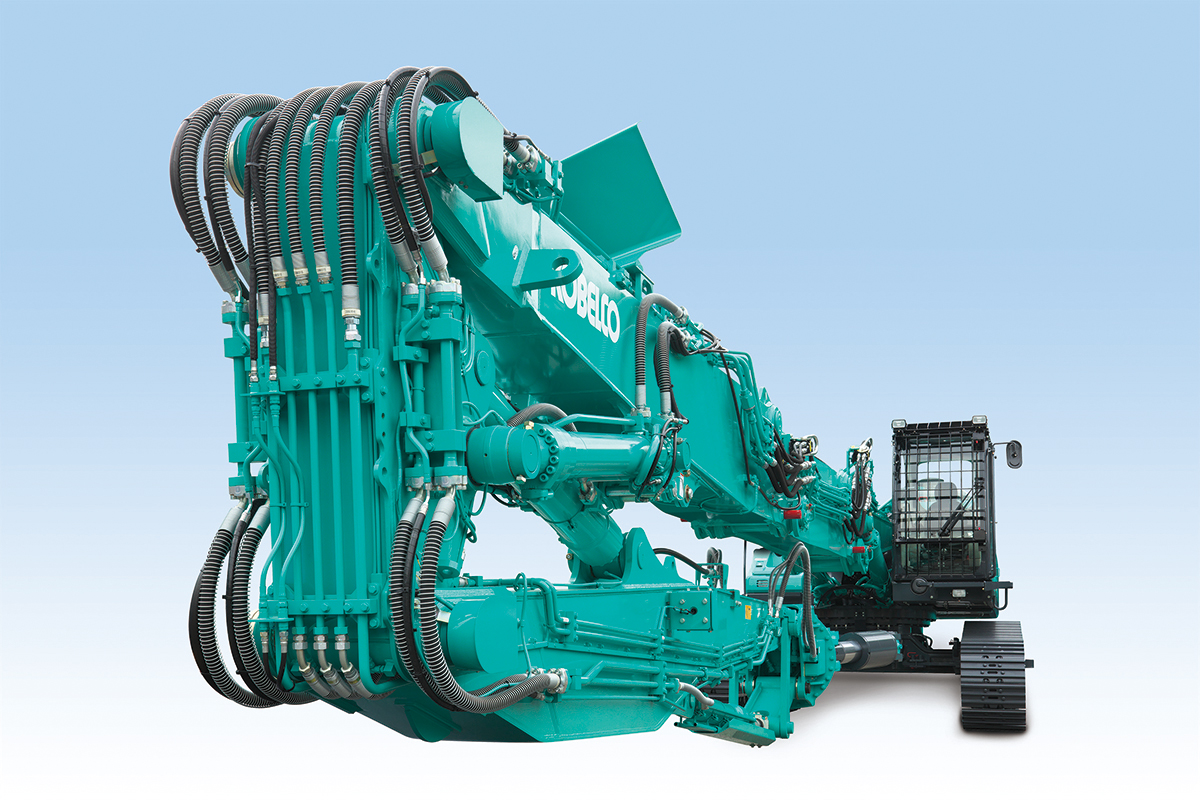

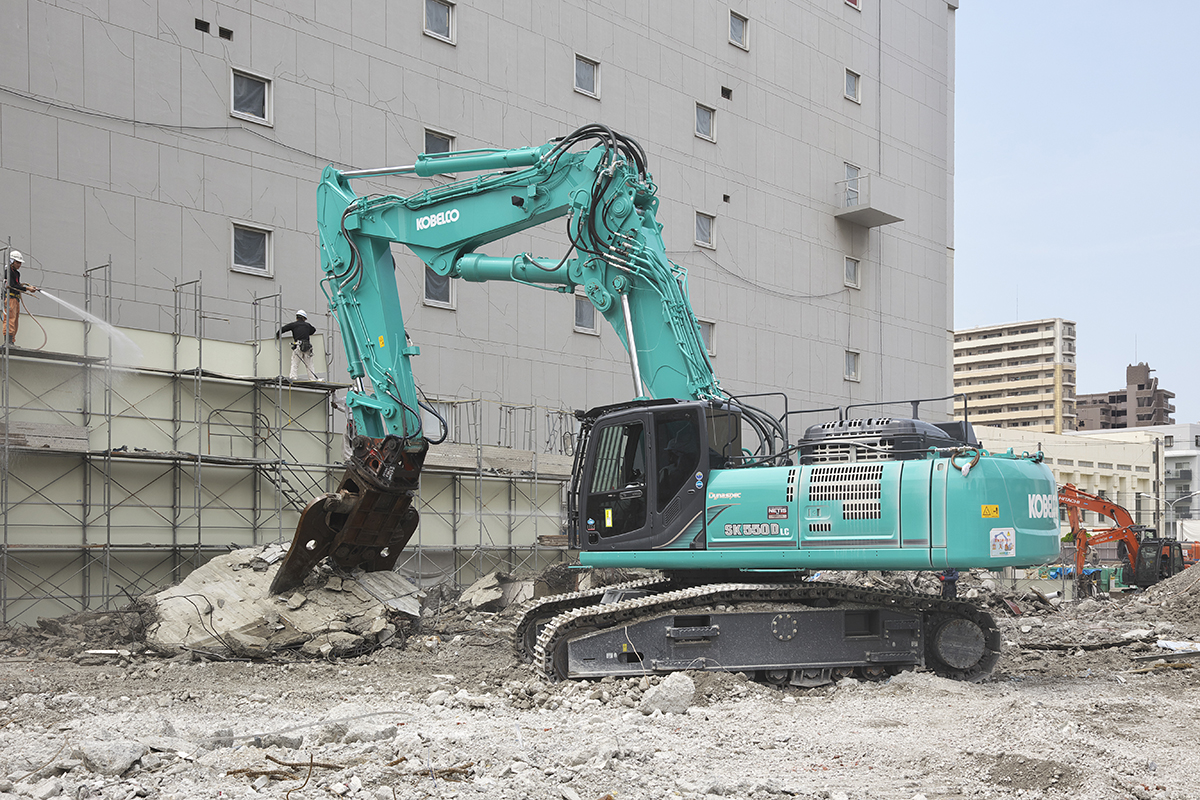

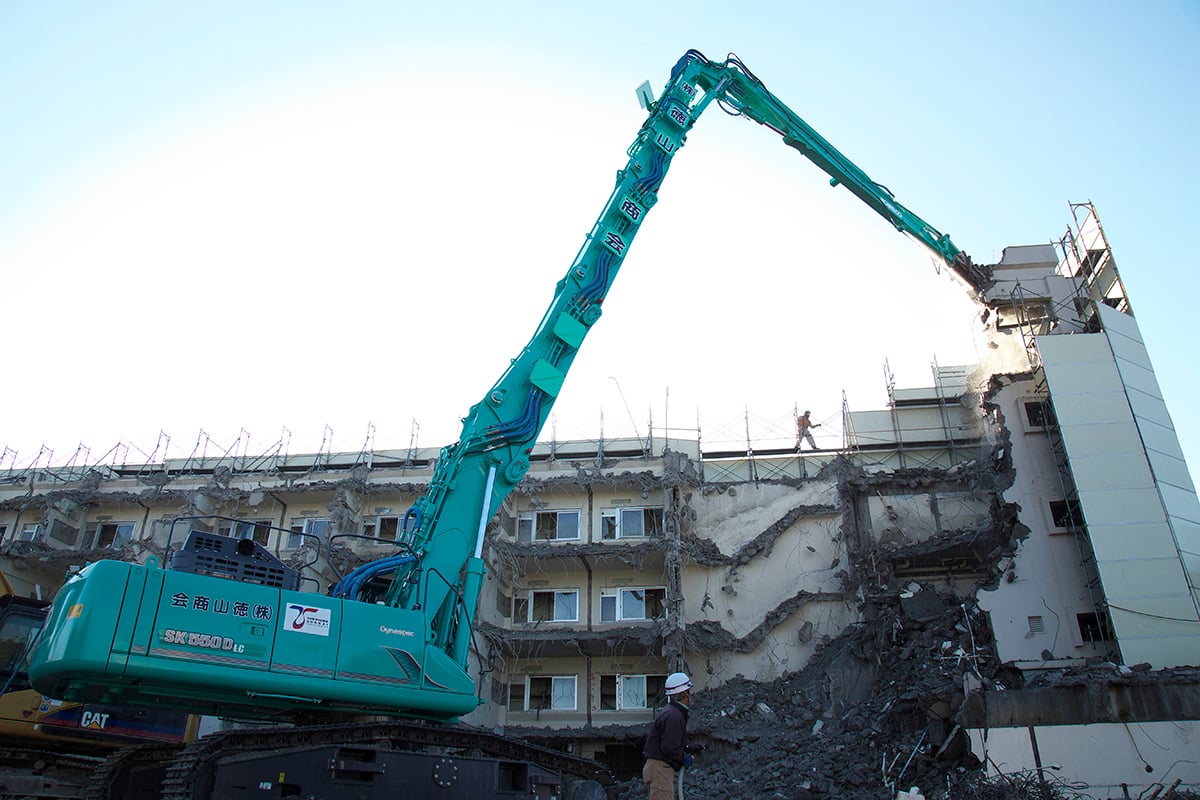

Crawler Excavators Kobelco SK 550 D LC 10
Crawler Excavators Kobelco SK 550 D LC 10
Crawler Excavators Kobelco SK 550 D LC 10
Crawler Excavators Kobelco SK 550 D LC 10
Crawler Excavators Kobelco SK 550 D LC 10
Crawler Excavators Kobelco SK 550 D LC 10

Visit Kobelco live at

Technical specs - SK 550 D LC 10 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
62.8 t
Transport length
19.89 m
Transport width
2.99 m
Transport height
3.49 m
Undercarriage
LCV
Track width
600 mm
Boom
MB
Max. Reach horizontal
27.53 m
Dredging depth
6.26 m
Engine manuf.
Hino
Engine type
P 11 C-VN
Engine power
271 kW
Displacement
10.52 l
Revolutions at max torque
1400 rpm
Max. torque
1470 Nm
No. of cylinders
6
Cylinder bore x stroke
122x150 mm
Emission level
Tier 4 Final

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., tear-out force, bucket width, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 550 D LC 10 FAQ

When was the Kobelco SK 550 D LC 10 manufactured?

The Kobelco SK 550 D LC 10 was manufactured from 2017 to 2020.

How much does the Kobelco SK 550 D LC 10 weigh?

The Kobelco SK 550 D LC 10 weighs 62.8 tons.

What are the transport dimensions of the Kobelco SK 550 D LC 10 crawler excavator?

The Kobelco SK 550 D LC 10 has a transport length of 19.89 meters, a transport width of 2.99 meters, and a transport height of 3.49 meters.

What are the undercarriage specifications of the Kobelco SK 550 D LC 10?

The Kobelco SK 550 D LC 10 has an undercarriage described as 'Long + hydr. extendable' and a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 550 D LC 10?

The Kobelco SK 550 D LC 10 has a dredging depth of 6.26 meters, a maximum horizontal reach of 27.53 meters, and is equipped with a monobloc boom.

How much is a Kobelco SK 550 D LC 10 Crawler excavator (2017u20132020) worth?

The residual value of the Kobelco SK 550 D LC 10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
