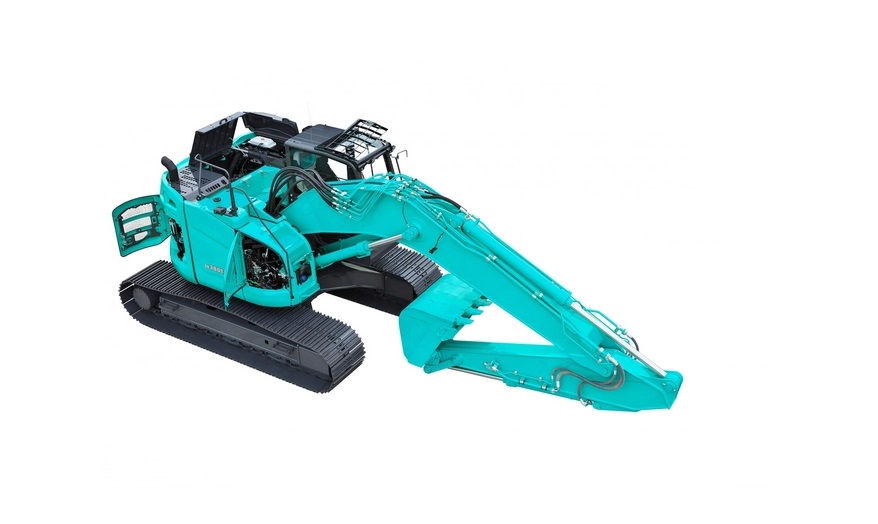

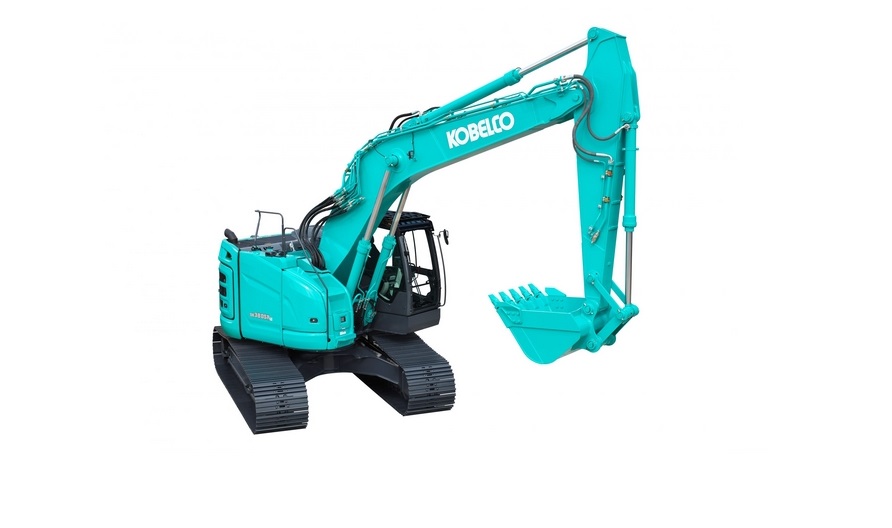

SK 380 SRLC Kobelco excavator specs & Dimensions (2021 - 2023)

Kobelco SK 380 SRLC is a Crawler Excavator manufactured since 2021. It has a weight of 37.6 tons and a track width of 600 mm. The …

Kobelco SK 380 SRLC is a Crawler Excavator manufactured since 2021. It has a weight of 37.6 tons and a track width of 600 mm. The transport dimensions are 9.47 meters in length, 3.19 meters in width, and 3.53 meters in height. The excavator features a tear-out force of 139 kN, a dredging depth of 6.86 meters, and a maximum horizontal reach of 11 meters. The bucket width is 1.49 meters with a capacity of 1.2 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC

Visit Kobelco live at

Technical specs - SK 380 SRLC Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37.6 t
Transport length
9.47 m
Transport width
3.19 m
Transport height
3.53 m
Bucket capacity
1.2 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
11 m
Dredging depth
6.86 m
Tear-out force
139 kN
Bucket width
1.49 m
Model series
SK
Engine manuf.
Hino
Engine type
J 08 EYD-KSDS
Engine power
200 kW
Displacement
7.684 l
Revolutions at max torque
1600 rpm
Max. torque
1017 Nm
No. of cylinders
6
Cylinder bore x stroke
112x130 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 380 SRLC FAQ

When was the Kobelco SK 380 SRLC manufactured?

The Kobelco SK 380 SRLC was first produced in 2021.

How much does the Kobelco SK 380 SRLC weigh?

The Kobelco SK 380 SRLC weighs 37.6 tons.

What are the transport dimensions of the Kobelco SK 380 SRLC?

The Kobelco SK 380 SRLC has a transport length of 9.47 meters, a transport width of 3.19 meters, and a transport height of 3.53 meters.

What is the fuel consumption range of the Kobelco SK 380 SRLC?

The fuel consumption range of the Kobelco SK 380 SRLC is 8.6 to 20.6 liters per hour.

What are the undercarriage specifications of the Kobelco SK 380 SRLC?

The Kobelco SK 380 SRLC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 380 SRLC?

The Kobelco SK 380 SRLC has an adjustable boom, a maximum horizontal reach of 11 meters, and a dredging depth of 6.86 meters.

What is the tear-out force of the Kobelco SK 380 SRLC, the only available power-related specification?

The Kobelco SK 380 SRLC has a tear-out force of 139 kN, which is a measure of force rather than a direct power rating.

What are the specifications of the primary work tool on the Kobelco SK 380 SRLC?

The primary work tool of the Kobelco SK 380 SRLC has a bucket capacity of 1.2 cubic meters and a bucket width of 1.49 meters.

How much is a Kobelco SK 380 SRLC Crawler excavator (2021u20132025) worth?

The residual value of the Kobelco SK 380 SRLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
