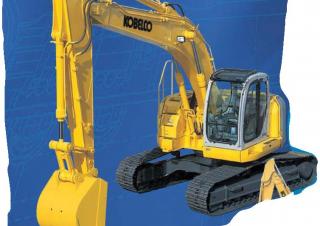

SK 200 SRLC Kobelco excavator specs & Dimensions (2003 - 2004)

Kobelco SK 200 SRLC is a crawler excavator manufactured from 2003 to 2004. It has a weight of 20.4 tons and a track width of 600 m…

Kobelco SK 200 SRLC is a crawler excavator manufactured from 2003 to 2004. It has a weight of 20.4 tons and a track width of 600 mm. The transport dimensions are 8.2 meters in length, 3.19 meters in width, and 3.06 meters in height. The bucket width is 0.914 meters. This model includes special equipment such as air conditioning, material handling capabilities, and an overload alert system.

Crawler Excavators Kobelco SK 200 SRLC

Visit Kobelco live at

Technical specs - SK 200 SRLC Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.4 t
Transport length
8.2 m
Transport width
3.19 m
Transport height
3.06 m
Bucket capacity
0.8 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.23 m
Dredging depth
6.15 m
Bucket width
0.914 m
Engine manuf.
Isuzu
Engine type
AA 4 BG 1 TC
Engine power
91.9 kW
Displacement
4.33 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 200 SRLC FAQ

When was the Kobelco SK 200 SRLC manufactured?

The Kobelco SK 200 SRLC was manufactured from 2003 to 2004.

How much does the Kobelco SK 200 SRLC weigh?

The Kobelco SK 200 SRLC weighs 20.4 tons.

What are the transport dimensions of the Kobelco SK 200 SRLC?

The Kobelco SK 200 SRLC has a transport length of 8.2 meters, a transport width of 3.19 meters, and a transport height of 3.06 meters.

What are the undercarriage specifications of the Kobelco SK 200 SRLC?

The Kobelco SK 200 SRLC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 200 SRLC?

The Kobelco SK 200 SRLC has a dredging depth of 6.15 meters, a maximum horizontal reach of 10.23 meters, and features a monobloc boom.

What are the specifications of the primary work tool on the Kobelco SK 200 SRLC?

The primary work tool of the Kobelco SK 200 SRLC has a bucket capacity of 0.8 cubic meters and a bucket width of 0.914 meters.

How much is a Kobelco SK 200 SRLC Crawler excavator (2003u20132004) worth?

The residual value of the Kobelco SK 200 SRLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
