SK 200-III Kobelco excavator specs & Dimensions (1992 - 1996)

Model rating
5,00 / 10

Kobelco SK 200-III is a crawler excavator manufactured from 1992 to 1996. It has a weight of 20.7 tons and a track width of 600 mm…

Kobelco SK 200-III is a crawler excavator manufactured from 1992 to 1996. It has a weight of 20.7 tons and a track width of 600 mm. The transport dimensions are 9.41 meters in length, 2.8 meters in width, and 2.93 meters in height. The machine features a tear-out force of 143 kN and a bucket capacity of 1 cubic meter.

Crawler Excavators Kobelco SK 200-III

Visit Kobelco live at

Technical specs - SK 200-III Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.7 t
Transport length
9.41 m
Transport width
2.8 m
Transport height
2.93 m
Bucket capacity
1 m³
Track width
600 mm

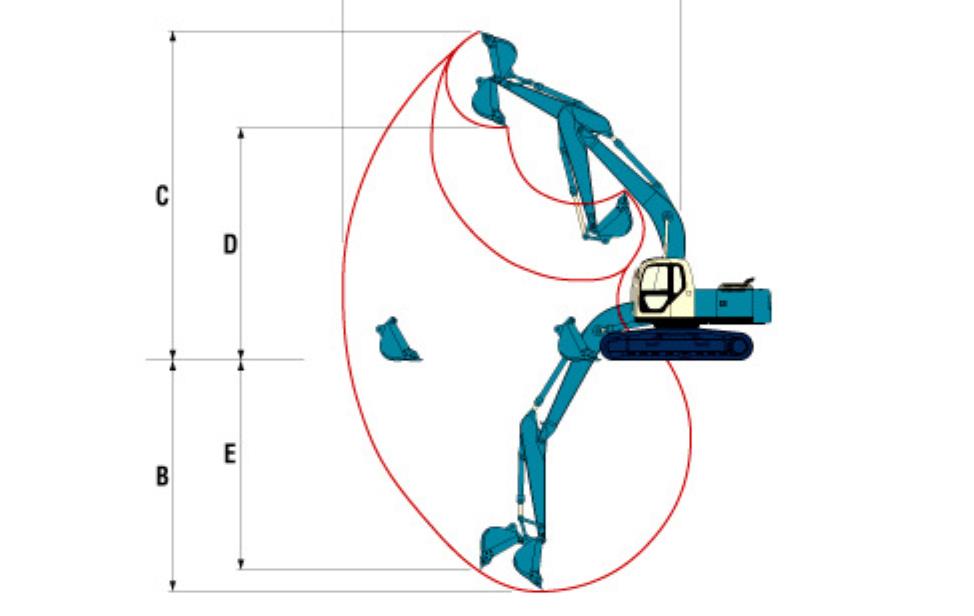

Max. Reach horizontal
9.6 m
Dredging depth
6.7 m
Tear-out force
143 kN
Engine manuf.
Mitsubishi
Engine type
6 D 31 T
Engine power
110 kW
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 200-III FAQ

When was the Kobelco SK 200-III manufactured?

The Kobelco SK 200-III was manufactured from 1992 to 1996.

How much does the Kobelco SK 200-III weigh?

The Kobelco SK 200-III weighs 20.7 tons.

What are the transport dimensions of the Kobelco SK 200-III?

The Kobelco SK 200-III has a transport length of 9.41 meters, a transport width of 2.8 meters, and a transport height of 2.93 meters.

What is the track width of the Kobelco SK 200-III's undercarriage?

The Kobelco SK 200-III has a track width of 600 mm on its undercarriage.

What are the excavation specifications of the Kobelco SK 200-III?

The Kobelco SK 200-III has a dredging depth of 6.7 meters and a maximum horizontal reach of 9.6 meters.

What is the tear-out force of the Kobelco SK 200-III?

The Kobelco SK 200-III has a tear-out force of 143 kN.

What is the bucket capacity of the Kobelco SK 200-III?

The Kobelco SK 200-III has a bucket capacity of 1 cubic meter.

How much is a Kobelco SK 200-III Crawler excavator (1992u20131996) worth?

The residual value of the Kobelco SK 200-III depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
