SK 170 LC Kobelco excavator specs & Dimensions (2003 - 2004)

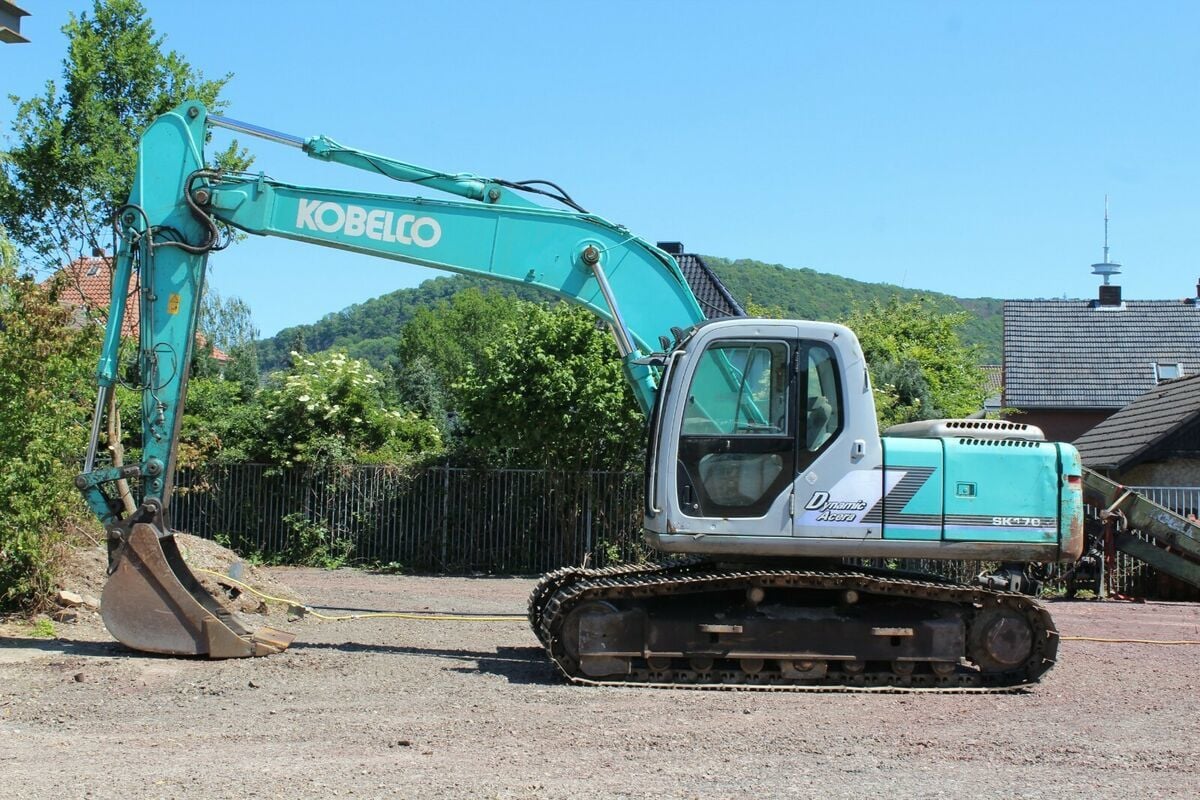

Kobelco SK 170 LC is a crawler excavator manufactured from 2003 to 2004, with a weight of 17.3 tons and a track width of 600 mm. I…

Kobelco SK 170 LC is a crawler excavator manufactured from 2003 to 2004, with a weight of 17.3 tons and a track width of 600 mm. It has a tear-out force of 124 kN and comes equipped with air conditioning, material handling capabilities, and an overload alert system.

Crawler Excavators Kobelco SK 170 LC

Visit Kobelco live at

Technical specs - SK 170 LC Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.3 t
Bucket capacity
0.93 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Dredging depth
6.1 m
Tear-out force
124 kN
Engine manuf.
Mitsubishi
Engine type
6 D 34 TLU 2 A
Engine power
83 kW

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., max. reach horizontal, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., max. reach horizontal, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Kobelco SK 170 LC FAQ

When was the Kobelco SK 170 LC manufactured?

The Kobelco SK 170 LC was manufactured from 2003 to 2004.

How much does the Kobelco SK 170 LC weigh?

The Kobelco SK 170 LC weighs 17.3 tons.

What are the undercarriage specifications of the Kobelco SK 170 LC?

The Kobelco SK 170 LC has a long undercarriage and a track width of 600 mm.

What are the excavation specifications of the Kobelco SK 170 LC?

The Kobelco SK 170 LC has a dredging depth of 6.1 meters and is equipped with a Monobloc boom.

What is the tear-out force of the Kobelco SK 170 LC?

The Kobelco SK 170 LC has a tear-out force of 124 kN.

What is the bucket capacity of the Kobelco SK 170 LC excavator?

The Kobelco SK 170 LC excavator has a bucket capacity of 0.93 cubic meters.

How much is a Kobelco SK 170 LC Crawler excavator (2003u20132004) worth?

The residual value of the Kobelco SK 170 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
