SK 135 SRLC Kobelco excavator specs & Dimensions (1999 - 2003)

Model rating
10,00 / 10

Kobelco SK 135 SRLC is a crawler excavator manufactured from 1999 to 2003, with a weight of 14 tons. It features a track width of …

Kobelco SK 135 SRLC is a crawler excavator manufactured from 1999 to 2003, with a weight of 14 tons. It features a track width of 600 mm, a transport length of 7.47 meters, a transport width of 2.59 meters, and a transport height of 2.81 meters. The excavator is equipped with air conditioning.

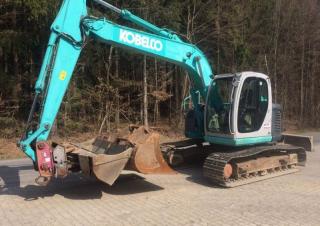

Crawler Excavators Kobelco SK 135 SRLC
Crawler Excavators Kobelco SK 135 SRLC
Crawler Excavators Kobelco SK 135 SRLC
Crawler Excavators Kobelco SK 135 SRLC

Visit Kobelco live at

Technical specs - SK 135 SRLC Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14 t
Transport length
7.47 m
Transport width
2.59 m
Transport height
2.81 m
Bucket capacity
0.7 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
8.86 m
Dredging depth
6.01 m
Tear-out force
8.62 kN
Engine manuf.
Isuzu
Engine type
A 4 BG 1 T
Engine power
63 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 135 SRLC FAQ

When was the Kobelco SK 135 SRLC manufactured?

The Kobelco SK 135 SRLC was manufactured from 1999 to 2003.

How much does the Kobelco SK 135 SRLC weigh?

The Kobelco SK 135 SRLC weighs 14 tons.

What are the transport dimensions of the Kobelco SK 135 SRLC?

The Kobelco SK 135 SRLC has a transport length of 7.47 meters, a transport width of 2.59 meters, and a transport height of 2.81 meters.

What are the undercarriage specifications of the Kobelco SK 135 SRLC?

The Kobelco SK 135 SRLC has a long undercarriage with a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Kobelco SK 135 SRLC?

The Kobelco SK 135 SRLC has a dredging depth of 6.01 meters and a maximum horizontal reach of 8.86 meters.

What is the tear-out force of the Kobelco SK 135 SRLC?

The Kobelco SK 135 SRLC has a tear-out force of 8.62 kN.

What is the bucket capacity of the Kobelco SK 135 SRLC excavator?

The Kobelco SK 135 SRLC excavator has a bucket capacity of 0.7 cubic meters.

How much is a Kobelco SK 135 SRLC Crawler excavator (1999u20132003) worth?

The residual value of the Kobelco SK 135 SRLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
