SK 135 SR 2 Kobelco excavator specs & Dimensions (2021 - 2026)

Kobelco SK 135 SR 2 is a Crawler Excavator manufactured since 2021, with a weight of 14.2 tons. It features a track width of 500 m…

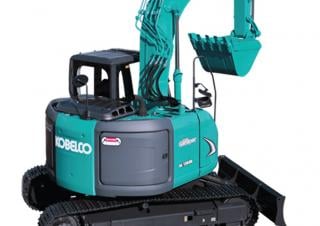

Kobelco SK 135 SR 2 is a Crawler Excavator manufactured since 2021, with a weight of 14.2 tons. It features a track width of 500 mm, a transport length of 7.49 meters, a transport width of 2.49 meters, and a transport height of 2.82 meters. The excavator has a tear-out force of 90.1 kN, a dredging depth of 5.98 meters, and a maximum horizontal reach of 8.9 meters. The bucket capacity ranges from 0.38 m³ to 0.57 m³. It is equipped with air conditioning as special equipment.

Crawler Excavators Kobelco SK 135 SR 2

Visit Kobelco live at

Technical specs - SK 135 SR 2 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.2 t
Transport length
7.49 m
Transport width
2.49 m
Transport height
2.82 m
Bucket capacity min.
0.38 m³
Bucket capacity max.
0.57 m³
Track width
500 mm
Max. Reach horizontal
8.9 m
Dredging depth
5.98 m
Tear-out force
90.1 kN
Model series
SK
Engine manuf.
Mitsubishi
Engine type
D04FR
Engine power
74 kW
Displacement
4.249 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Cylinder bore x stroke
102x130 mm
Emission level
Tier II/ IIIA

More technical details, like: bucket capacity, undercarriage, boom, bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 135 SR 2 FAQ

When was the Kobelco SK 135 SR 2 manufactured?

The Kobelco SK 135 SR 2 was first produced in 2021.

How much does the Kobelco SK 135 SR 2 weigh?

The Kobelco SK 135 SR 2 weighs 14.2 tons.

What are the transport dimensions of the Kobelco SK 135 SR 2?

The Kobelco SK 135 SR 2 has a transport length of 7.49 meters, a transport width of 2.49 meters, and a transport height of 2.82 meters.

What is the track width of the Kobelco SK 135 SR 2's undercarriage?

The Kobelco SK 135 SR 2 has a track width of 500 mm.

What are the excavation performance specifications of the Kobelco SK 135 SR 2?

The Kobelco SK 135 SR 2 has a dredging depth of 5.98 meters and a maximum horizontal reach of 8.9 meters.

What is the tear-out force of the Kobelco SK 135 SR 2?

The Kobelco SK 135 SR 2 has a tear-out force of 90.1 kN.

What are the bucket capacity specifications of the Kobelco SK 135 SR 2 excavator?

The Kobelco SK 135 SR 2 excavator has a bucket capacity ranging from 0.38 to 0.57 cubic meters.

How much is a Kobelco SK 135 SR 2 Crawler excavator (2021u20132025) worth?

The residual value of the Kobelco SK 135 SR 2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
