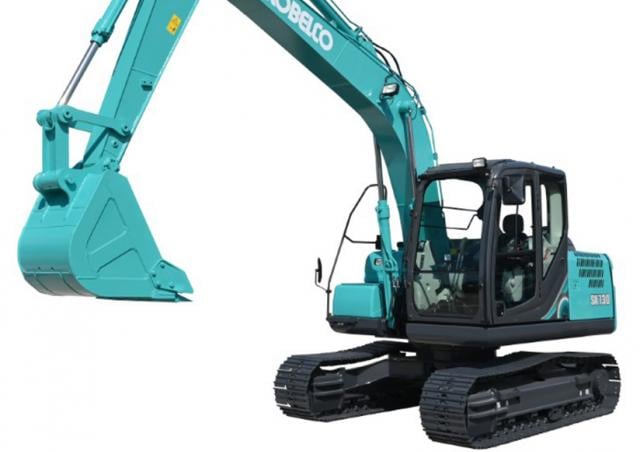

SK 130 10 Kobelco excavator specs & Dimensions (2022 - 2026)

Kobelco SK 130 10 is a Crawler Excavator manufactured since 2022. It has a weight of 13.5 tons and a track width of 500 mm. The tr…

Kobelco SK 130 10 is a Crawler Excavator manufactured since 2022. It has a weight of 13.5 tons and a track width of 500 mm. The transport dimensions are 7.8 meters in length, 2.49 meters in width, and 2.87 meters in height. The machine features a tear-out force of 142 kN, a dredging depth of 5.52 meters, and a maximum horizontal reach of 8.34 meters. The bucket width is 1.1 meters, with a capacity ranging from 0.35 to 0.57 cubic meters, and a standard capacity of 0.5 cubic meters. Special equipment includes air conditioning, cabin adjustment, a diesel particulate filter, overload alert, and track adjustment.

Crawler Excavators Kobelco SK 130 10

Visit Kobelco live at

Technical specs - SK 130 10 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Transport length
7.8 m
Transport width
2.49 m
Transport height
2.87 m
Bucket capacity
0.5 m³
Bucket capacity min.
0.35 m³
Bucket capacity max.
0.57 m³
Track width
500 mm
Max. Reach horizontal
8.34 m
Dredging depth
5.52 m
Tear-out force
142 kN
Bucket width
1.1 m
Model series
SK
Engine manuf.
Mitsubishi
Engine type
D04FR
Engine power
74 kW
Displacement
4.249 l
Revolutions at max torque
2000 rpm
Max. torque
375 Nm
No. of cylinders
4
Cylinder bore x stroke
102x130 mm

More technical details, like: undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 130 10 FAQ

When was the Kobelco SK 130 10 manufactured?

The Kobelco SK 130 10 was first produced in 2022.

How much does the Kobelco SK 130 10 weigh?

The Kobelco SK 130 10 weighs 13.5 tons.

What are the transport dimensions of the Kobelco SK 130 10 crawler excavator?

The Kobelco SK 130 10 has a transport length of 7.8 meters, a transport width of 2.49 meters, and a transport height of 2.87 meters.

What is the track width of the Kobelco SK 130 10's undercarriage?

The Kobelco SK 130 10 has a track width of 500 mm.

What are the excavation performance specifications of the Kobelco SK 130 10?

The Kobelco SK 130 10 has a dredging depth of 5.52 meters and a maximum horizontal reach of 8.34 meters.

What is the tear-out force of the Kobelco SK 130 10?

The Kobelco SK 130 10 has a tear-out force of 142 kN.

What are the specifications of the primary work tool on the Kobelco SK 130 10?

The primary work tool of the Kobelco SK 130 10 is a bucket with a capacity ranging from 0.35 to 0.57 cubic meters, a standard capacity of 0.5 cubic meters, and a width of 1.1 meters.

How much is a Kobelco SK 130 10 Crawler excavator (2022u20132025) worth?

The residual value of the Kobelco SK 130 10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
