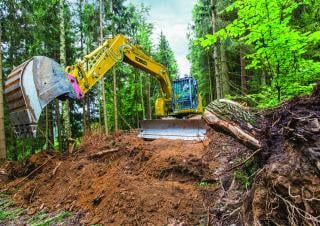

Kobelco ED 160 BR 5 excavator specs & Dimensions (2016 - 2019)

Name: Kobelco ED 160 BR 5 Crawler Excavators
Brand: Kobelco

Kobelco ED 160 BR 5 is a Crawler Excavator manufactured from 2016 to 2019. It has a weight of 16.3 tons and a track width of 500 m…

Kobelco ED 160 BR 5 is a Crawler Excavator manufactured from 2016 to 2019. It has a weight of 16.3 tons and a track width of 500 mm. The transport dimensions are 8.53 meters in length, 2.59 meters in width, and 3.03 meters in height. The excavator features a tear-out force of 64.4 kN, a dredging depth of 5.82 meters, and a maximum horizontal reach of 8.78 meters. It comes with a bucket width of 0.9 meters and a bucket capacity of 0.5 cubic meters. Special equipment includes air conditioning, a blade, and an overload alert system.

ED 160 BR 5

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - ED 160 BR 5 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.3 t

Transport length: 8.53 m

Transport width: 2.59 m

Transport height: 3.03 m

Bucket capacity: 0.5 m³

Undercarriage: LC

Track width: 500 mm

Boom: MB

Max. Reach horizontal: 8.78 m

Dredging depth: 5.82 m

Tear-out force: 64.4 kN

Bucket width: 0.9 m

Engine manuf.: Isuzu

Engine type: AR 4JJ1X

Engine power: 78.5 kW

Displacement: 2.999 l

Revolutions at max torque: 1800 rpm

Max. torque: 375 Nm

No. of cylinders: 4

Cylinder bore x stroke: 95.4x104.9 mm

Emission level: Tier 4 Final

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: Yes
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No
