NXT 140 JCB excavator specs & Dimensions (2019 - 2026)

NXT Level of Connect

All new LiveLink with enhanced features: Service - Health monitoring & alerts Operation - Utilisation reports Security - Geofencing, time curfew, tow-away alert, fuel level drop alert Now be assured of your JCB excavator’s service, operation and security with the advanced telematics system called LiveLink.

Because Intelligence Empowers

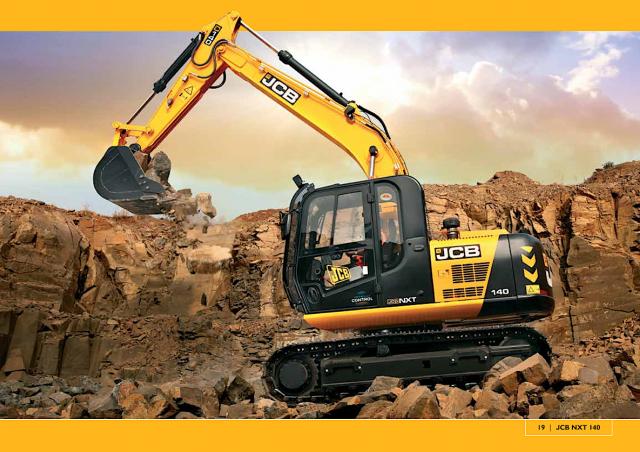

JCB presents an advanced 14 tonne excavation solution that shows you everything you want to see in real-time. The JCB NXT 140, loaded with IntelliControl, gives you a complete view of the entire operations so that you can optimise your machine’s performance and health. Experience intelligence, be empowered.

Highly Skilled JCB Engineers for Excavators

JCB's highly skilled engineers are there for you to maximise your profitability and reduce downtime. Our engineers are always there to serve you in a better way.

Smart Serve

Our service engineers are equipped with Smart Serve technology which enables JCB to send the closest engineer to the machine, ensuring maximum uptime.

NXT Level of comfort & ease of use

New 7” colour LCD display - IntelliControl Rotary dial controlled engine speed & mode selection. Large cabin with thin & low effort joystick.

Nxt level of efficiency

ECOHydraulics have been designed to make the hydraulics more efficient by reducing losses in the system. These help in reducing fuel consumption and provide savings. Auto idler reduces engine speed automatically when the machine is not at work, thus saving fuel. The one touch idler system, activated through the switch provided on the RH Joystick, reduces the engine speed instantaneously to low idle whenever required, further helping to reduce fuel consumption.

NXT Level of Performance

New Power Plus mode for 6% higher output. Regenerative hydraulic circuit. High operating weight for high stability & lift capacity.

Hydraulic System

A variable flow system with flow on demand, variable power output and servo operated, multi-function open centre control. 3 Work modes: Eco, Power & Power+. Main pumps: 2 variable displacement axial piston type. Maximum flow: 2 x 120 L/min. Servo pump: Gear type. Maximum flow: 20 L/min. Control valve: A combined four and five spool control valve with auxiliary service spool, as standard. When required, twin pump flow is combined to boom, dipper and bucket services for greater speed and efficiency. Relief valve settings: Boom / Arm / Bucket 330 bar, Swing circuit 279 bar, Travel circuit 330 bar, Pilot control 40 bar.

Weight and Ground Bearing Pressure

Standard machine with bucket, operator, full capacity lubes and fuel. Operating weight: 14,320 kg. Ground bearing pressure: 0.52 kg/sq.cm.

Excavator Bucket

All buckets are JCB type full-welded, steel with sealed, hardened steel pivot pins and replaceable wear parts. Bucket size Capacity Max. width toe plate 1040 mm 0.63 cu.m 1156 mm 0.72 cu.m.

NXT Level of reliability

Heavy duty track chain & lower frame Reinforced boom & arm One global quality - Industry best components

Forces

Unmatched digger forces enable faster cycle time. Bucket tear out force 8974 lbf. Arm digging force 7401 kgf.

Swing System

Swing motor : Axial piston type. Swing brake : Hydraulic braking plus, spring applied disc type parking brake. Final drive : Planetary reduction. Swing gear : Large diameter, internally-toothed fully sealed grease bath lubricated. Swing speed : 13.6 RPM.

Undercarriage

Construction : Fully welded, X-frame type with central belly guarding and sloping side members with dirt relief holes under top rollers. Track Shoe : 500mm (Standard) Upper & lower rollers : Heat-treated, sealed and lubricated. Track adjustment : Grease cylinder type Track idler : Sealed and lubricated, with spring enhanced recoil. No. of track guides : 1 per side No. of lower rollers : 7 per side No. of upper rollers : 1 per side No. of track shoes : 44 per side

Cabin Features

Wide and rubber coated footrests provide excellent grip and excellent travel control. Higher visibility and safe operations with single piece right hand side and front roof corner glass. Powerful AC option to cool the cab with the multi-position wind outlet points from the back, front and bottom side. New fully adjustable seat with enhanced backrest support gives excellent comfort to the operator and leads to fatigue free operation for longer hours. Cabin is of pressed steel with large internal space and excellent overall visibility. Cab is mounted on 6 nos. viscous mounts to absorb vibration that ensures comfort for the operator.

Cab

Press steel with high strength rolled section frame. Excellent digging, loading and positioning visibility. Parallelogram wiper. Fresh air ventilation and operator face fan. Fully adjustable deluxe suspension seat with arm rest adjustment and backrest recline.

Controls

Excavator : All servo lever operated to ISO control pattern, independently adjustable to the seat. Tracks : Individually servo operated by foot pedal or hand lever. Auxiliary : Via servo operated foot pedal. Horn : Operated via servo lever mounted button.

Standard Equipment

Engine fan guard Turbine type air pre-cleaner FM radio and music player with speakers Auxiliary pipe work mounting brackets Boom and mainframe mounted work lights Cab & counterweight mounted work lights Undercarriage belly guards Upper structure under covers Tool Kit Handrail and non-slippery walking space Windscreen wiper and washer Radiator flymesh Mirror on cab grabrail LiveLink Heavy duty track motor cover Front cab guard 500 mm track shoe

Optional Equipment

Fully-ducted, air-conditioned cab (Cooling only) Top cab guard Mirror on handrail RH Refuel pump Rockbreaker Rockbreaker pipe work Ripper tooth Option of 0.72 & 0.63 cu.m buckets Trench bucket (490mm) First aid kit Fire extinguisher Reflectors Cold start kit Rear view camera Light guards 600/700 mm track shoe
