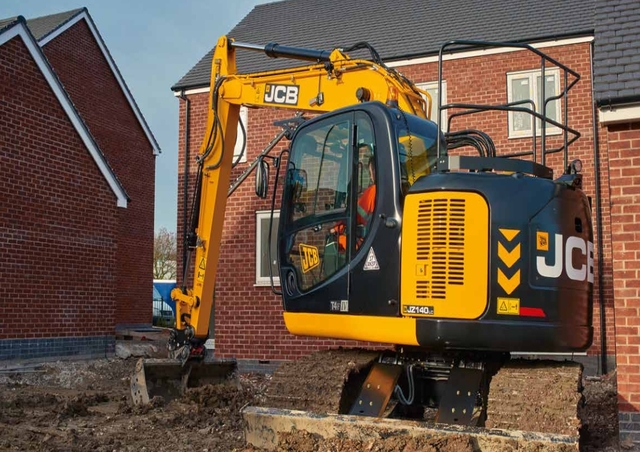

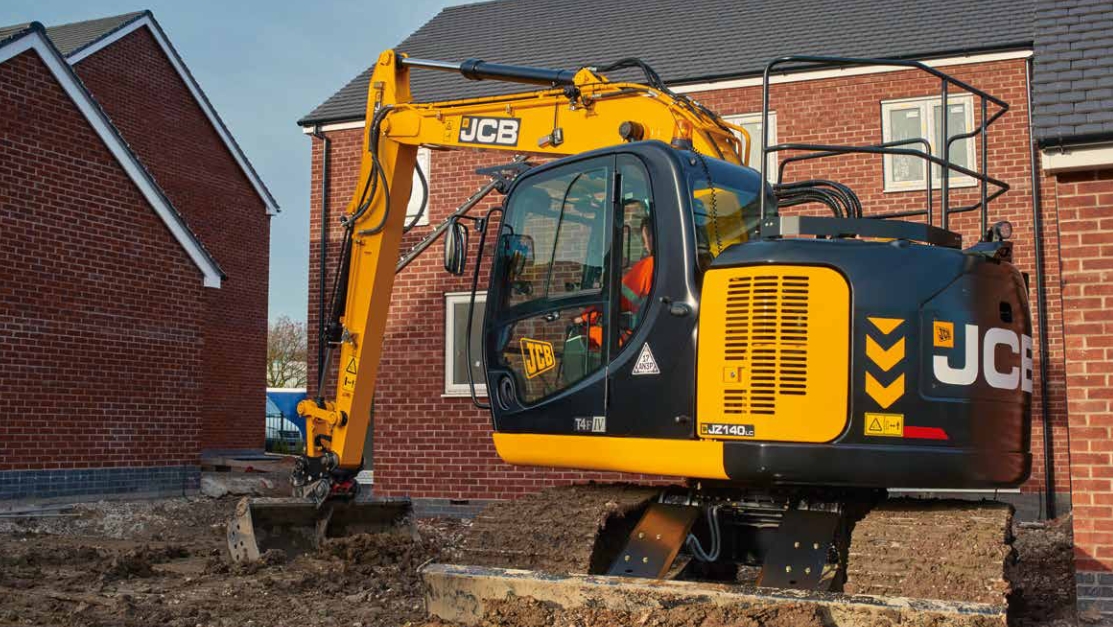

JCB JZ140 excavator specs (2014 - 2021)

Name: JCB JZ140 Crawler Excavators
Brand: JCB

JCB JZ140 is a crawler excavator manufactured from 2014 to 2021, with a weight of 15 tons and a track width of 500 mm. Its transpo…

JCB JZ140 is a crawler excavator manufactured from 2014 to 2021, with a weight of 15 tons and a track width of 500 mm. Its transport dimensions are 7.3 meters in length, 3.22 meters in width, and 2.5 meters in height. The machine has a dredging depth of 5.1 meters and a maximum horizontal reach of 7.9 meters. It features a bucket capacity of 0.35 cubic meters and is equipped with a blade.

JZ140

Years of manufacture: 2014—2021

Data sheet
Buy & Rent
Spare parts
Transport
Events & News

Technical specs - JZ140 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15 t

Transport length: 7.3 m

Transport width: 3.22 m

Transport height: 2.5 m

Bucket capacity: 0.35 m³

Undercarriage: LC

Track width: 500 mm

Boom: MB

Max. Reach horizontal: 7.9 m

Dredging depth: 5.1 m

Model series: JZ

Engine manuf.: JCB

Engine type: EcoMax 444 TCA

Engine power: 81 kW

Displacement: 4.4 l

No. of cylinders: 4

Cylinder bore x stroke: 103x132 mm

Emission level: Tier 4f

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: Yes
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No
