JZ140 JCB excavator specs & Dimensions (2014 - 2021)

JCB JZ140 is a Crawler Excavator manufactured from 2014 to 2021. It has a weight of 15 tons and a track width of 500 mm. The trans…

JCB JZ140 is a Crawler Excavator manufactured from 2014 to 2021. It has a weight of 15 tons and a track width of 500 mm. The transport dimensions are 7.3 meters in length, 3.22 meters in width, and 2.5 meters in height. The dredging depth is 5.1 meters, and the maximum horizontal reach is 7.9 meters. The bucket capacity is 0.35 cubic meters, and it is equipped with a blade.

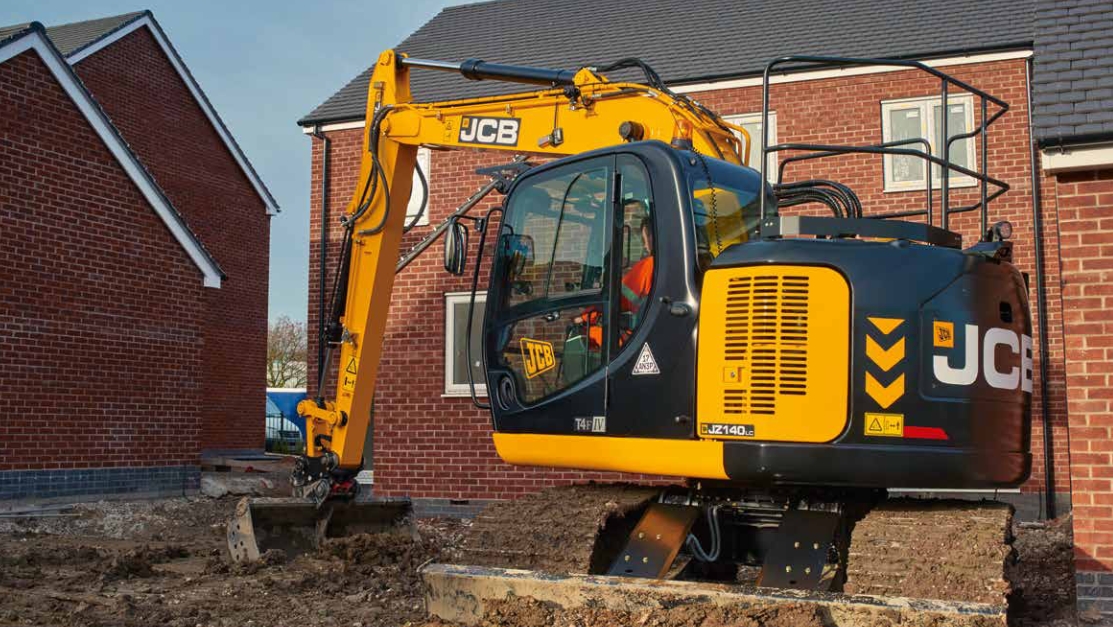

Crawler Excavators JCB JZ140

Visit JCB live at

Technical specs - JZ140 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15 t
Transport length
7.3 m
Transport width
3.22 m
Transport height
2.5 m
Bucket capacity
0.35 m³
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
7.9 m
Dredging depth
5.1 m
Model series
JZ
Engine manuf.
JCB
Engine type
EcoMax 444 TCA
Engine power
81 kW
Displacement
4.4 l
No. of cylinders
4
Cylinder bore x stroke
103x132 mm
Emission level
Tier 4f

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JZ140 FAQ

When was the JCB JZ140 manufactured?

The JCB JZ140 was manufactured from 2014 to 2021.

How much does the JCB JZ140 weigh?

The JCB JZ140 weighs 15 tons.

What are the transport dimensions of the JCB JZ140 crawler excavator?

The JCB JZ140 has a transport length of 7.3 meters, a transport width of 3.22 meters, and a transport height of 2.5 meters.

What are the undercarriage specifications of the JCB JZ140?

The JCB JZ140 has a long undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the JCB JZ140?

The JCB JZ140 has a dredging depth of 5.1 meters, a maximum horizontal reach of 7.9 meters, and features a monobloc boom.

What is the bucket capacity of the JCB JZ140 excavator?

The JCB JZ140 excavator has a bucket capacity of 0.35 cubic meters.

How much is a JCB JZ140 Crawler excavator (2014u20132021) worth?

The residual value of the JCB JZ140 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
