JZ 70 JCB excavator specs & Dimensions (2006 - 2013)

JCB JZ 70 is a Crawler Excavator manufactured from 2006 to 2013, with a weight of 7.5 tons. It features a track width of 600 mm, a…

JCB JZ 70 is a Crawler Excavator manufactured from 2006 to 2013, with a weight of 7.5 tons. It features a track width of 600 mm, a transport length of 5.42 meters, a transport width of 2.3 meters, and a transport height of 2.64 meters. The excavator has a tear-out force of 40 kN and is equipped with a blade.

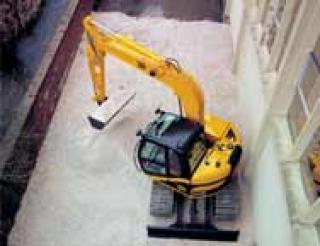

Crawler Excavators JCB JZ 70

Visit JCB live at

Technical specs - JZ 70 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.5 t
Transport length
5.42 m
Transport width
2.3 m
Transport height
2.64 m
Bucket capacity
0.5 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
6.81 m
Dredging depth
4.47 m
Tear-out force
40 kN
Model series
JZ
Engine manuf.
Isuzu
Engine type
A 4 JGI
Engine power
44 kW

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JZ 70 FAQ

When was the JCB JZ 70 manufactured?

The JCB JZ 70 was manufactured from 2006 to 2013.

How much does the JCB JZ 70 weigh?

The JCB JZ 70 weighs 7.5 tons.

What are the transport dimensions of the JCB JZ 70?

The JCB JZ 70 has a transport length of 5.42 meters, a transport width of 2.3 meters, and a transport height of 2.64 meters.

What are the undercarriage specifications of the JCB JZ 70?

The JCB JZ 70 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JZ 70?

The JCB JZ 70 has a dredging depth of 4.47 meters, a maximum horizontal reach of 6.81 meters, and features a monobloc boom.

What is the power rating of the JCB JZ 70?

The source data does not provide any power rating information for the JCB JZ 70.

What is the bucket capacity of the JCB JZ 70 excavator?

The JCB JZ 70 excavator has a bucket capacity of 0.5 cubic meters.

How much is a JCB JZ 70 Crawler excavator (2006u20132013) worth?

The residual value of the JCB JZ 70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
