JZ 140 LC JCB excavator specs & Dimensions (2010 - 2014)

JCB JZ 140 LC is a crawler excavator manufactured from 2010 to 2014, with a weight of 14.79 tons. It features a track width of 500…

JCB JZ 140 LC is a crawler excavator manufactured from 2010 to 2014, with a weight of 14.79 tons. It features a track width of 500 mm, a transport length of 7.33 meters, a transport width of 2.49 meters, and a transport height of 3.24 meters.

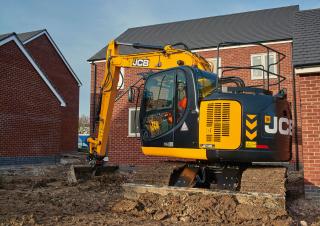

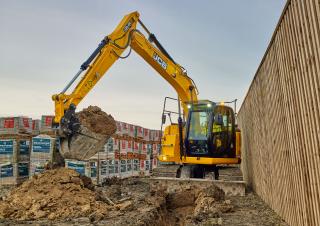

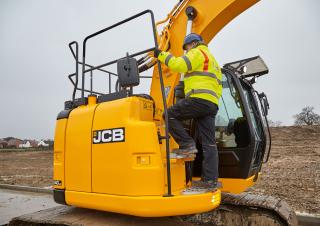

Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC
Crawler Excavators JCB JZ 140 LC

Visit JCB live at

Technical specs - JZ 140 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.79 t
Transport length
7.33 m
Transport width
2.49 m
Transport height
3.24 m
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.79 m
Dredging depth
6.05 m
Model series
JZ
Engine manuf.
Isuzu
Engine type
4JJIX
Engine power
73 kW
Displacement
2.99 l
Revolutions at max torque
2000 rpm
Emission level
III

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JZ 140 LC FAQ

When was the JCB JZ 140 LC manufactured?

The JCB JZ 140 LC was manufactured from 2010 to 2014.

How much does the JCB JZ 140 LC weigh?

The JCB JZ 140 LC weighs 14.79 tons.

What are the transport dimensions of the JCB JZ 140 LC?

The JCB JZ 140 LC has a transport length of 7.33 meters, a transport width of 2.49 meters, and a transport height of 3.24 meters.

What are the undercarriage specifications of the JCB JZ 140 LC?

The JCB JZ 140 LC has a long undercarriage and a track width of 500 mm.

What are the excavation performance specifications of the JCB JZ 140 LC?

The JCB JZ 140 LC has a dredging depth of 6.05 meters, a maximum horizontal reach of 8.79 meters, and is equipped with a monobloc boom.

How much is a JCB JZ 140 LC Crawler excavator (2010u20132014) worth?

The residual value of the JCB JZ 140 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Quotation mark

JCB JZ 140 LC user from Norway

I am just using my machine as a hobbyfarmer. So I have only had one machine before. But this one is powerful quick and have all needed option for using rotor, hammer etc
