JS370 NLC JCB excavator specs & Dimensions (2022 - 2026)

JCB JS370 NLC is a crawler excavator manufactured since 2022. It has a weight of 36.301 tons and a track width of 600 mm. The tran…

JCB JS370 NLC is a crawler excavator manufactured since 2022. It has a weight of 36.301 tons and a track width of 600 mm. The transport dimensions are 11.384 meters in length, 2.99 meters in width, and 3.61 meters in height. The dredging depth is 6.25 meters, and the maximum horizontal reach is 9.85 meters. The bucket width is 1.8 meters, with a bucket capacity ranging from 0.86 cubic meters to 1.93 cubic meters.

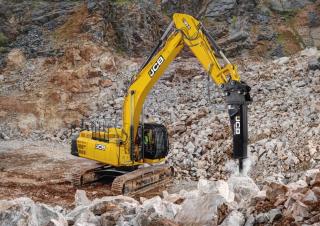

Crawler Excavators JCB JS370 NLC

Visit JCB live at

Technical specs - JS370 NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.301 t
Transport length
11.384 m
Transport width
2.99 m
Transport height
3.61 m
Bucket capacity min.
0.86 m³
Bucket capacity max.
1.93 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.85 m
Dredging depth
6.25 m
Bucket width
1.8 m
Model series
JS
Engine manuf.
JCB
Engine type
DieselMax 672
Engine power
210 kW
Displacement
7.2 l
No. of cylinders
6
Emission level
Tier 2

More technical details, like: bucket capacity, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS370 NLC FAQ

When was the JCB JS370 NLC manufactured?

The JCB JS370 NLC was first produced in 2022.

How much does the JCB JS370 NLC weigh?

The JCB JS370 NLC weighs 36.3 tons.

What are the transport dimensions of the JCB JS370 NLC crawler excavator?

The JCB JS370 NLC has a transport length of 11.38 meters, a transport width of 2.99 meters, and a transport height of 3.61 meters.

What are the undercarriage specifications of the JCB JS370 NLC?

The JCB JS370 NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS370 NLC?

The JCB JS370 NLC has a dredging depth of 6.25 meters, a maximum horizontal reach of 9.85 meters, and is equipped with a monobloc boom.

What are the specifications of the bucket on the JCB JS370 NLC crawler excavator?

The JCB JS370 NLC crawler excavator has a bucket with a maximum capacity of 1.93 cubic meters, a minimum capacity of 0.86 cubic meters, and a width of 1.8 meters.

How much is a JCB JS370 NLC Crawler excavator (2022u20132025) worth?

The residual value of the JCB JS370 NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
