JS330NLC XD JCB excavator specs & Dimensions (2017 - 2021)

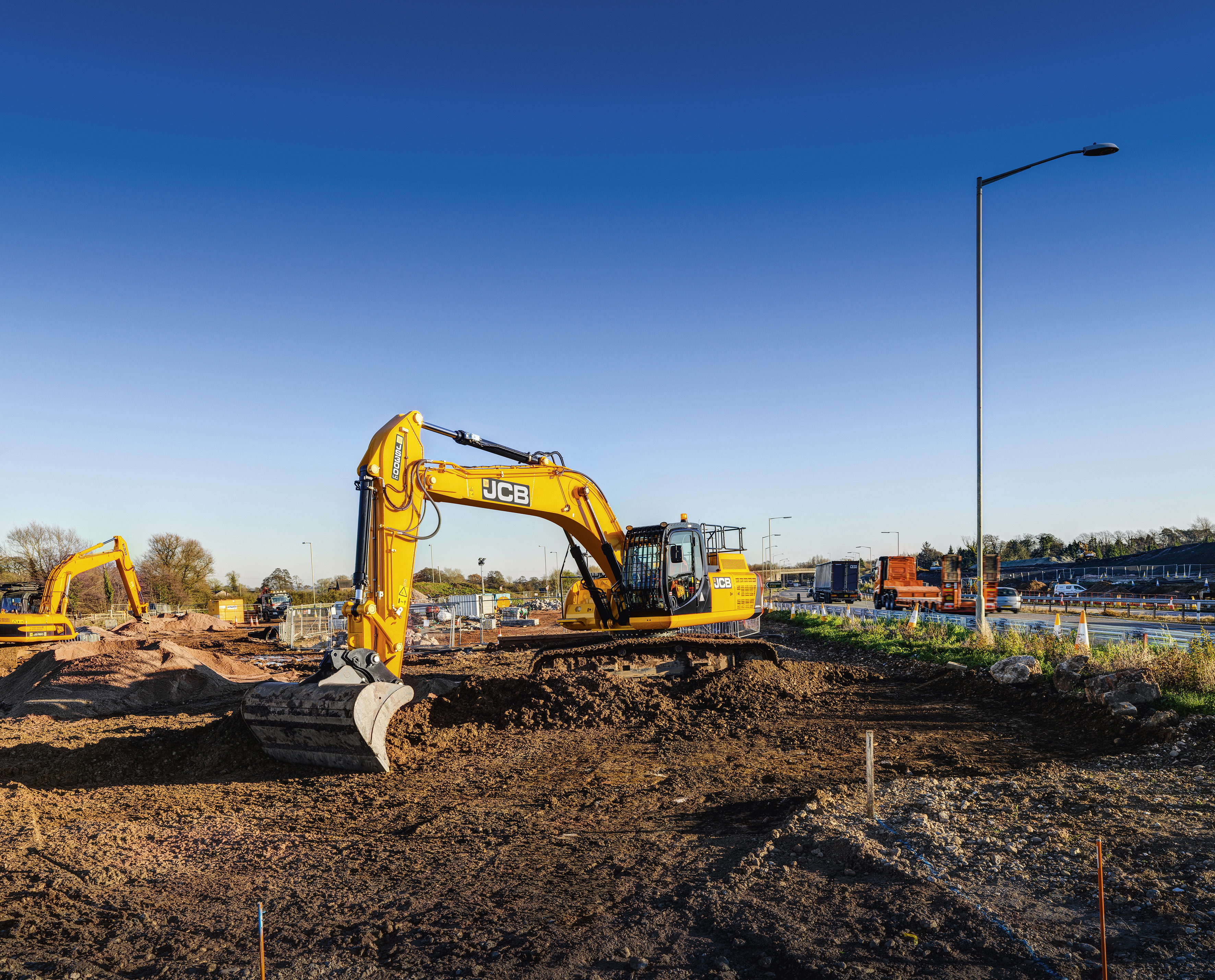

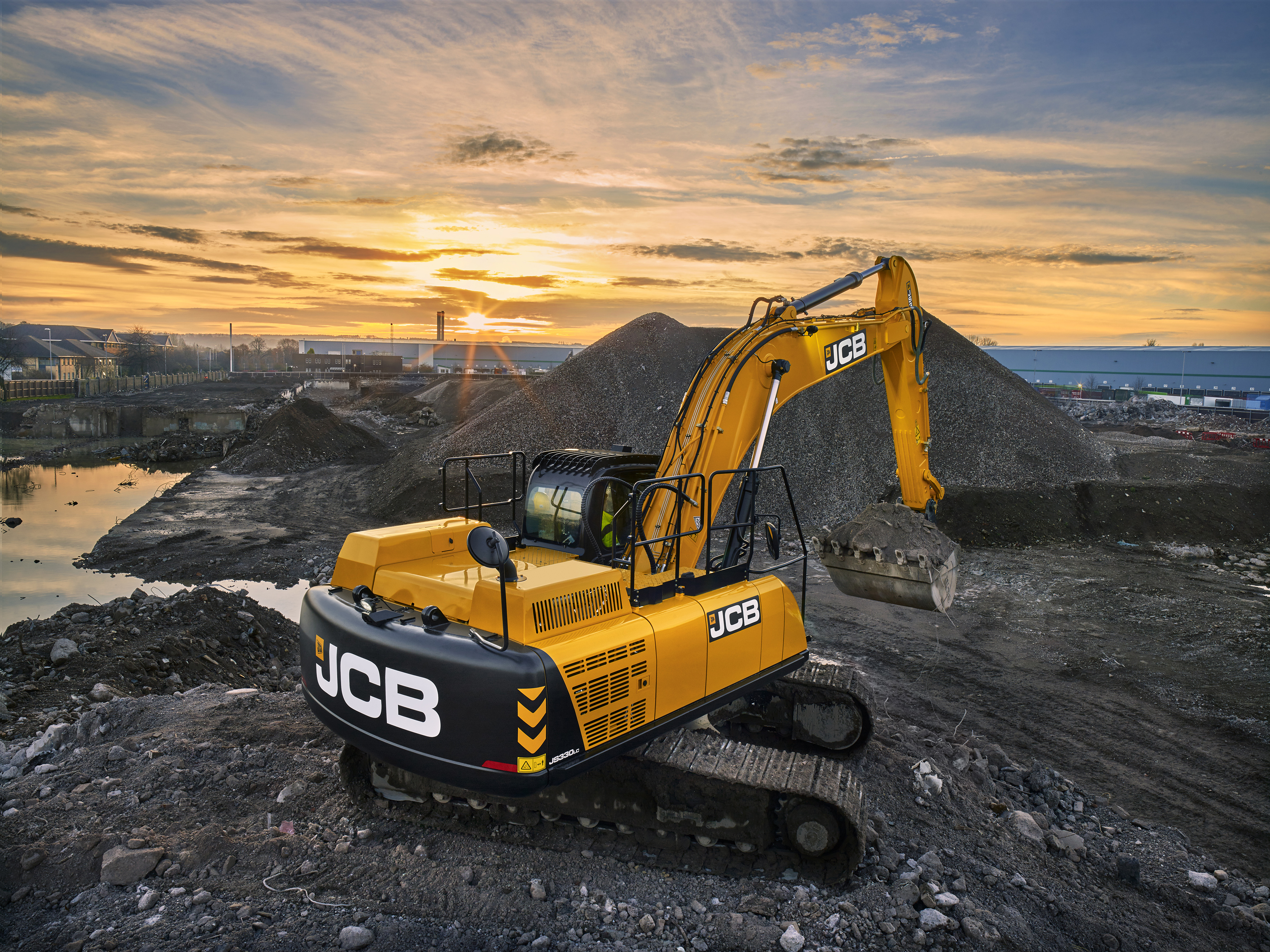

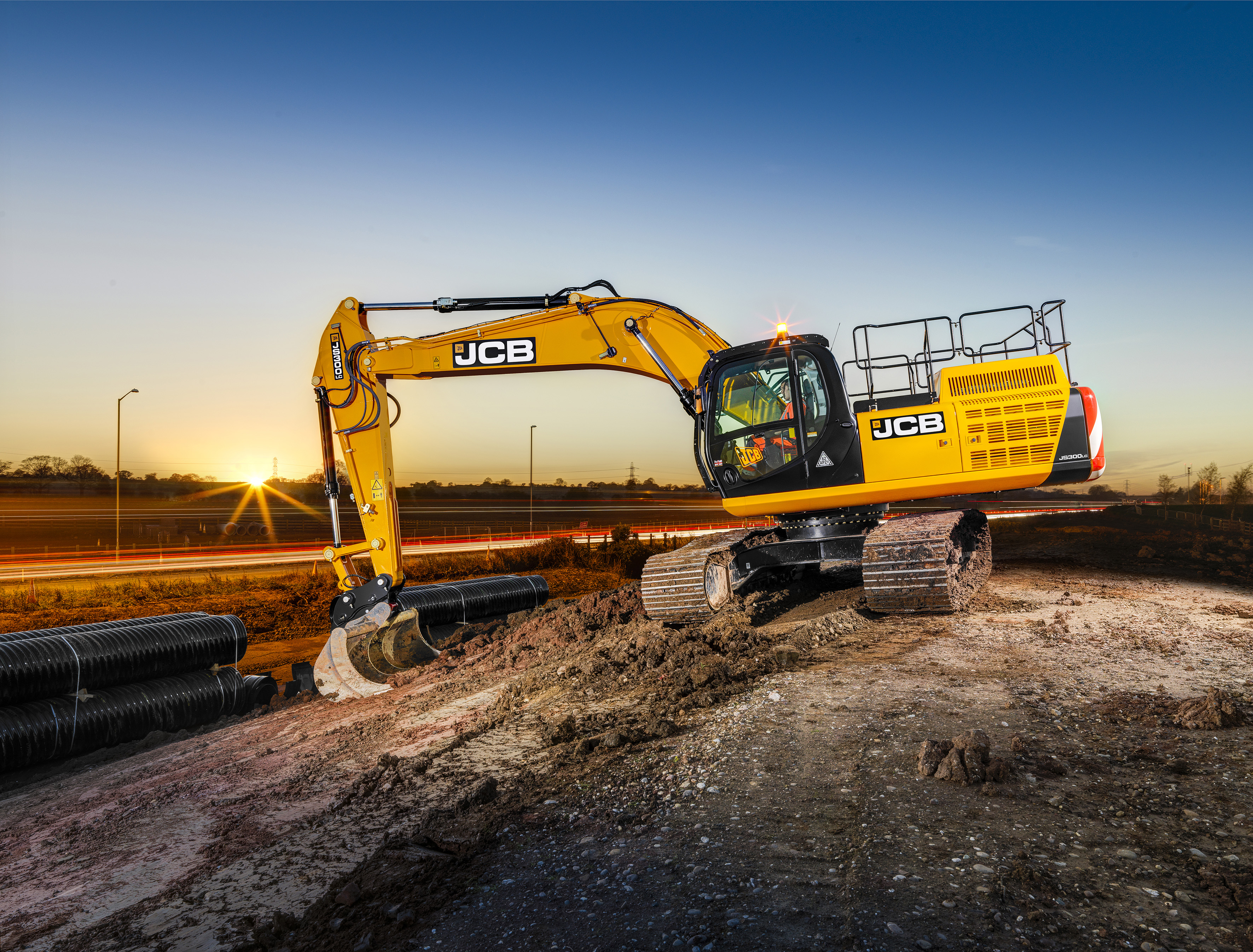

JCB JS330NLC XD is a Crawler Excavator manufactured from 2017 to 2021. It has a weight of 31.14 t and a track width of 600 mm. The…

JCB JS330NLC XD is a Crawler Excavator manufactured from 2017 to 2021. It has a weight of 31.14 t and a track width of 600 mm. The transport dimensions are 10.758 m in length, 3.2 m in width, and 3.375 m in height. The excavator features a tear-out force of 247.3 kN, a dredging depth of 6.477 m, and a maximum horizontal reach of 9.871 m. It comes with a bucket width of 1.7 m and a bucket capacity of 1.9 m³. The machine is equipped with air conditioning.

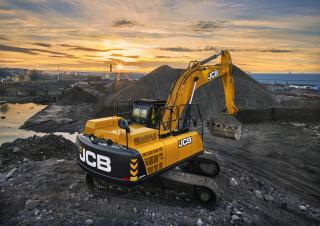

Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD
Crawler Excavators JCB JS330NLC XD

Visit JCB live at

Technical specs - JS330NLC XD JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.14 t
Transport length
10.758 m
Transport width
3.2 m
Transport height
3.375 m
Bucket capacity
1.9 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.871 m
Dredging depth
6.477 m
Tear-out force
247.3 kN
Bucket width
1.7 m
Model series
JS
Engine manuf.
MTU
Engine type
6 R 1000
Engine power
210 kW
Displacement
7.7 l
No. of cylinders
6
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS330NLC XD FAQ

When was the JCB JS330NLC XD manufactured?

The JCB JS330NLC XD was manufactured from 2017 to 2021.

How much does the JCB JS330NLC XD weigh?

The JCB JS330NLC XD weighs 31.14 tons.

What are the transport dimensions of the JCB JS330NLC XD?

The JCB JS330NLC XD has a transport length of 10.76 meters, a transport width of 3.2 meters, and a transport height of 3.38 meters.

What are the undercarriage specifications of the JCB JS330NLC XD?

The JCB JS330NLC XD has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS330NLC XD?

The JCB JS330NLC XD has a dredging depth of 6.477 meters, a maximum horizontal reach of 9.871 meters, and features a monobloc boom.

What is the tear-out force of the JCB JS330NLC XD?

The JCB JS330NLC XD has a tear-out force of 247.3 kN.

What are the specifications of the primary work tool on the JCB JS330NLC XD?

The primary work tool of the JCB JS330NLC XD has a bucket capacity of 1.9 cubic meters and a bucket width of 1.7 meters.
