JS330 XD JCB excavator specs & Dimensions (2010 - 2017)

JCB JS330 XD is a crawler excavator manufactured from 2010 to 2017, with a weight of 32.03 tons. It features a track width of 600 …

JCB JS330 XD is a crawler excavator manufactured from 2010 to 2017, with a weight of 32.03 tons. It features a track width of 600 mm, a transport length of 11.02 meters, a transport width of 2.99 meters, and a transport height of 3.36 meters. The machine has a tear-out force of 152 kN.

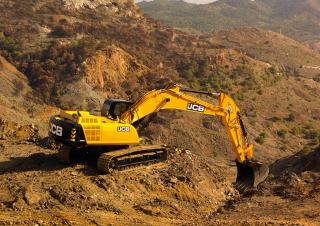

Crawler Excavators JCB JS330 XD

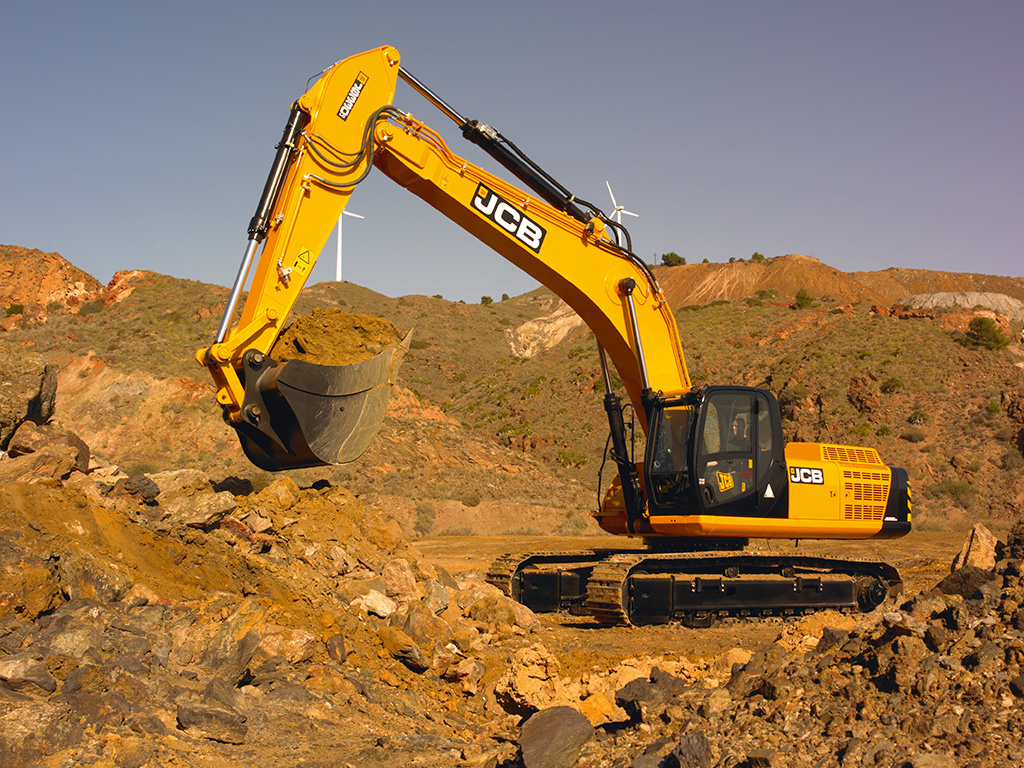

Crawler Excavators JCB JS330 XD

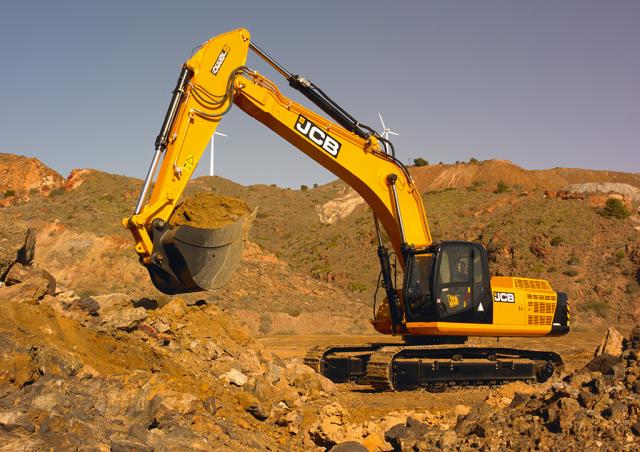

Crawler Excavators JCB JS330 XD
Crawler Excavators JCB JS330 XD
Crawler Excavators JCB JS330 XD
Crawler Excavators JCB JS330 XD

Visit JCB live at

Technical specs - JS330 XD JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32.03 t
Transport length
11.02 m
Transport width
2.99 m
Transport height
3.36 m
Bucket capacity
1.61 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.13 m
Dredging depth
7.93 m
Tear-out force
152 kN
Bucket width
1.6 m
Model series
JS
Engine manuf.
Isuzu
Engine type
6 HKIX
Engine power
210 kW
Displacement
7.8 l
Emission level
4i/3b

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS330 XD FAQ

When was the JCB JS330 XD manufactured?

The JCB JS330 XD was manufactured from 2010 to 2017.

How much does the JCB JS330 XD weigh?

The JCB JS330 XD weighs 32.03 tons.

What are the transport dimensions of the JCB JS330 XD crawler excavator?

The JCB JS330 XD has a transport length of 11.02 meters, a transport width of 2.99 meters, and a transport height of 3.36 meters.

What is the track width of the JCB JS330 XD's undercarriage?

The JCB JS330 XD has a track width of 600 mm.

What are the excavation performance specifications of the JCB JS330 XD?

The JCB JS330 XD has a dredging depth of 7.93 meters, a maximum horizontal reach of 11.13 meters, and features a monobloc boom.

What is the tear-out force of the JCB JS330 XD, the only available power-related specification?

The JCB JS330 XD has a tear-out force of 152 kN. No other power ratings are provided in the available data.

What are the bucket specifications of the JCB JS330 XD excavator?

The JCB JS330 XD has a bucket capacity of 1.61 cubic meters and a bucket width of 1.6 meters.

How much is a JCB JS330 XD Crawler excavator (2010u20132017) worth?

The residual value of the JCB JS330 XD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
