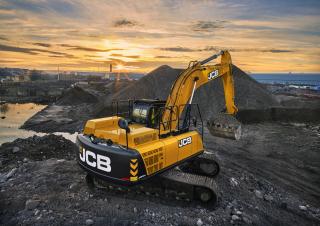

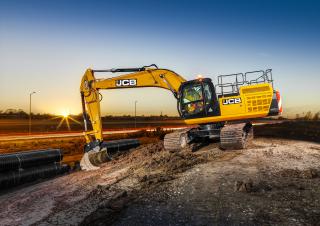

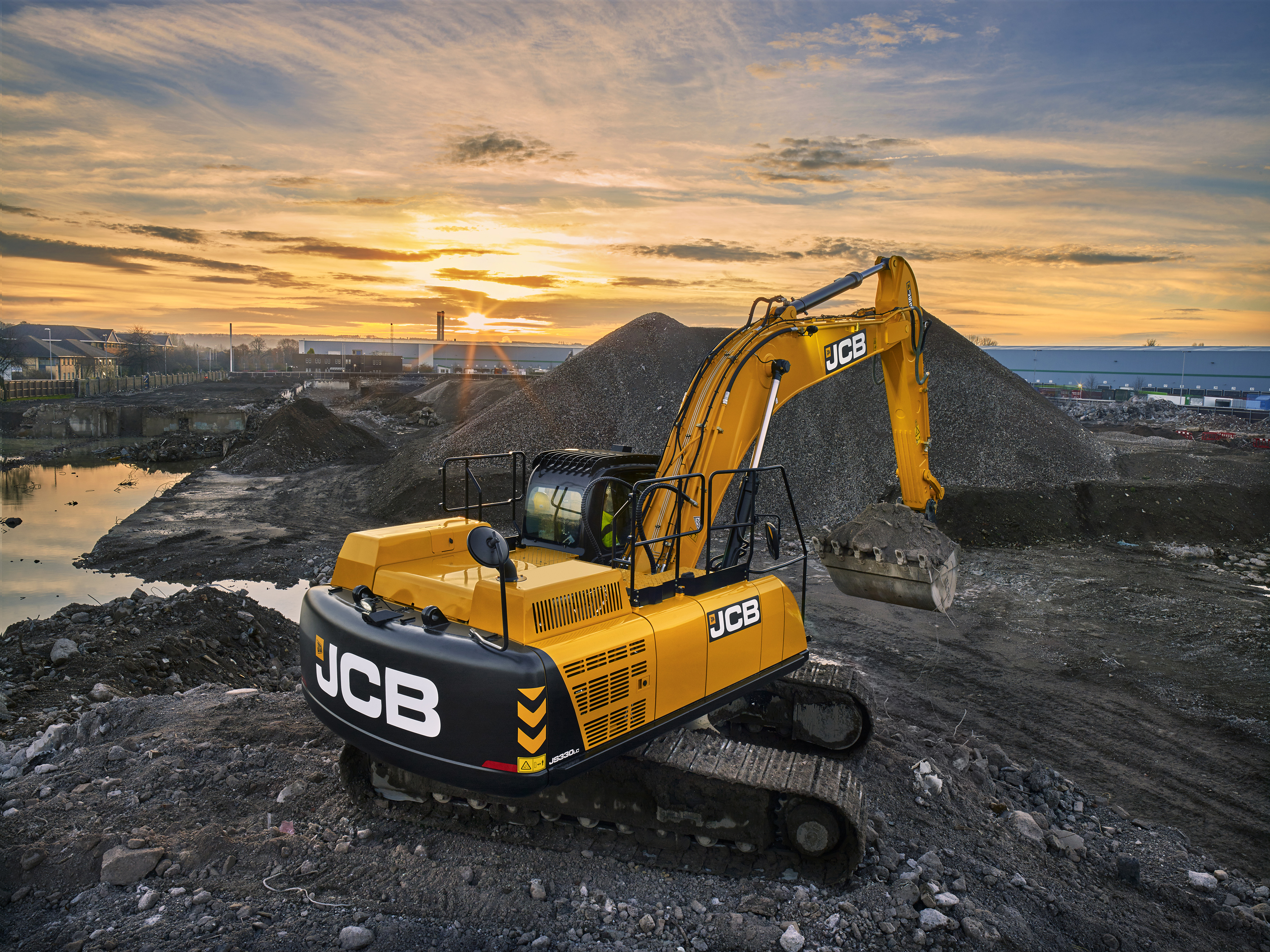

JS330 NLC ME JCB excavator specs & Dimensions (2017 - 2021)

Componentry

JCB JS330/370s boast the best components in the industry, including a 6-cylinder, 210kW MTU engine, Berco running gear, Kawasaki pumps and Kayaba main control valves. The MTU 6-cylinder 210kW engine uses a multi-stage fuel filtration system. This consists of a remote primary filter with built in water separator and secondary engine mounted filter. This system protects against a wide range of types of contaminants in fuel. A fuel shut off tap is fitted as standard along with a self priming lift pump for easy and simple servicing.

Efficiency

Advanced hydraulic technology ensures that the machines always starts in idle for maximum fuel efficiency, contributing to fuel savings. The MTU 7.7-litre engine produces a formidable 210kW of power and 1150 Nm of torque, and works in harmony with the SMART control electronics to deliver smooth high torque power even at low RPM.

Stability, hydraulics and attachments

JCB’s innovative hydraulic regeneration system means oil is recycled across the cylinders for faster cycle times and reduced fuel consumption. A JCB JS330/370 has cushioned boom and dipper ends to prevent shock loadings, protect your machine and increase operator comfort. JCB SMART Control gives access to variable working modes. The manually selectable High Plus mode offers great efficiency, with 5% gains over outgoing models. For ultra versatility, JCB offers a full list of auxiliary pipework options including hammer, auxiliary, merged and low flow.

Comfortably in control

The 7” colour multi-function display is easy to read in all light conditions, provides instant operational information, and has a customisable home screen. JCB’s new basic tool select system (fitted as standard) allows the operator to set up the single direction auxiliary and hammer circuit to match the flow requirements. The selected flow is achieved by automatically adjusting the engine rpm when the hydraulic service is operated. You can easily check your JS330/370’s DEF usage and level via the in-cab LCD monitor, which also warns you if you’re running low.

Easy maintenance

The air filter on a JS330/370 is easily accessible, and a double-element construction simplifies cleaning. The latest Powercore air filter is fitted as standard, so cleaning intervals are longer than ever. The filters on a JCB JS330/370 (engine oil, hydraulic oil and fuel) are centrally located for fast, easy servicing. By reducing the number of fuel filters from three to two, we’ve cut the amount of routine maintenance you need to do on your excavator. Unlike many Tier 4 Final excavators, JCB JS330s and JS370s don’t require a diesel particulate filter (DPF). This eliminates the need for costly servicing or replacement of the filter. No filter also means no regeneration cycles, preventing any productivity constraints. Filling your JS330/370 with DEF fluid is easily accessed via the upper structure, and you can also access all main DEF components from there too.

Durability and Reliability

Before you buy an excavator, you need to know it’s going to be tough enough to perform any job you ask of it. Fortunately, with a JCB JS330/370, strength and durability come as standard.

Boom and Dipper

A JCB JS330/370’s reinforced boom and dipper is made of high tensile strength steel, with internal baffle plates for long life durability. In addition, we fit heavy-duty wear strips at the dipper end for increased durability. Our advanced manufacturing and assembly processes produce high precision and quality assembled components.

Structural Strength

The high-strength undercarriage of a JCB JS330/370 uses a fully-welded X frame construction for long-term durability even in the most demanding applications. A closed box section revolving frame increases strength and reduces stress. It is also highly resistant to impact damage. The JS330/370’s high-strength rigid upper frame provides maximum durability and support. Our stiff, durable door design gives great strength and rigidity.

Visibly better

A 70/30 front screen split gives JCB JS330/370s excellent front visibility. A clear view of the front right track provides easy, safe trench digging and manoeuvring. An innovative low-level bonnet provides excellent rearward visibility.

The working environment

The JS330/370 creates a quieter working environment inside and out. Therefore, you can use the machine at any location, any time. Our cabs use 6 viscous rubber mounts to minimise noise and vibration. JCB’s climate control has been fully revised and is now standard, and offers a precisely controlled cab temperature with fresh or recirculated air. Demisting/defrosting functions keep the front window clear. There’s a spacious luggage tray behind the operator’s seat. A large floor area with large high grip pedals and t-bar levers gives easy and precise tracking. The Plus Pack is available as an option, and delivers a variety of enhancements to improve the operator experience.
