JS330 NLC JCB excavator specs & Dimensions (2022 - 2026)

JCB JS330 NLC is a crawler excavator manufactured since 2022, with a weight of 32.029 tons. It features a track width of 600 mm, a…

JCB JS330 NLC is a crawler excavator manufactured since 2022, with a weight of 32.029 tons. It features a track width of 600 mm, a transport length of 11.203 meters, a transport width of 2.99 meters, and a transport height of 3.61 meters. The machine has a dredging depth of 6.37 meters and a maximum horizontal reach of 9.96 meters. The bucket width is 1.8 meters, with a bucket capacity ranging from 0.85 cubic meters to 1.845 cubic meters.

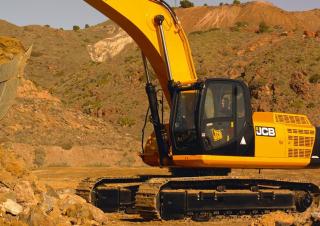

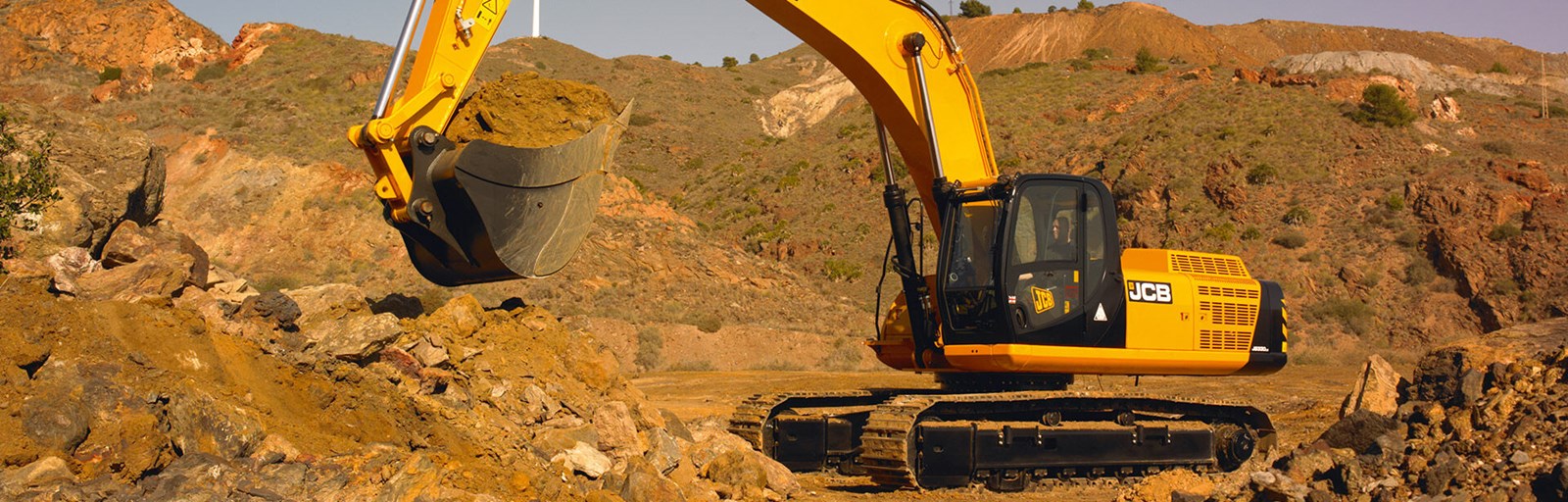

Crawler Excavators JCB JS330 NLC
Crawler Excavators JCB JS330 NLC
Crawler Excavators JCB JS330 NLC
Crawler Excavators JCB JS330 NLC

Visit JCB live at

Technical specs - JS330 NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32.029 t
Transport length
11.203 m
Transport width
2.99 m
Transport height
3.61 m
Bucket capacity min.
0.85 m³
Bucket capacity max.
1.845 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.96 m
Dredging depth
6.37 m
Bucket width
1.8 m
Model series
JS
Engine manuf.
JCB
Engine type
DieselMax 672
Engine power
210 kW
Displacement
7.2 l
No. of cylinders
6
Emission level
Tier 2

More technical details, like: bucket capacity, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS330 NLC FAQ

When was the JCB JS330 NLC manufactured?

The JCB JS330 NLC was first produced in 2022.

How much does the JCB JS330 NLC weigh?

The JCB JS330 NLC weighs 32.03 tons.

What are the transport dimensions of the JCB JS330 NLC crawler excavator?

The JCB JS330 NLC has a transport length of 11.2 meters, a transport width of 2.99 meters, and a transport height of 3.61 meters.

What are the undercarriage specifications of the JCB JS330 NLC?

The JCB JS330 NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS330 NLC?

The JCB JS330 NLC has a dredging depth of 6.37 meters, a maximum horizontal reach of 9.96 meters, and is equipped with a Monobloc boom.

What are the bucket specifications of the JCB JS330 NLC excavator?

The JCB JS330 NLC excavator has a bucket with a maximum capacity of 1.85 cubic meters, a minimum capacity of 0.85 cubic meters, and a width of 1.8 meters.
